NATIONAL STANDARDS
This product is categorized as a “Below-the-Hook Lifting Device” (BTH lifters). ASME standard
B30.20 (the “Standard”) applies to BTH lifters. You should acquire a copy of the latest version of the
Standard before putting the lifter into service. Follow all use and maintenance/care instructions
provided in the Standard as well as all other provisions for owners and users. If content in this manual
conflicts with any recommendations or mandatory provision(s) in the Standard, apply the provision(s)
from the Standard. Vestil encourages you to immediately contact TECHNICAL SERVICE if you
discover any conflicts.
RECORD OF SATISFACTORY CONDITION
Record the condition of the lifter before putting it into regular service. Measure the length and width
of the shackle. Record your measurements. Thoroughly photograph the unit from multiple angles.
Include close range photos of all labeling, the lifting shackle, the lifting arm, fasteners (pins, bolts, nuts,
etc.), cable attachment points, and welds. Collate all photographs and writings into a single file. Mark
the file appropriately to identify it. This record is documentation of the lifter in satisfactory condition.
Compare the results of all inspections to this record to determine whether the unit is in satisfactory
condition. If the lifter is not in satisfactory condition, repair it before returning it to service. Purely
cosmetic changes, like damaged paint/powdercoat, do not constitute changes from satisfactory
condition. However, touchup paint should be applied to all affected areas as soon as cosmetic damage
occurs to prevent rusting and corrosion. If left unaddressed, rusting/corrosion will alter the lifter from
satisfactory condition and could make it unsafe to use.
LOAD TESTS
After creating a RECORD OF SATISFACTORY CONDITION and before using the lifter for the first
time, a qualified person should conduct a load test. The test load should be 125% of the rated load of
the lifter. The rated load of all CYL-P-LUG lifters is 800 pounds (363.6kg), so the test load should be
1000 pounds (454.5kg). Raise the lifter until it is suspended. Return the lifter to the ground and unload
it. Perform a Monthly Inspection as described in INSPECTIONS AND MAINTENANCE
(below). The
lifter must undergo load testing immediately after it is repaired, modified, or altered.

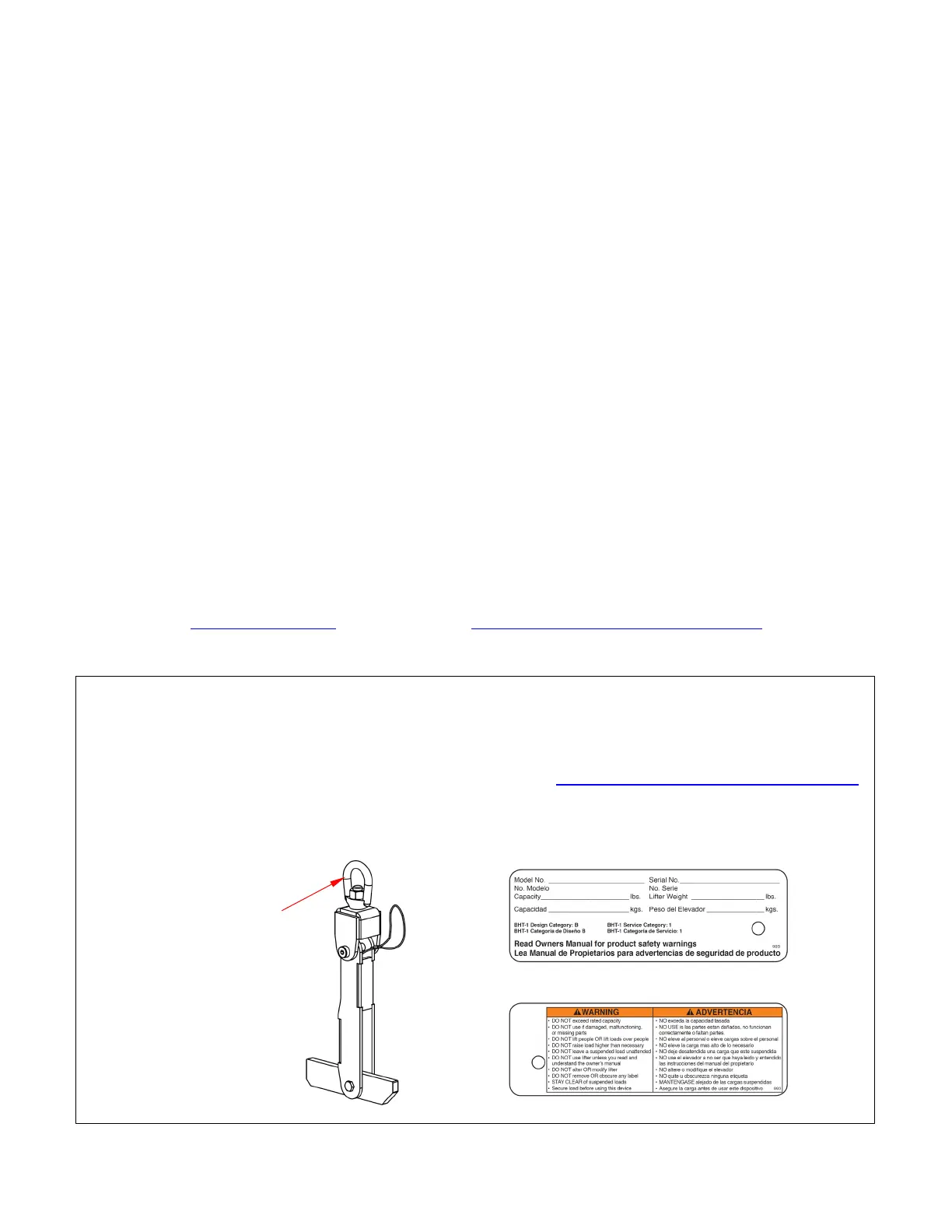

LABELING DIAGRAM
The unit should be labeled as shown in the diagram. However, label content and location are
subject to change so your product might not be labeled exactly as shown. Replace all labels that are
damaged, missing, or not easily readable (e.g. faded). To order replacement labels, contact the
technical service and parts department online at http://www.vestilmfg.com/parts_info.htm.
Alternatively, you may request replacement parts and/or service by calling (260) 665-7586 and asking
the operator to connect you to the Parts Department.
Tag 993 attached to
shackle with cable tie
Tag 993 obverse side
Tag 993 reverse side
