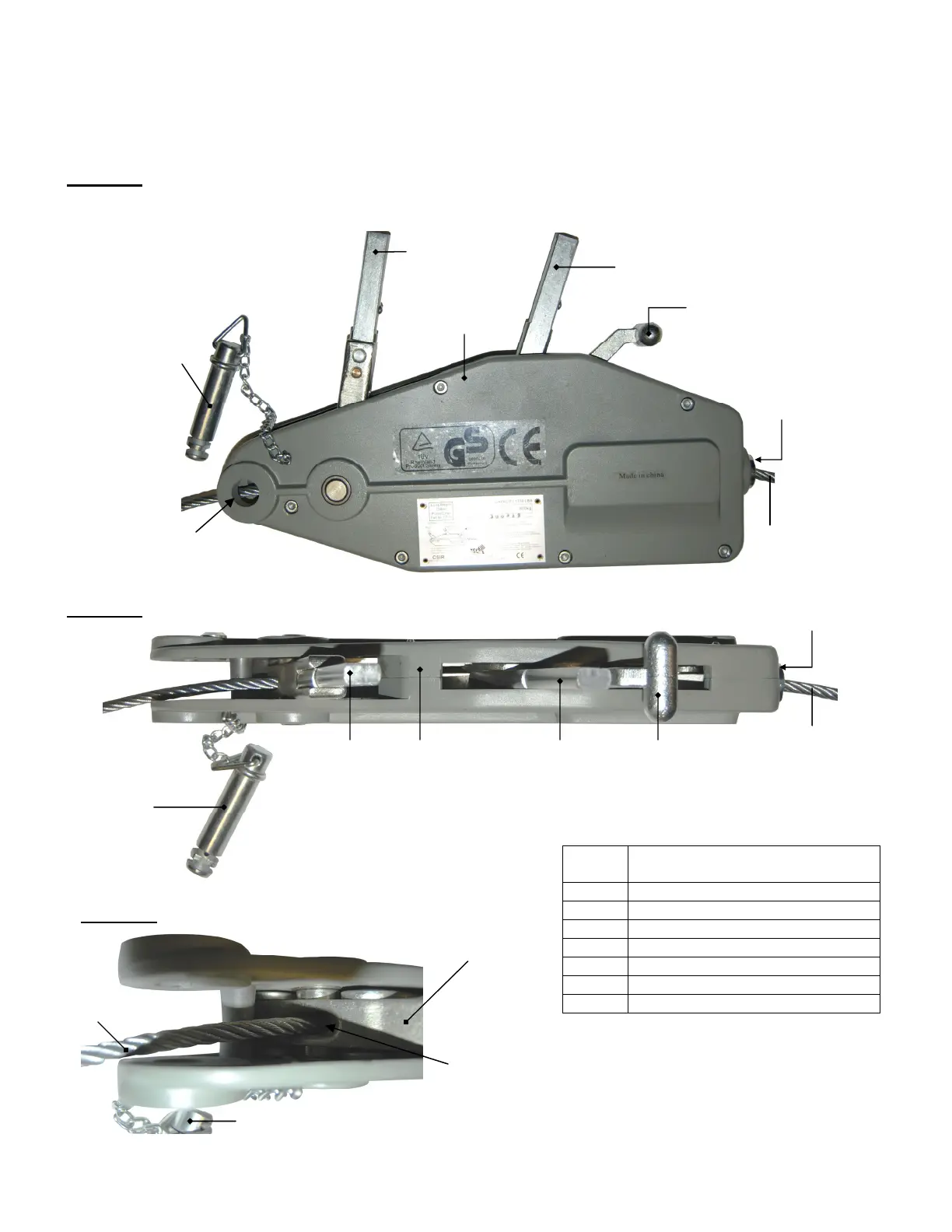

Labeled Photographs
**Note: Vestil does NOT provide replacement parts for this product. The following diagram is solely intended to clarify
terms that appear in the Use (p. 5-6) and Maintenance Instructions (p. 6-8).**
FIG. 1A: Side View
FIG. 1B: Top View
Shaft linking collar
E
D
B
C
F
A
G
F
G
A
B C D E
I
TEM
LETTER
D
ESCRIPTION
A Mounting pin
B Forward ratchet lever
C Housing (2 halves)
D Reverse ratchet lever
E Cable release lever
F Cable guide
G 5/16 in. cable
FIG. 1C: View of Cable Opening
A
B
Opening for cable through forward ratcheting lever
Openings for mounting pin
G
