ASSEMBLING THE LADDER
This crossover ladder is shipped in a disassembled state. Fasten each of the stairway segments to the
platform/deck before installing the handrails. When assembly is finished, anchor the ladder to the ground. Numbers
in parentheses correspond to part numbers in the exploded views on pages 6, 8, 10, 12, 14, and 16.

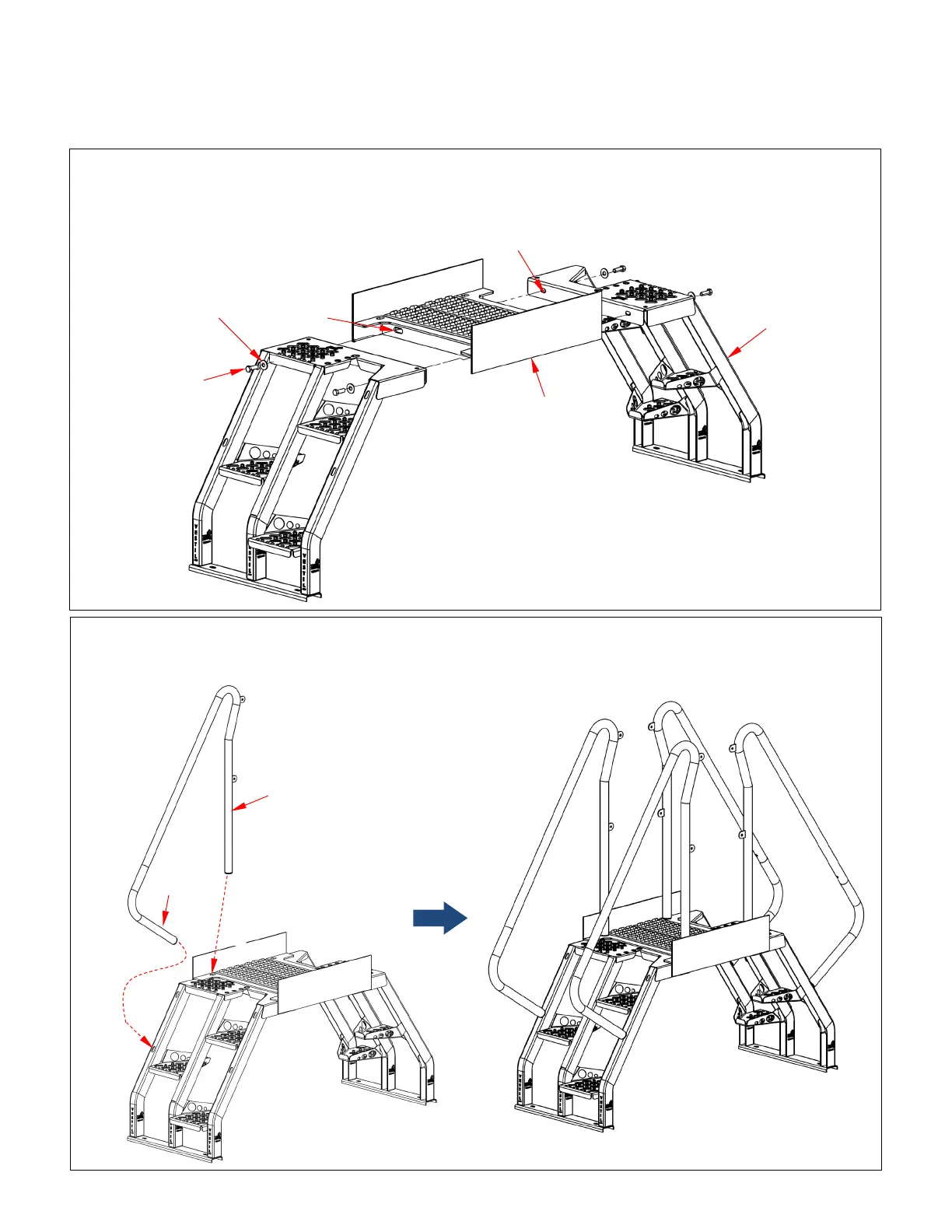

STEP 1: Attach the stairways to the platform/deck with
1
/
2
”-13 hardware. There are 2 bolt holes at the top of each
stairway and 2 bolt holes on each side of the platform. Put a flat washer (33012) onto 4 bolts (11209). Insert the
bolts through the bolt holes at the top of the stairways and through the matching holes in the platform. Then apply
another flat washer (33012) and a lock nut (37030) to the end of each bolt. Tighten the lock nuts.
STEP 2: Attach upper handrails to the stairways with bolts (11205), lock washers (33625), and flat washers
(33011). Put a lock washer and then a flat washer on each of 4 bolts. Insert the bolts through the bolt holes and
wind then into the bottoms of handrail posts. Tighten the connections.
Bolt hole
in platform
Platform
Stairway
Bolt hole in stairway
Bolt (11209)
Washer (33012)
Handrail
post
Handrail
post
NOTE: Instructions for COLA-5;
COLA-6; COLA-7 on following page.
