Upper
handrail

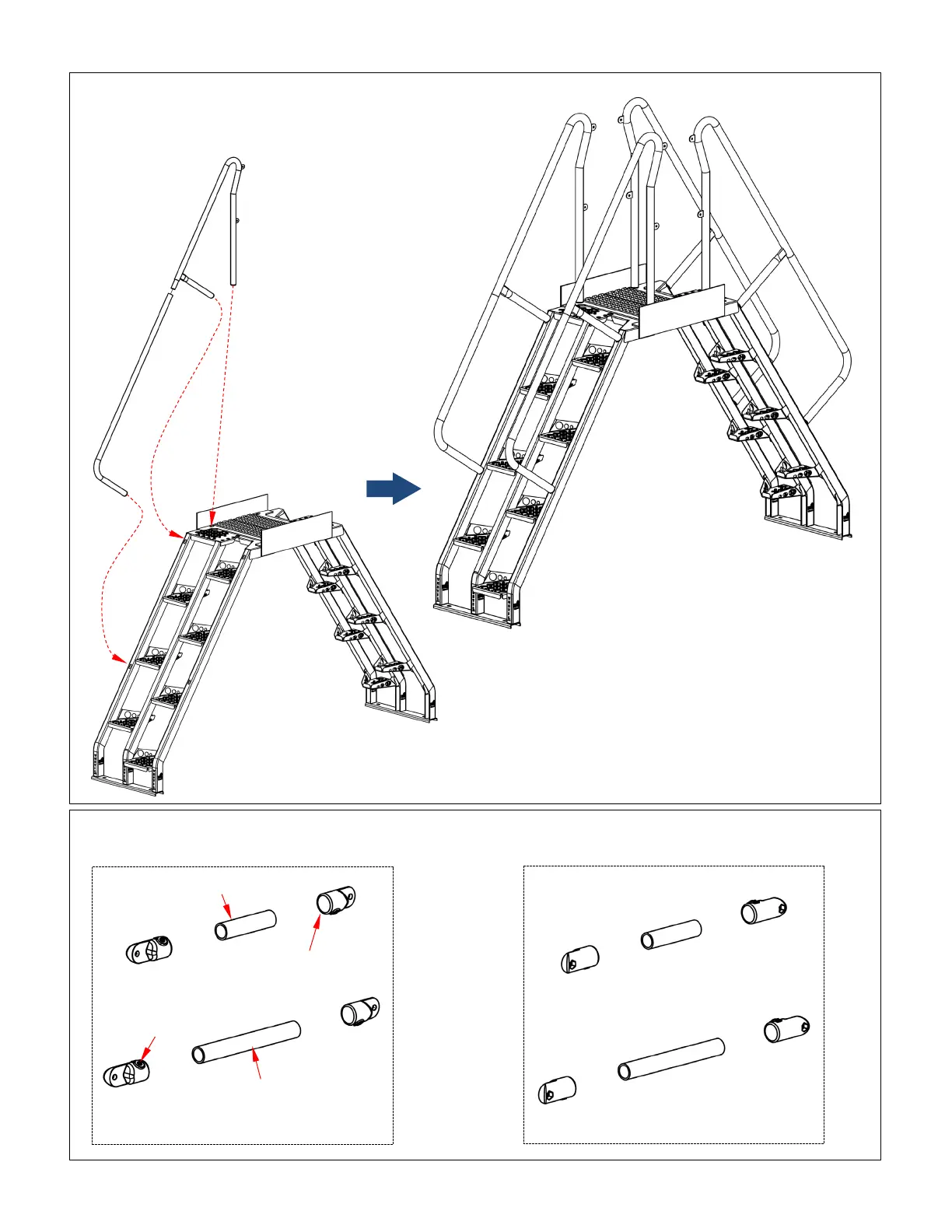

STEP 2: COLA-5, COLA-6, and COLA-7 models have
upper and lower handrails. Before making the attachments
shown in this diagram, slide a lower handrail onto the
tapered end of the upper handrail.
Lower
handrail
Upper
handrail
STEP 3: Press a handrail coupler (“pipe end” 44-516-016) onto each end of the top and middle handrails. Tighten
the
3
/
8
”-16x
3
/
8
” hex socket set screw in each coupler against the (top or middle) rail with a
3
/
8
” Allen wrench.
Top handrail
Pipe end
Middle handrail
Handrails for left side of platform/deck
Handrails for left side of platform/deck
