TABLE OF CONTENTS Rev. 1/14/2025 COL-AL, MANUAL
TABLE OF CONTENTS Copyright 2024 Vestil Manufacturing Co. Page 3 of 24

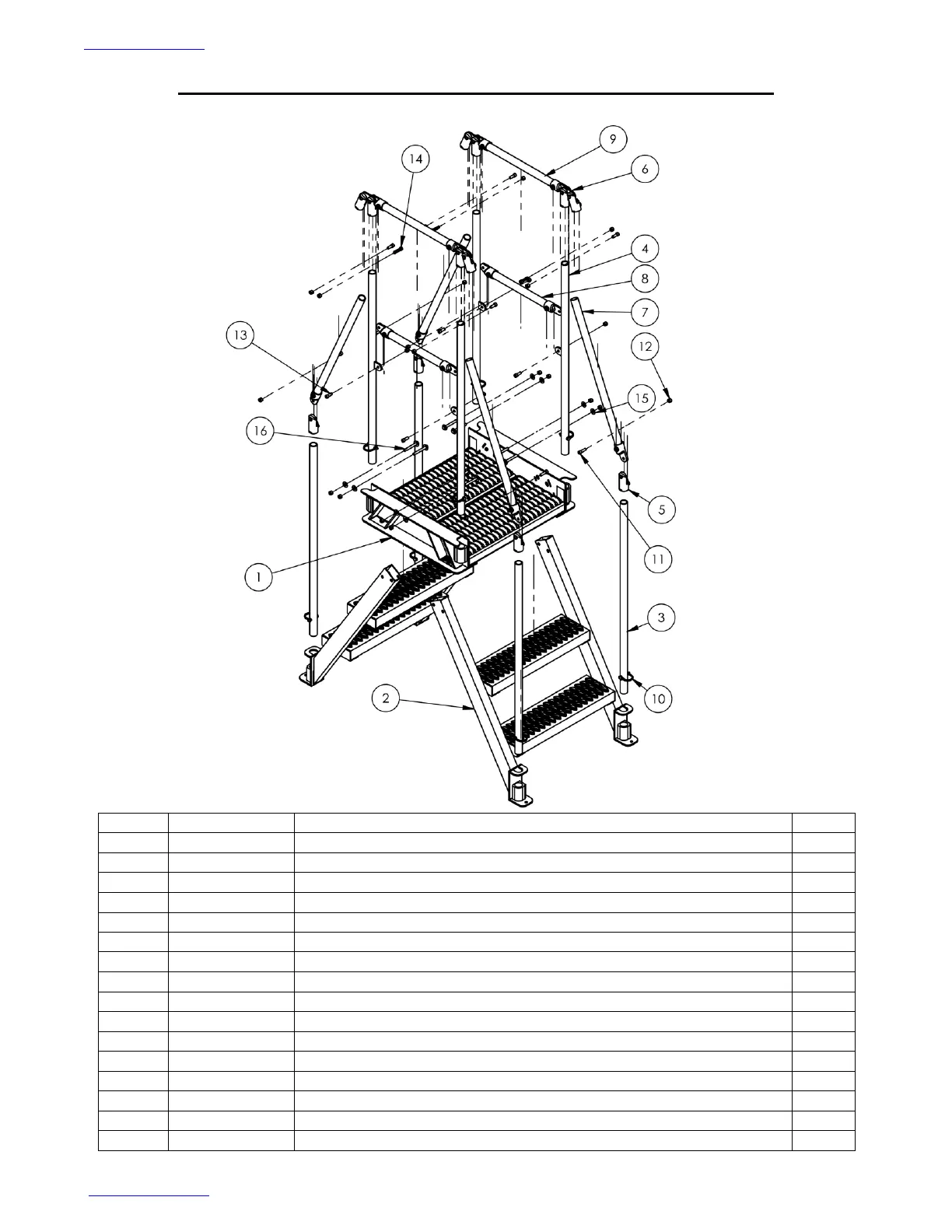

Exploded View & Bill of Materials: COL-AL-3-26-14
44-006-769
ITEM
PART NUMBER
DESCRIPTION
QTY.
1
44-513-036
WELDMENT, PLATFORM
1
2
44-647-296
WELDMENT, STEPS, FRAME
2
3
44-024-359
GUARD,PIPE,ALUM,UPRIGHT
4
4
44-524-229
WELDMENT,GUARD,UPRIGHT,COL
4
5
44-516-016
ASSEMBLY, HANDRAIL, PIPE END
24
6
44-016-149
BRACKET,UPPER HANDRAIL,ALUM
4
7
44-024-347
GUARD,PIPE,ALUM,STEPS
4
8
44-024-352
GUARD,PIPE,ALUM,PLATFORM MIDRAIL
2
9
44-024-356
GUARD,PIPE,ALUM,PLATFORM HANDRAIL
2
10
44-145-016
SPEC. HARDWARE,LOCKING PIN W/ RETAINER
8
11
23307
SHCS,UTILITY GRADE,3/8 - 16 x 1 1/4 LG.
4
12
37024
NYLON INSERT LOCK NUT, GRADE 2, ZINC FINISH, 3/8"-16
24
13
23305
SHCS, UTILITY GRADE, 3/8 - 16 x 1 LG.
8
14
23309
SHCS UTILITY GRADE, 3/8 - 16 UNC x 1 1/2" LG.
4
15
33007
3/8" USS FLAT WASHER, PLAIN
16
16
11115
HHCS, #2 Z PLATED, GRADE A, 3/8 - 16 x 3 LG.
8
