TABLE OF CONTENTS Rev. 1/14/2025 COL-AL, MANUAL
TABLE OF CONTENTS Copyright 2024 Vestil Manufacturing Co. Page 20 of 24

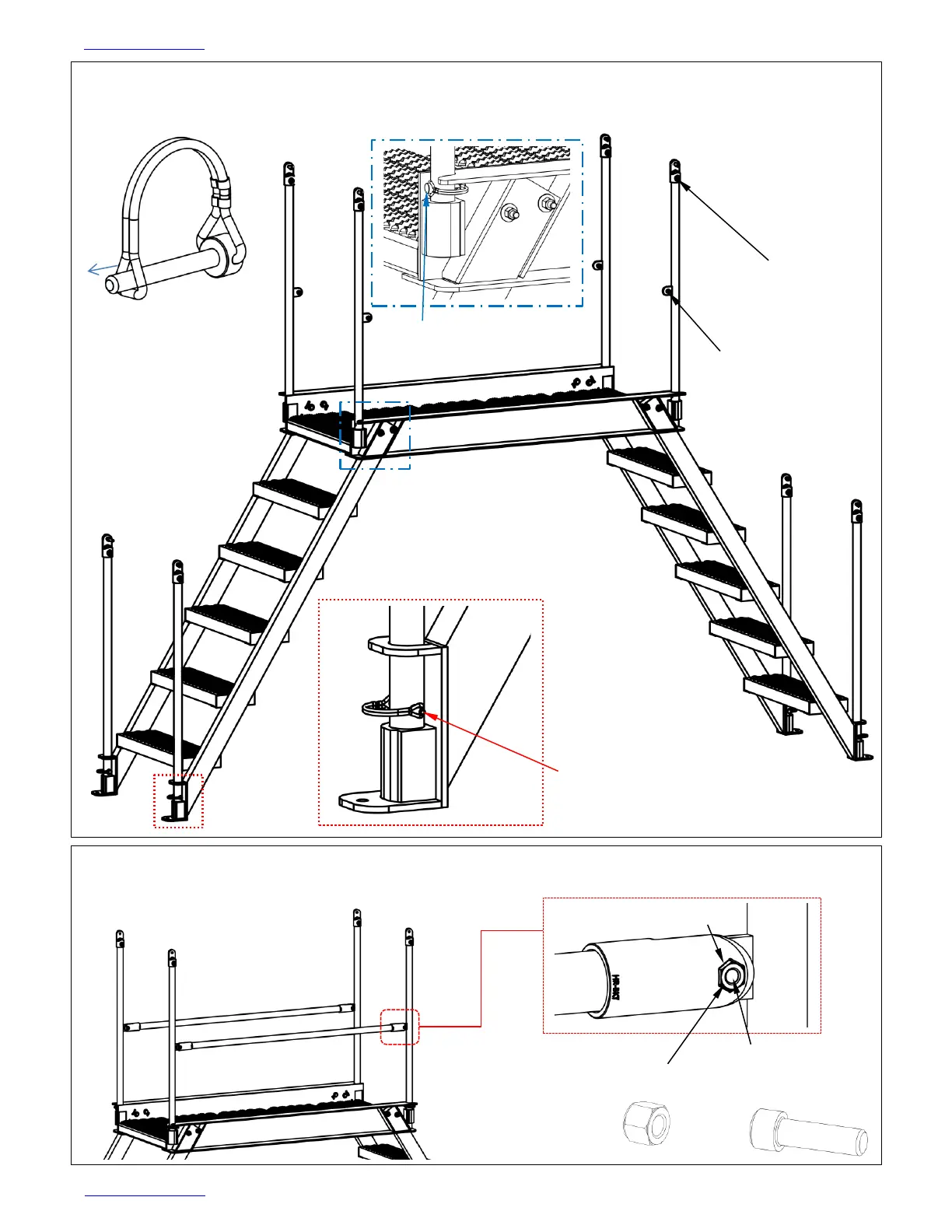

STEP 3: Install the Platform Uprights and Handrail Uprights into the appropriate sockets as shown in the
diagram below. Make sure that the pipe ends face the same directions as shown in the diagram. Install
locking pins through the pins holes in the bottom ends of the uprights as shown in the diagram.
STEP 4: Attach midrails to the midrail brackets with 3/8”-16x1” socket cap screws and 3/8”-16 lock nuts. Set
lock nuts (37024) in the pipe end sockets. Then, insert bolts through the midrail brackets and wind them
into the lock nuts. Tighten all bolts.
Pipe end
set screw
Locking pin with
retainer reapplied
after installation
Platform
Upright
Handrail
Upright
3/8”-16x1”
socket cap
screw (23305)
3/8”-16 lock nut
(37024)
Locking pin with Retainer
(44-145-016)
Pull retainer off of end of
pin before installing pin
through an upright.
Reapply retainer after
installation.
Locking pin with retainer
reapplied after installation
Midrail
bracket
Socket of pipe end
