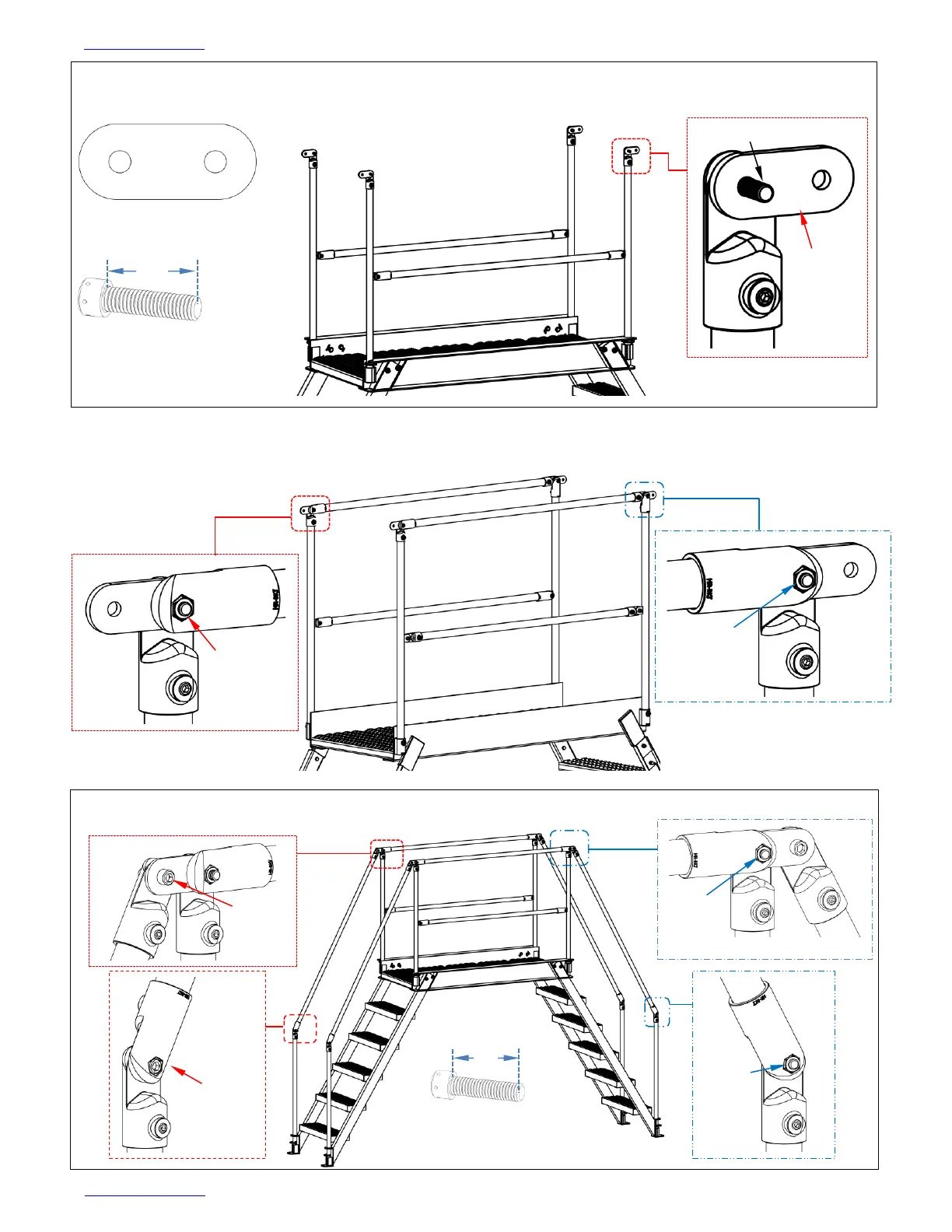

STEP 5: Insert 3/8”-16x1.5” socket head bolts (23309) through the pipe ends at the tops of the Platform
Uprights. Slide one end of an upper handrail bracket onto each bolt as shown in the diagrams below.
Upper handrail bracket
44-016-149
Socket head bolt
23309
STEP 6: Attach Upper Handrails to the Platform Uprights by sliding the pipe ends at both ends over the
socket head bolts (23309) installed in the previous step. Secure these connections with lock nuts (37024).
STEP 7: Attach handrails to the upper handrail brackets and to the handrail uprights with 3/8”-16x1” socket
head cap screws (23305) and 3/8”-16 lock nuts (37024).
Lock
nut
(37024)
Lock
nut
(37024)
Cap
screw
(23305)
Cap
screw
(23305)
Lock
nut
(23305)
Lock
nut
(23305)
1.5”
Upper
handrail
bracket
Socket head bolt
Socket head bolt
23305
1”
