TABLE OF CONTENTS Rev. 3/29/2024 COL, MANUAL
TABLE OF CONTENTS Copyright 2024 Vestil Manufacturing Co. Page 21 of 24

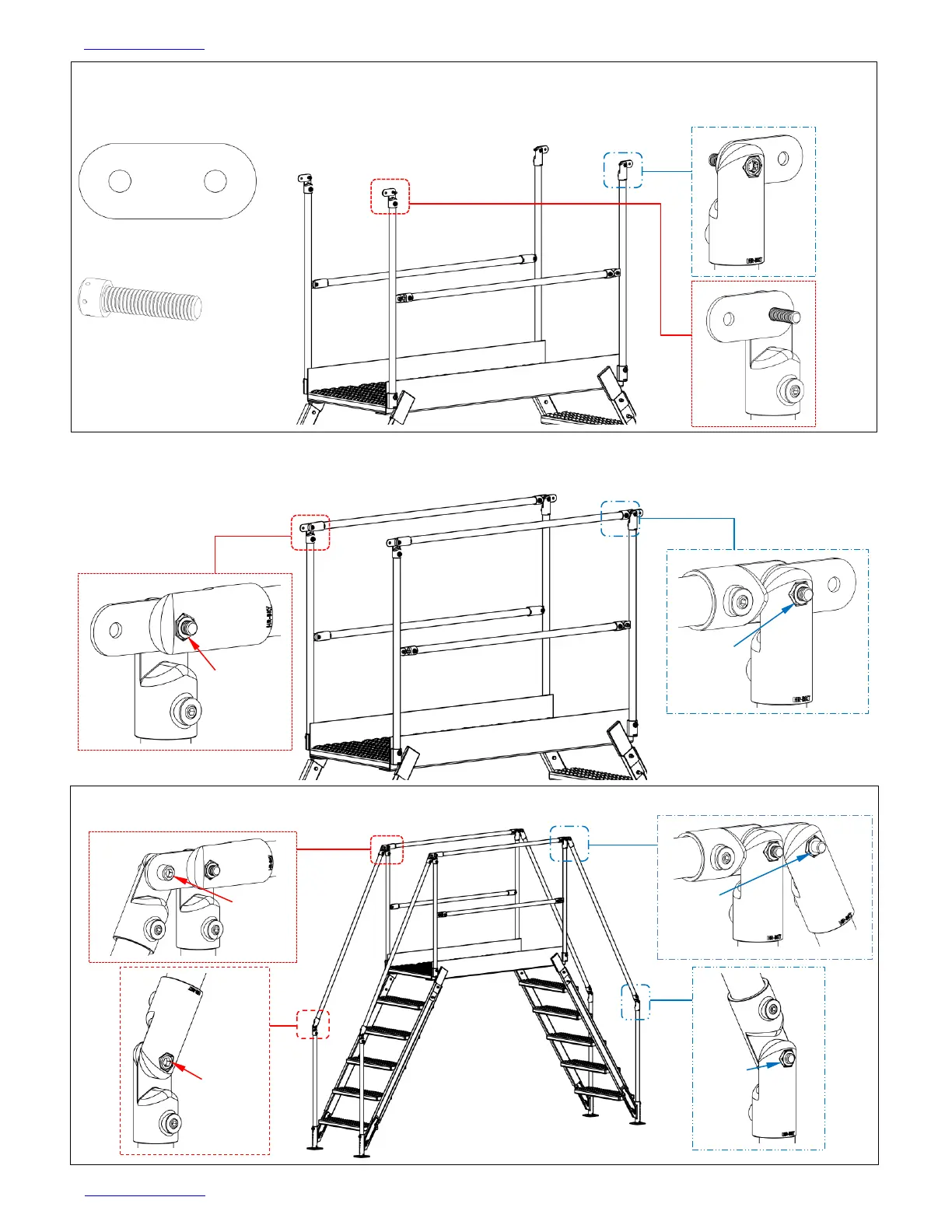

STEP 5: Insert 3/8”-16x1.5” socket head bolts (23309) through the pipe ends at the tops of the Platform
Uprights. Slide one end of an upper handrail bracket onto each bolt. Attach Upper Handrails and upper
handrail brackets (44-016-012) to the pipe ends with and 3/8”-16 lock nuts (37024).
Upper handrail bracket
44-016-012
Socket head bolt
23309
STEP 6: Attach Upper Handrails to the Platform Uprights by sliding the pipe ends at both ends over the
socket head bolts (23309) installed in the previous step. Secure these connections with lock nuts (37024).
STEP 7: Attach handrails to the upper handrail brackets and to the handrail uprights with 3/8”-16x1.25”
socket head cap screws (23307) and 3/8”-16 lock nuts (37024).
Lock
nut
(37024)
Lock
nut
(37024)
Cap
screw
(23307)
Cap
screw
(23307)
Lock
nut
(23307)
Lock
nut
(23307)
