ASSEMBLING THE CROSSOVER LADDER
This crossover ladder is shipped in a disassembled state. Fasten each of the stairway segments to the
platform/deck before installing the handrails. When assembly is finished, anchor the ladder to the ground.
Numbers in parentheses correspond to part numbers in the exploded views and their bills of materials on
pages 3-18.

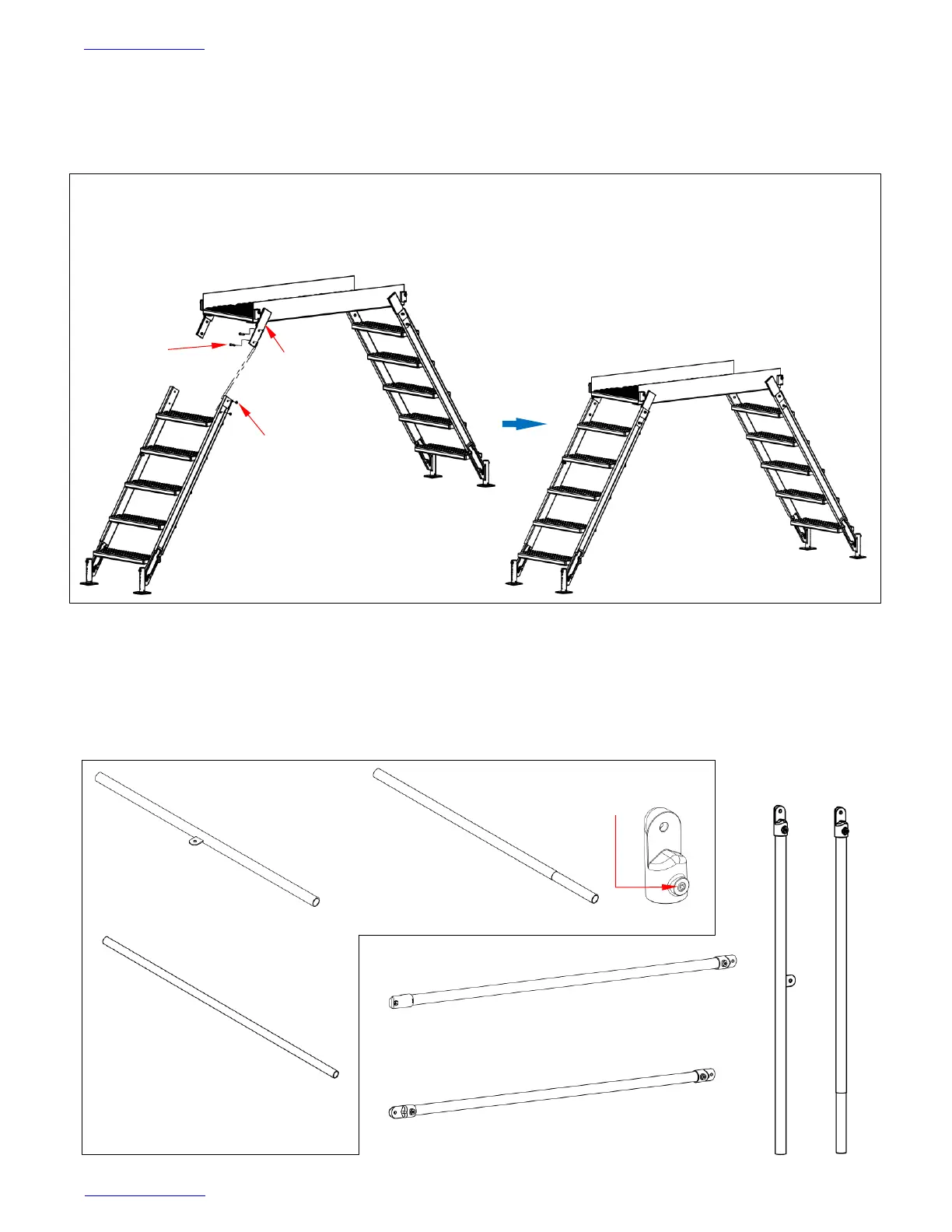

STEP 1: Attach the stairways to the platform/deck with
3
/
8
”-16 hardware. There are 2 bolt holes at the top
of each stairway and 2 bolt holes in each of the stairway brackets which are welded to the sides of the
platform. Insert the bolts (11110) through the bolt holes in the stairway brackets and through the matching
holes at the top of the stairways. Then apply a lock nut (37024) to the end of each bolt. Tighten all lock
nuts.
STEP 2: Attach pipe ends (44-016-012) to one end of the 4 platform uprights (44-524-031). If a pipe end
won’t fit over the end of an upright, loosen the set screw. Tighten all set screws to secure the pipe ends to
the ends of the uprights. Attach a pipe end to one end of all 4 handrail uprights (44-024-066 or 44-024-
361). Handrail uprights are 40
7
/
8
” (40.875”) long. Then, attach pipe ends to both ends of the upper
handrails and both ends of the midrails. NOTE 1: Handrail and midrail dimensions are provided in the bill of
materials for the EXPLODED VIEW of your COL model. Upper handrails are 3in. (~7.5cm) longer than
midrails. NOTE 2: Pipe ends attached to upper handrails face opposite directions.
Stairway
bracket
Lock nut
(37024)
Hex head
bolt (11110)
Stairway
Platform
Platform Upright (44-524-031)
Upper handrail & Midrail
Measure and match dimensions
provided in bill of materials.
Upper handrail with pipe ends. Pipe ends face
opposite directions.
Midrail with pipe ends. Pipe ends face the
same direction.
Platform Upright &
Handrail Upright with
pipe ends attached.
Handrail Upright (44-024-066 or 361) Pipe End
Set
screw
