TABLE OF CONTENTS Rev. 3/29/2024 COL, MANUAL
TABLE OF CONTENTS Copyright 2024 Vestil Manufacturing Co. Page 7 of 24

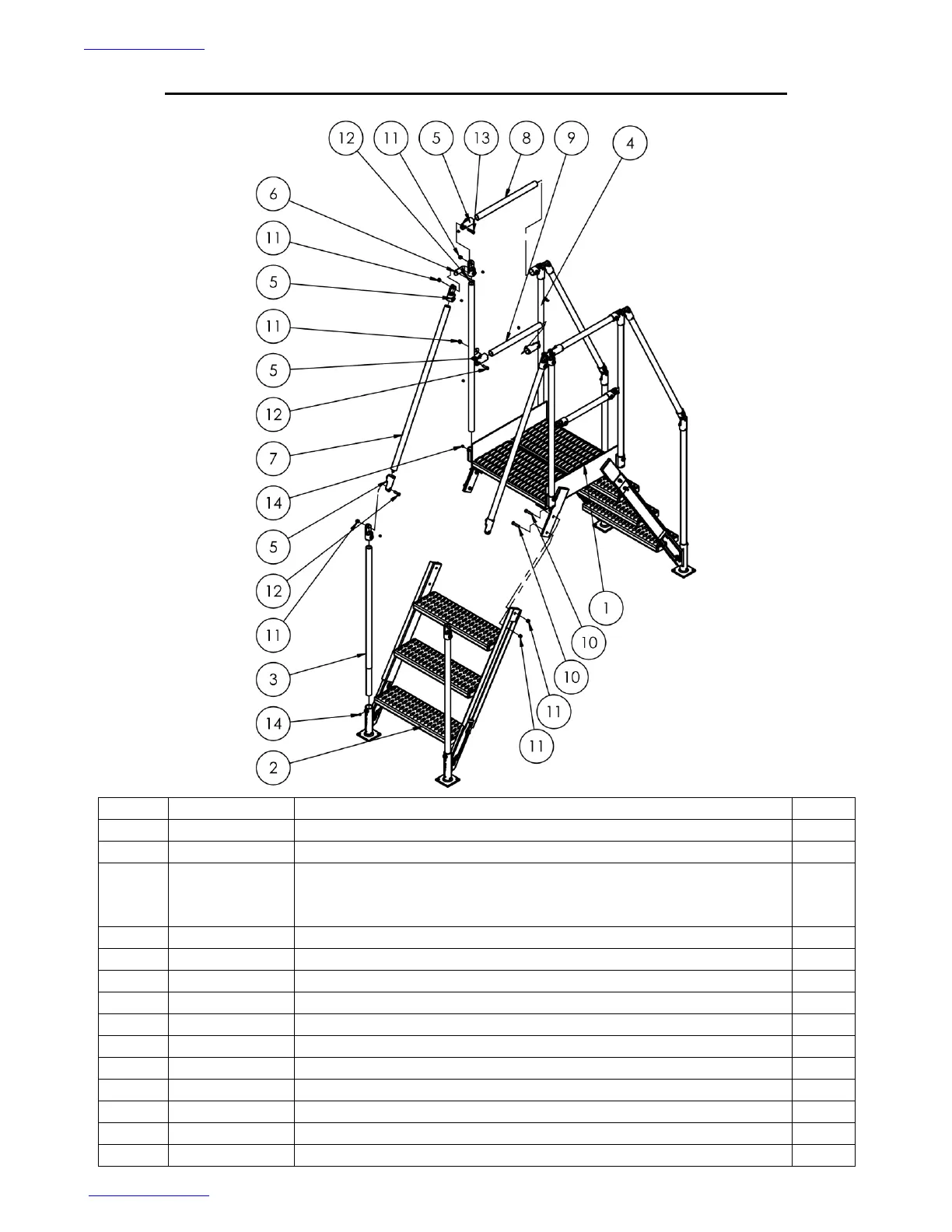

Exploded View & Bill of Materials: COL-4-36-14-HDG
44-006-732
ITEM
PART NUMBER
DESCRIPTION
QTY.
1
44-513-010
WELDMENT, FRAME, PLATFORM
1
2
44-514-050
WELDMENT, FRAME, STEPS
2
3
44-024-066
44-024-361
GUARD, HANDRAIL, UPRIGHTS, 40 7/8" LG.
COL-4-36-14
COL-4-36-14-HDG
4
4
4
44-524-031
GUARD,WELDMENT,UPRIGHT,COL
4
5
44-516-016
ASSEMBLY, HANDRAIL, PIPE END
24
6
44-016-012
BRACKET,UPPER HANDRAIL
4
7
44-024-056
GUARD,HANDRAIL,STEPS,40 5/8" LG.
4
8
44-024-061
GUARD,HANDRAIL,UPPER,18 7/8" LG.
2
9
44-024-065
GUARD,HANDRAIL,MIDRAIL,15 7/8" LG.
2
10
11110
HEX BOLT, GRADE A, ZINC FINISH, 3/8"-16 X 1 3/4"
8
11
37024
NYLON INSERT LOCK NUT, GRADE 2, ZINC FINISH, 3/8"-16
24
12
23307
SOCKET HEAD CAP SCREW, 3/8 - 16 x 1 1/4 LG.
12
13
23309
SOCKET HEAD BOLT, 3/8 - 16 UNC x 1 1/2" LG.
4
14
25537
3/8 - 16 x 3/8 CUP-POINT SET SCREW
8
