TABLE OF CONTENTS Rev. 3/29/2024 COL, MANUAL
TABLE OF CONTENTS Copyright 2024 Vestil Manufacturing Co. Page 6 of 24

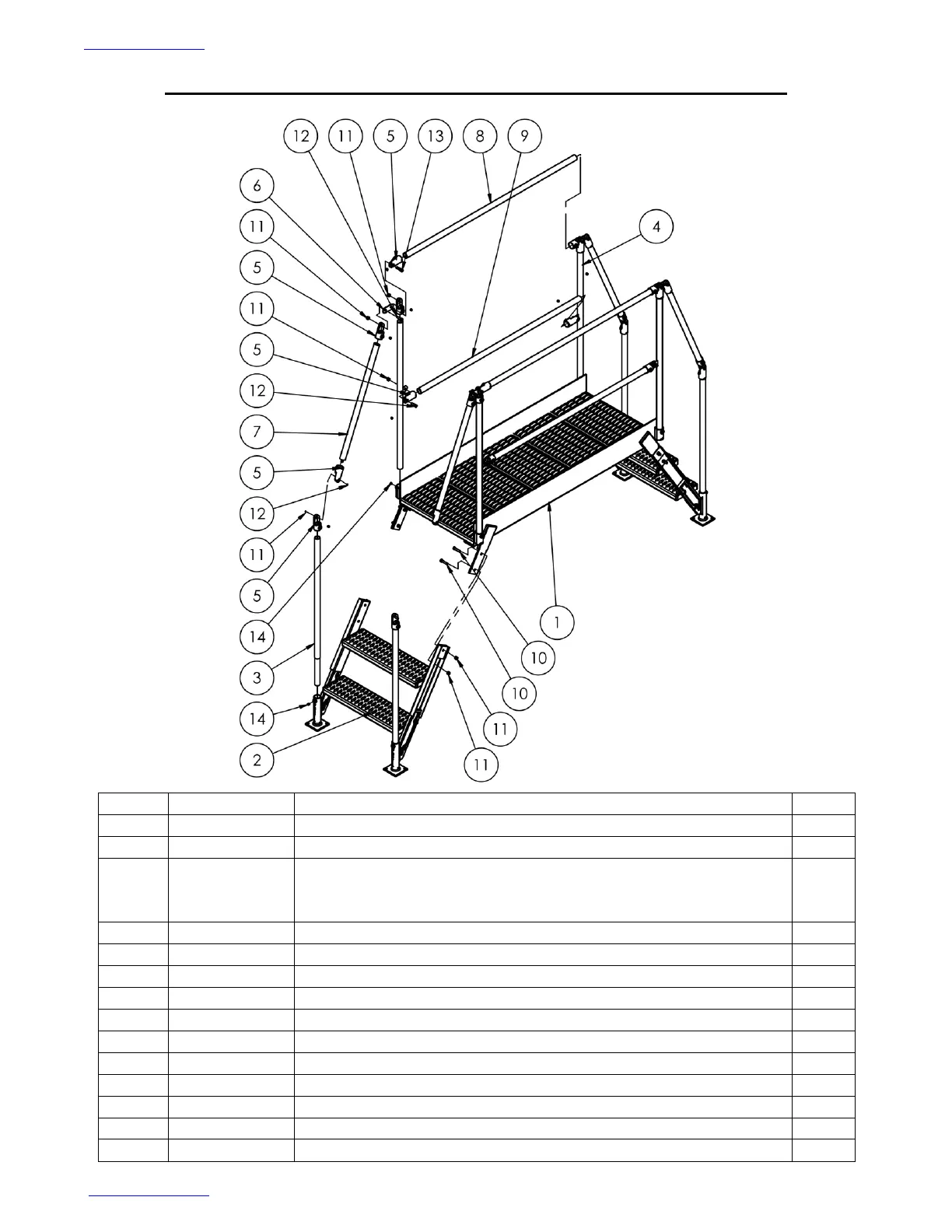

Exploded View & Bill of Materials: COL-3-26-44-HDG
44-006-731
ITEM
PART NUMBER
DESCRIPTION
QTY.
1
44-513-012
WELDMENT, FRAME, PLATFORM
1
2
44-514-051
WELDMENT, FRAME, STEPS
2
3
44-024-066
44-024-361
GUARD, HANDRAIL, UPRIGHTS, 40 7/8" LG.
COL-3-26-44
COL-3-26-44-HDG
4
4
4
44-524-031
GUARD,WELDMENT,UPRIGHT,COL
4
5
44-516-016
ASSEMBLY, HANDRAIL, PIPE END
24
6
44-016-012
BRACKET,UPPER HANDRAIL
4
7
44-024-057
GUARD,HANDRAIL,STEPS,28 3/4" LG.
4
8
44-024-059
GUARD,HANDRAIL,UPPER,42 7/8" LG.
2
9
44-024-063
GUARD,HANDRAIL,MIDRAIL,39 7/8" LG.
2
10
11110
HEX BOLT, GRADE A, ZINC FINISH, 3/8"-16 X 1 3/4"
8
11
37024
NYLON INSERT LOCK NUT, GRADE 2, ZINC FINISH, 3/8"-16
24
12
23307
SOCKET HEAD CAP SCREW, 3/8 - 16 x 1 1/4 LG.
12
13
23309
SOCKET HEAD BOLT, 3/8 - 16 UNC x 1 1/2" LG.
4
14
25537
3/8 - 16 x 3/8 CUP-POINT SET SCREW
8
