Rev. 9/13/2016 CH, MANUAL
Copyright 2016 Vestil Manufacturing Co. Page 4 of 7

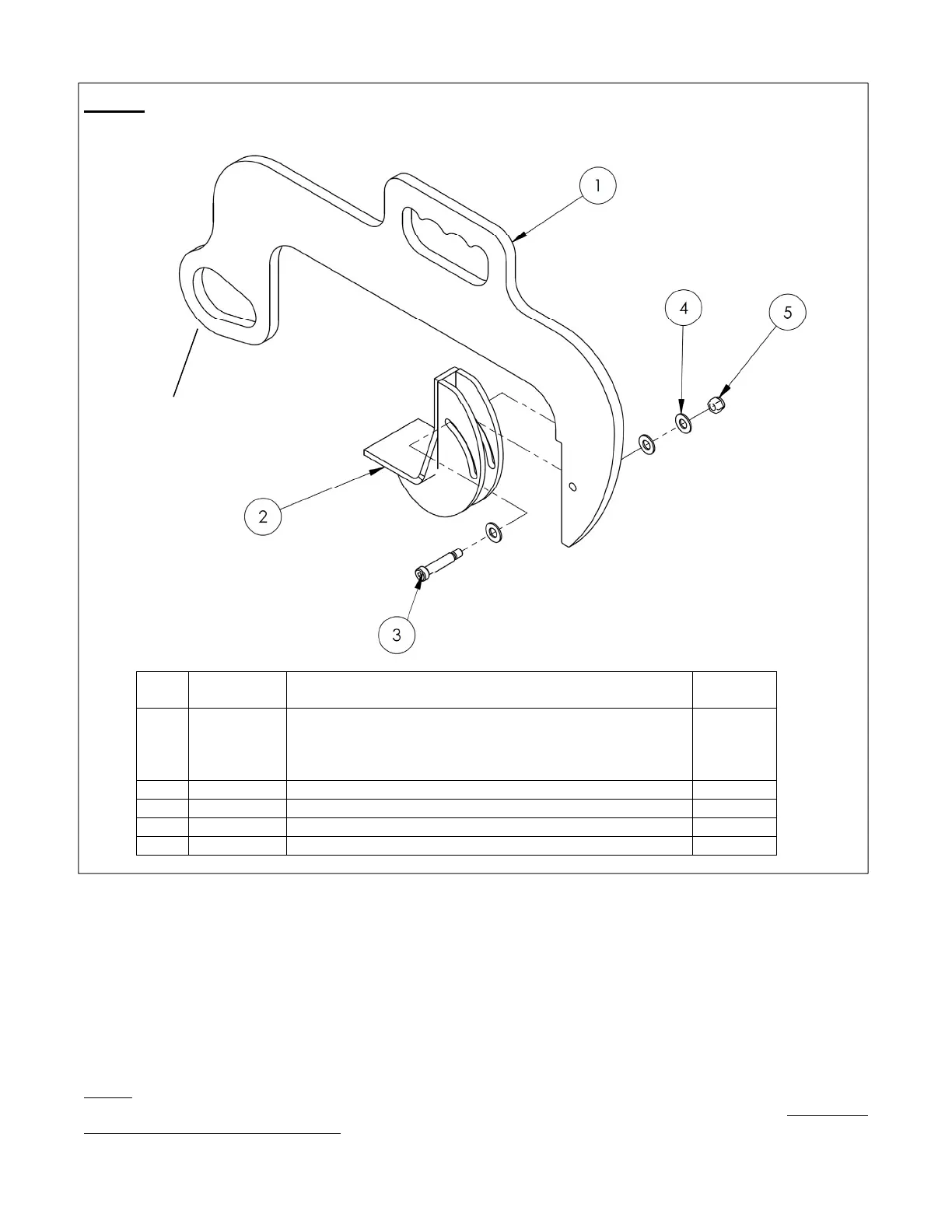

FIG. 1: CH-Series Coil Hooks Exploded Parts Diagram & Bill of Materials
Item
No.
Part No. Description Quantity
1
1
1
49-014-016
49-014-017
49-014-018
Main body, frame:
CH-10-6, or
CH-10-12, or
CH-20-8
1
1
1
2 49-516-001 Bracket Weldment 1
3 26333 Shoulder Screw 3/8 x 1-1/2 1
4 33008
3
/
8
” USS Z-plated Flat Washer 3
5 37021
5
/
16
” -18 Grade 2, zinc finish, Nylon insert lock nut 1
Use Instructions:
[NOTE: The operating instructions in this manual are meant to supplement operation recommendations in ASME
standard B30.20.]
Only trained, designated persons should use the coil hook. “Designated person” means someone selected by his
or her employer, or by a representative of the employer, as competent to use the coil hook. Trainees under the
direct supervision of a designated person may use the device. Maintenance persons and personnel who perform
tests also may use the coil hook when necessary for the performance of their employment duties.
Step 1: Perform a proper “Every Lift” inspection as described in the most recent revision of ASME B30.20,
BEFORE you connect the hook to a hoisting device. Proceed to the next step ONLY IF the coil hook passes the
inspection and is deemed safe to use by designated inspection personnel.
Lifting
bale
