Boom length adjustment:
Inspections:
If a problem is discovered during an inspection, restore the crane to normal operating
condition BEFORE using it again.
DO NOT use a crane that is structurally damaged in any way. Structural damage includes, but is not limited to,
cracked welds, warping or deformation of the frame, the upright girder, or the inner or outer boom.
Improper maintenance or repair may make the crane unsafe to use, which could result in serious personal
injuries or death. DO NOT attempt to repair or maintain the crane UNLESS you are qualified and authorized to
do so.
Lower the boom and unload the crane BEFORE beginning maintenance/repairs.
Only qualified, authorized personnel trained to maintain hydraulic components should attempt troubleshooting
and repair of this equipment.
(A) Before each use, inspect the following items:
1.) Hydraulic system ─ check for oil leaks. Also check the hose for cuts, kinks, or other damage.
2.) Structural members, cylinder brackets, & booms (inner and outer) ─ examine each item for damage,
deformation, and corrosion.
3.) Cylinder and pump ─ raise and lower the boom. Listen for unusual noise; watch the cylinder to confirm
that it does not bind but extends and retracts smoothly.
4.) Load hook and shackle ─ closely examine the load hook and shackle. Make sure that neither is
severely worn, warped, bending or cracking. Confirm that the safety latch (of the hook) operates
correctly. Also inspect the shackle bracket. The bracket should be square and rigid and lack cracks
and significant bends. The pin hole (for the shackle pin) should not be elongated.
(B) Inspect the following at least once per month:
1.) Oil level ─ lower the boom completely. Oil should be within ¾in. of the top of the reservoir with the
boom in the fully lowered position. [See “Yearly inspection” below for the hydraulic fluid
specifications.]
2.) Hoses ─ check for cuts, kinks, and other damage. Confirm that the ends of the hose are firmly
connected to the pump and the cylinder.
3.) Hardware ─ check the integrity of all nuts, bolts, and pins. Replace any item that is damaged.
4.) Casters ─ move the crane and determine whether any caster is loose, significantly worn, or damaged.
Remove any material stuck to the surface of the casters.
5.) Complete assembly ─ listen for unusual noises and watch for abnormal movement while elevating and
lowering the boom.
6.) Labels ─ check all information/safety labels. The crane should be labeled at all times as shown in the
labeling diagram on p. 12.
(C) Yearly inspection:
In addition to the inspections described above in parts A and B, check the hydraulic fluid at least once per
year. Change the oil if it darkens, becomes gritty, or turns a milky color (indicating the presence of water).
Replace the hydraulic fluid with anti-wear hydraulic oil of viscosity grade 150 SUS at 100°F, (ISO 32 at 40°C), for
example, AW 32 or HO 150 hydraulic oil, or a non-synthetic transmission fluid. You may use a synthetic
transmission fluid if you flush the system with the synthetic fluid before filling the reservoir.

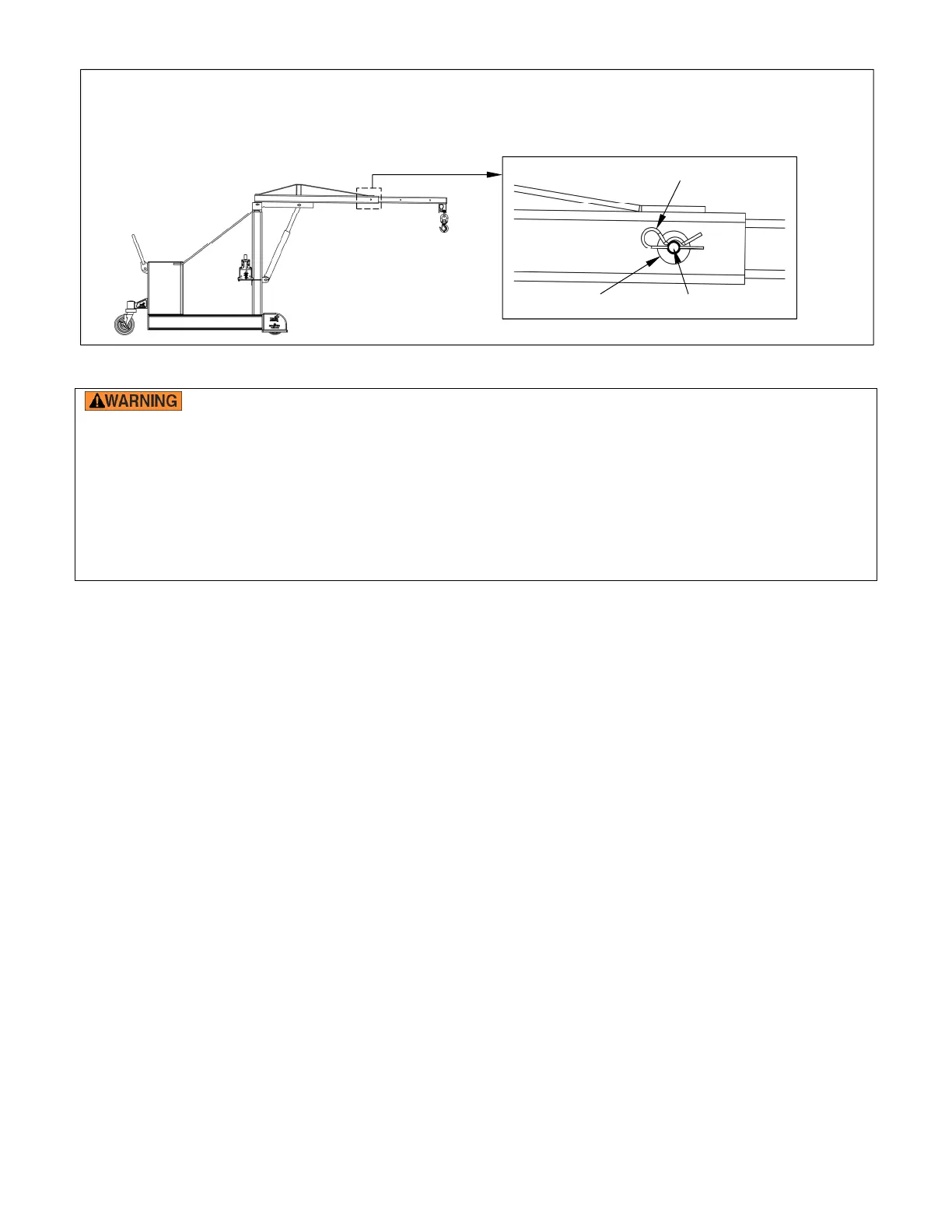

To adjust the length of the boom, first use the hand pump to raise the end of the boom until the boom is level.
Remove the hitch pin and flat washer; then pull out the clevis pin. The inner boom is now unfastened from the
outer boom. Align the appropriate holes in the inner and outer booms to achieve the necessary boom
configuration and then re-pin them.
Flat washer
Clevis pin
Hitch pin
