TABLE OF CONTENTS Rev. 4/13/2023 CBB-3000-37 MANUAL
TABLE OF CONTENTS Copyright 2022 Vestil Manufacturing Co. Page 10 of 19
Item
Part no.
Description
Qty.
1
22-031-027
HYDRAULIC PUMP ADAPTER, 20"
1
*2
99-137-043
MOTOR/PUMP, 208-230/460V, 6.5 HP,
3 PH, 1750 RPM, .97/.499 DISP.
1
3
11055
HEX BOLT, GRADE A, ZINC PLATED,
5/16-18 X 1
4
4
33620
LOCK WASHER, MEDIUM SPLIT, Ø5/16"
4
**5
22-627-026
ASSEMBLY, MANIFOLD
1
*Shown in detail in MOTOR/PUMP SUBASSEMBLY EXPLODED VIEW (below).
**Shown in detail in MANIFOLD SUBASSEMBLY EXPLODED VIEW on p. 11.

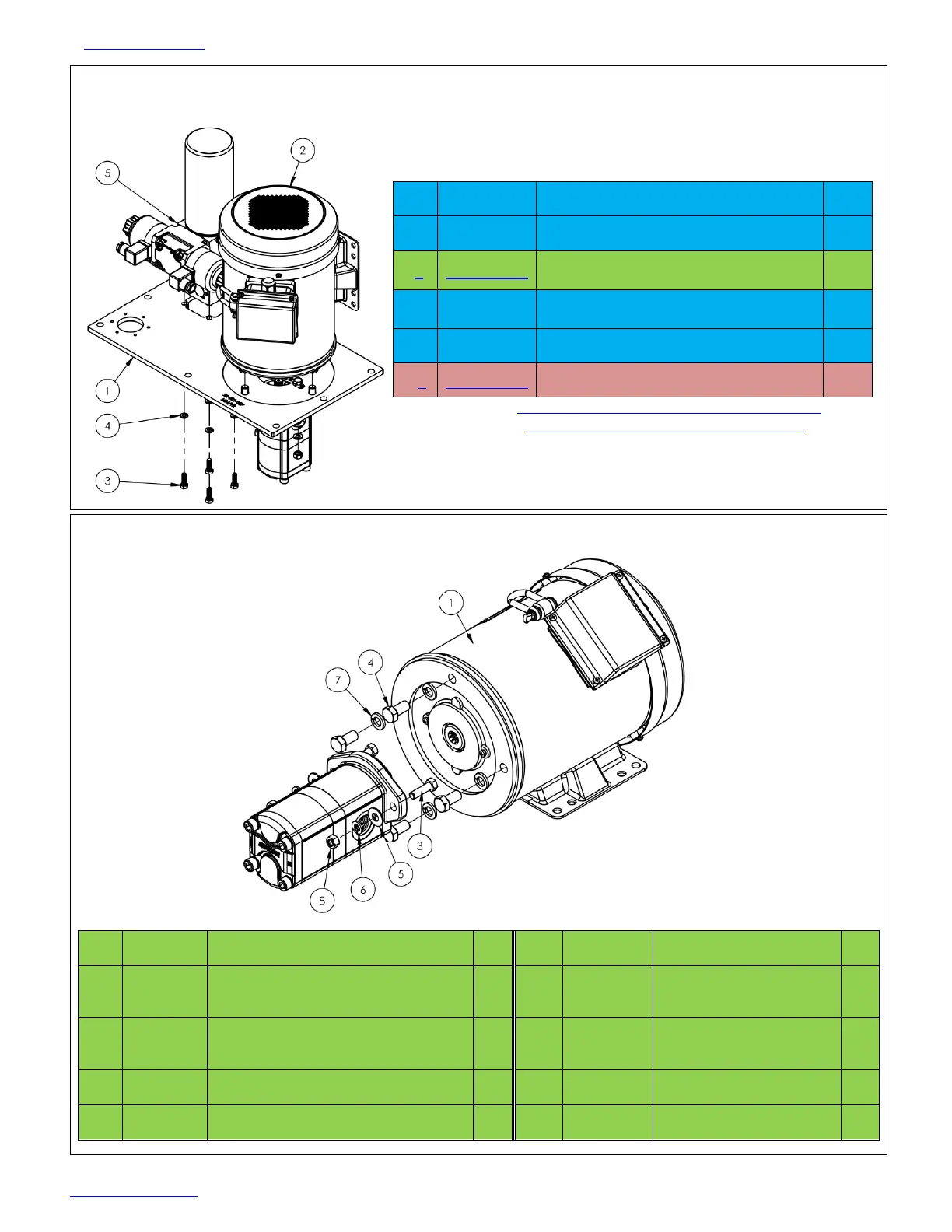

POWER UNIT SUBASSEMBLY EXPLODED VIEW & BILL OF MATERIALS
22-160-002 REV. B
MOTOR/PUMP EXPLODED VIEW AND BILL OF MATERIALS
99-137-043
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
99-135-036
MOTOR, 6.5 HP, 3 PH, 1750 RPM, 184T,
208-230/460V, 60 HZ,
ELECTRIC, 9T SHAFT
1
5
33008
FLAT WASHER, LOW
CARBON, USS, ZINC
PLATED, 3/8"
2
2
22-143-001
PUMP, HYDRAULIC GEAR
1
6
33622
SPLIT LOCK WASHER,
CARBON STEEL, MEDIUM
ZINC FINISH, 3/8"
2
3
11107
HEX BOLT, GRADE A, ZINC FINISH, 3/8"-
16 x 1-1/4"
2
7
33626
LOCK WASHER Z PLATED,
Ø 1/2
4
4
11205
HEX BOLT, GRADE A, ZINC PLATED,
1/2"-13X 1"
4
8
36106
HEX NUT, GRADE A, ZINC
PLATED, 3/8-16
2
