Rev. 6/12/2017 CANT, MANUAL
Copyright 2017 Vestil Manufacturing Corp. Page 3 of 8

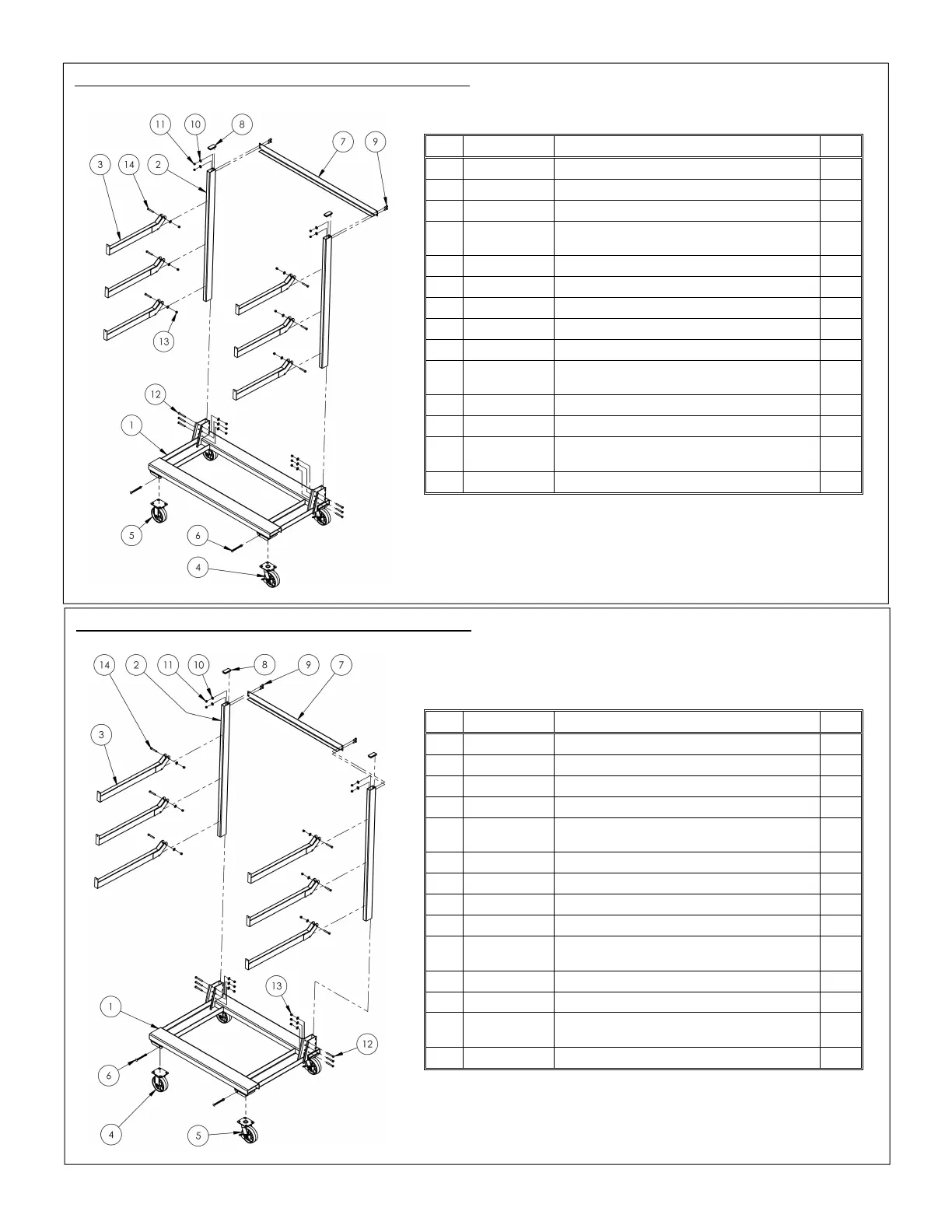

CANT-3060 Exploded Parts Diagram and Bill of Materials
Item
Part no. Description Qty.
1 16-514-243
Weldment, base 1
2 16-514-244
Weldment, upright post 2
3 16-514-245
Weldment, 24” arm 6
4 16-132-261
Caster, 6”x2” swivel with brake, glass
filled Nylon
2
5 16-132-263
Caster, 6”x2”, rigid, glass filled Nylon 2
6 99-612-001
Pin, caster receiver, bolt and nut 4
7 16-014-512
Frame, cross support 1
8 21-024-021
Cap, rectangular glide 2
9 11105 Hex bolt, gr. A, zinc plated,
3
/
8
”-16x1” 4
10 33008
Flat washer, low carbon, USS, zinc
plated,
3
/
8
”
16
11 36106 Hex nut, gr. A, zinc plated,
3
/
8
”-16 4
12 11115 Bolt, HHCS, #2 zinc plated,
3
/
8
”-16x3” 6
13 37024
Nylon insert lock nut, gr. 2, zinc finish,
3
/
8
”-16
12
14 11113 Hex bolt, gr. A, plain finish,
3
/
8
”-16x2
1
/
2
”
6
CANT-3648 Exploded Parts Diagram and Bill of Materials
Item
Part no. Description Qty.
1 16-514-242
Weldment, base 1
2 16-514-244
Weldment, upright post 2
3 16-514-246
Weldment, 24” arm 6
4 16-132-263
Caster, 6”x2”, rigid, glass filled Nylon 2
5 16-132-261
Caster, 6”x2” swivel with brake, glass
filled Nylon
2
6 99-612-001
Pin, caster receiver, bolt and nut 4
7 16-014-511
Frame, cross support 1
8 21-024-021
Cap, rectangular glide 2
9 11105 Hex bolt, gr. A, zinc plated,
3
/
8
”-16x1” 4
10 33008
Flat washer, low carbon, USS, zinc
plated,
3
/
8
”
16
11 36106 Hex nut, gr. A, zinc plated,
3
/
8
”-16 4
12 11115 Bolt, HHCS, #2 zinc plated,
3
/
8
”-16x3” 6
13 37024
Nylon insert lock nut, gr. 2, zinc finish,
3
/
8
”-16
12
14 11113 Hex bolt, gr. A, plain finish,
3
/
8
”-16x2
1
/
2
”
6
