TABLE OF CONTENTS Rev. 7/6/2021 BBL-RK-72 MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Co. Page 5 of 8

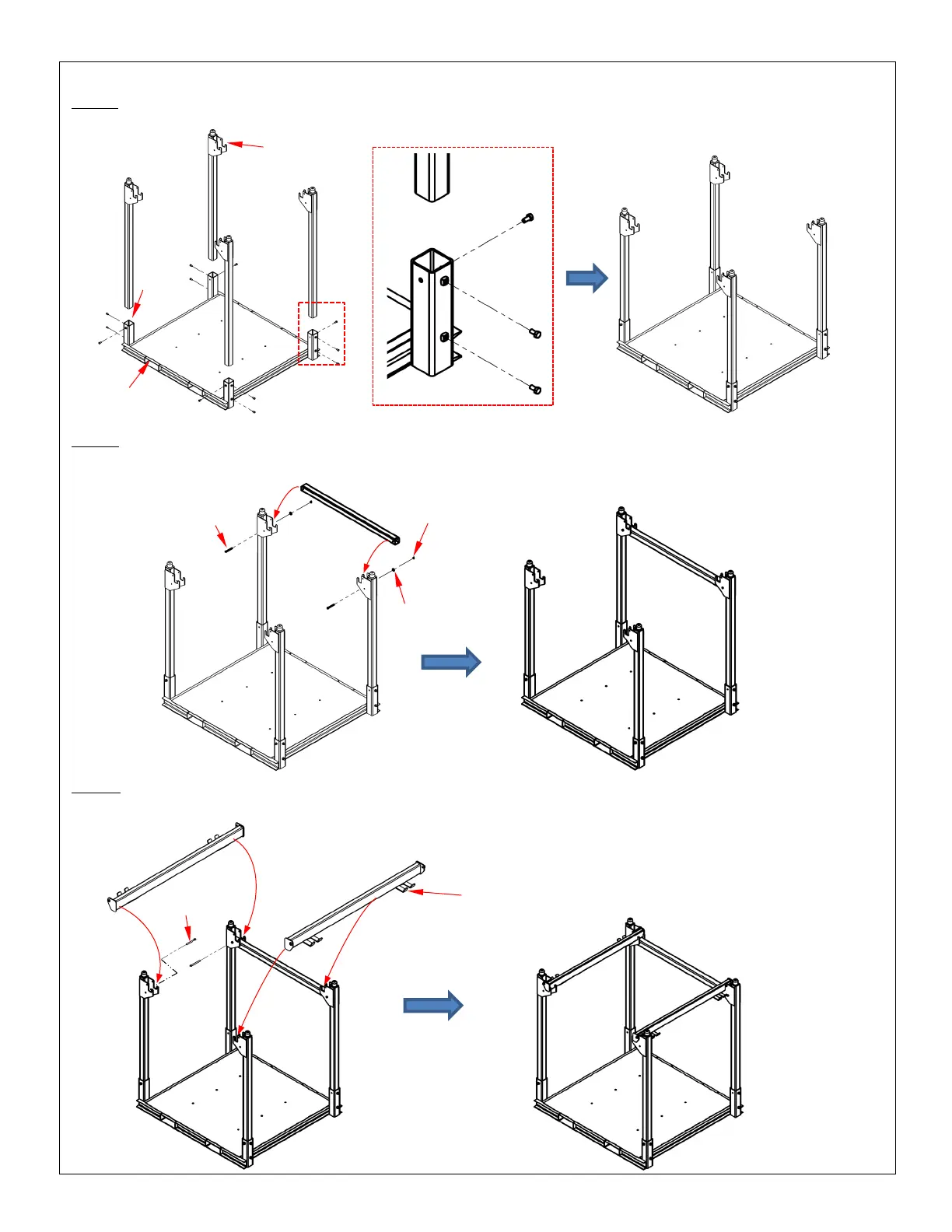

ASSEMBLING THE RACK
Step 1: Insert posts (47-514-033) into post receivers as shown in the diagrams (below). Secure each post with
three (3) 3/8” – 16 x 3/4” hex bolts (11103). Tighten the bolts against the sides of the posts.
Step 2: Attach the support tube to 2 posts. Fasten the tube at each end to a post with a 3/8”-16 x 3.5” hex
head bolt (11117), a 3/8” flat washer (33007), and a 3/8”-16 hex nut (36106).
Step 3: Install the bag mounting weldments (47-514-036). Attach each end of both tubes to the support
brackets with 3/8”-16 x 4” hex head bolts (11119).
Post
receiver
Fork
channel
Support
bracket
Hex head
bolt (11117)
Hex nut
(36106)
Flat washer
(33007)
Pair of bag
holder hooks
Hex head
bolt (11119)
