Rev. 9/26/2016 BAR-R & BAR-A, manual
Copyright 2016 Vestil Manufacturing Corp. Page 8 of 10

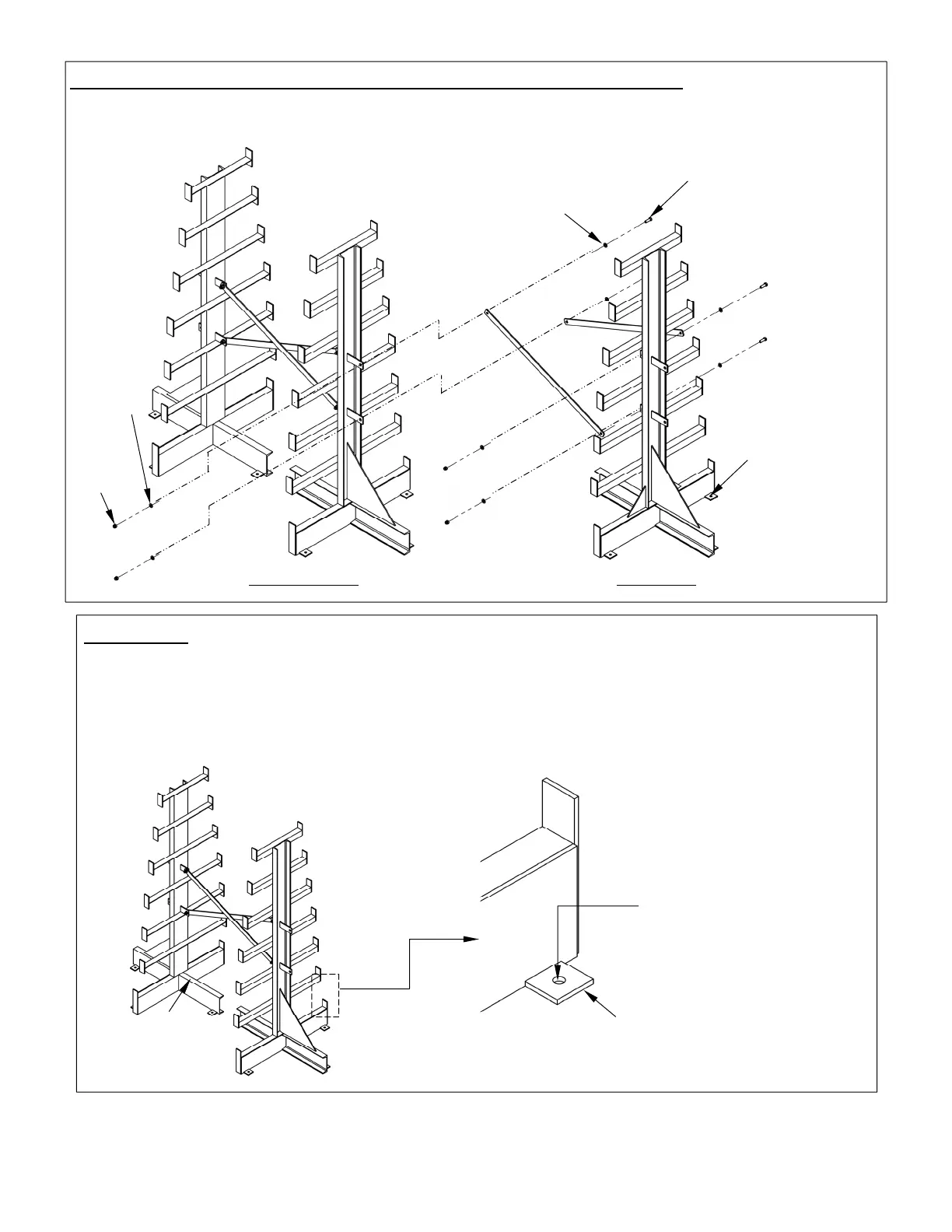

Assembling add-on units (models BAR-A-84-S or BAR-A-84–D):
Each frame unit has 2 pairs of brackets, which allow additional units to be attached to the rack system. Attach the
stiffeners included with the add-on unit to the free brackets on the end of the racking system with
1
/
2
” hardware as
shown below. Follow the “Installation” instructions to anchor all add-on units to the ground.
Installation:
Make sure that the rack system and all add-on units are level. If necessary, shim and grout the bases to
achieve levelness. Once leveled, anchor the entire rack system to the ground BEFORE loading it. Each
rack unit and add-on unit includes 4 mounting brackets with anchor bolt holes—one at the end of each
leg. Install a
1
/
2
” anchor bolt of appropriate length—to be determined by your building engineer—
through every bolt hole to securely fasten each unit to the ground.
Leg
Bolt hole in mounting
bracket for
1
/
2
” anchor
bolt of appropriate length
Mounting bracket at end
of leg
Add
-
on unit
Racking system
12209
33011
33011
37030
