Rev. 9/26/2016 BAR-R & BAR-A, manual
Copyright 2016 Vestil Manufacturing Corp. Page 4 of 10

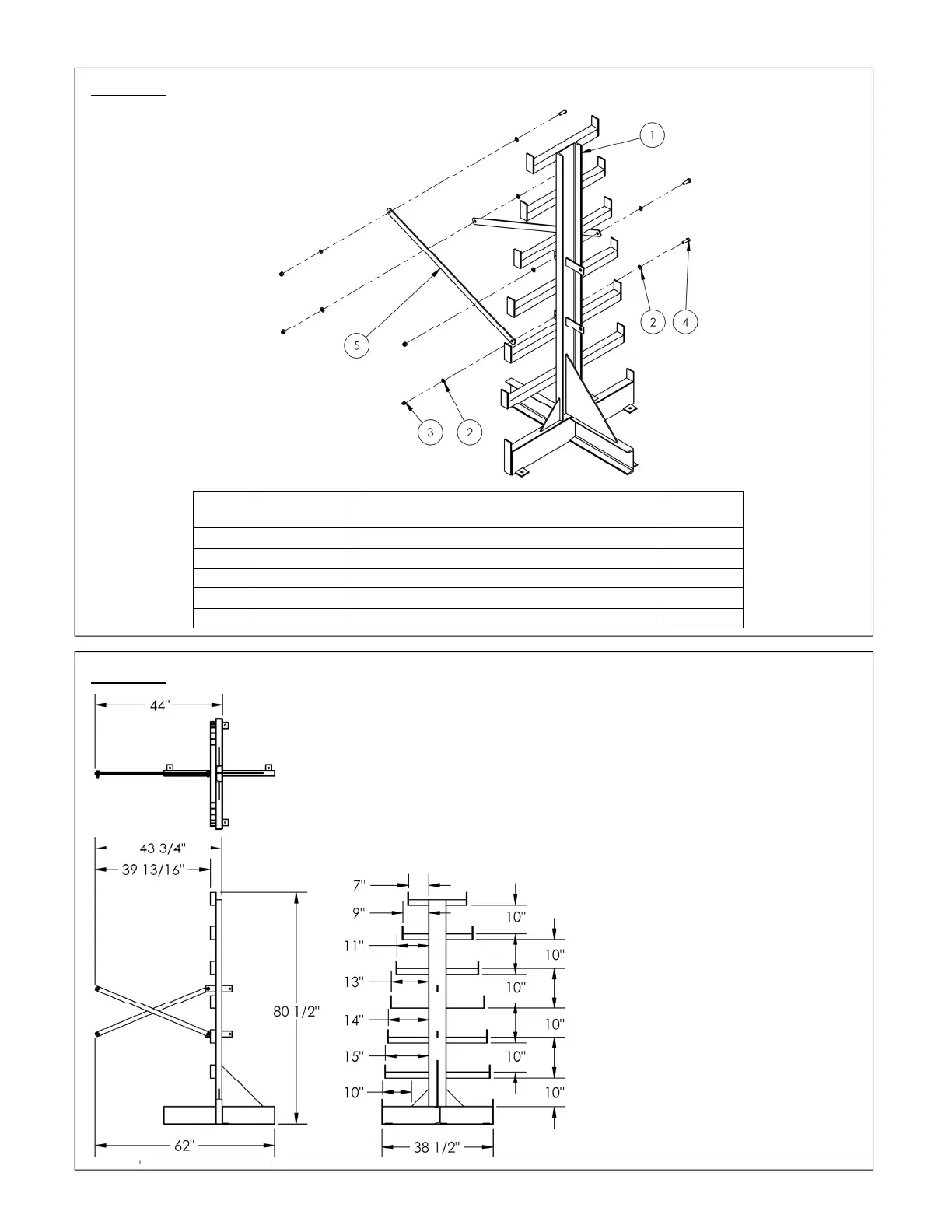

FIG. 2A: BAR-A-84-D (Add-on, Double Sided) Exploded Parts Diagram and Bill
of Materials
FIG. 2B: BAR-R-84-D dimensions and capacity
Item
no.
Part no. Description Quantity
1 31-514-063 WELDMENT, FRAME, BAR-RD
1
2 33011 1/2 USS FLAT WASHER PLAIN
8
3 37030 1/2” -13 NYLON INSERT LOCK NUT
4
4 12209 1/2 – 13 GR. 5 X 1 ½ LG.
4
5 31-017-017 BAR STIFFENER, UPRIGHT, BAR RACK
2
Overall width = 38
1
/
2
”
Overall length = 62”
Overall height = 80
1
/
2
”
Capacity = 500 lb. per arm
Storage levels = 7
Bar stock stored on both sides of upright.
Unit comes with 1 upright and 1 set (2 pieces) of cross bracing.
Includes anchor bolt brackets for
1
/
2
” anchor bolts of appropriate
length as selected by your building engineer.
