Table of Contents Rev. 0225 AY MANUAL
Table of Contents Copyright 2025 Vestil Manufacturing Co. Page 10 of 12

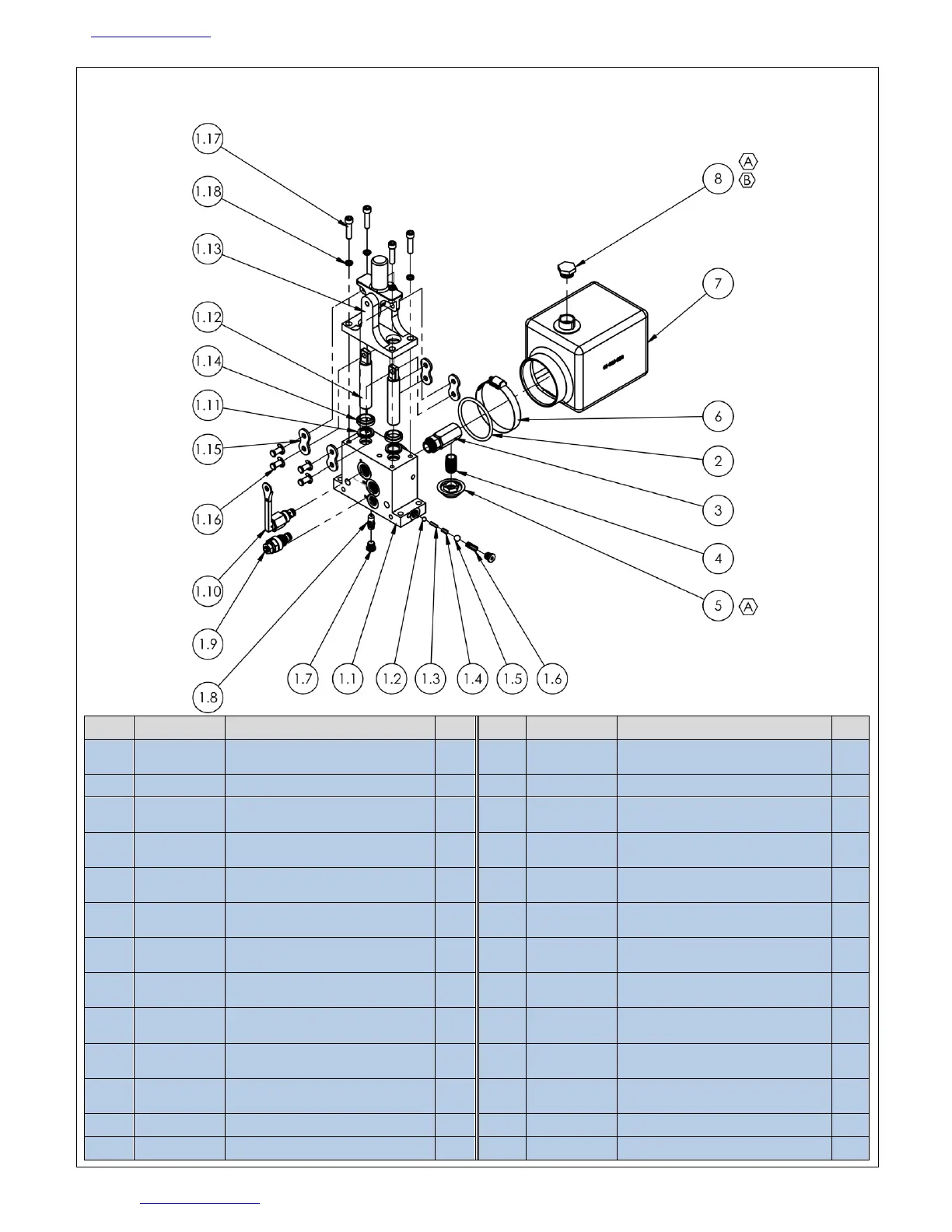

MANUAL HYDRAULIC PUMP EXPLODED VIEW AND BILL OF MATERIALS
Part no. 99-640-013 rev. B
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
99-140-005
SUB-ASSEMBLY, MANUAL
PUMP, HAND
1
1.13
99-640-008
SUB-ASSEMBLY, PUMP, ROCKER
1
1.1
99-039-005
BODY, MANUAL PUMP, HAND
1
1.14
99-144-003
WIPER, SOLID PROFILE, PISTON
2
1.2
99-110-007
BEARING, BALL, Ø1/4"
2
1.15
99-042-001
CHAIN, SLIP FIT, SIDE PLATE,
#80
4
1.3
99-146-004
SPRING, COMPRESSION, INLET
CHECK
2
1.16
11484-
01103
PIN, SS GROOVED CLEVIS w/
SNAP RING
4
1.4
99-146-006
SPRING, COMPRESSION,
RETAINER
2
1.17
93257
SHCS 5/16-18 x 1 1/4
4
1.5
99-110-006
BEARING, BALL, Ø3/8"
2
1.18
129169
LOCK WASHER, HI COLLAR,
ZINC PLATED
4
1.6
99-146-005
SPRING, COMPRESSION,
OUTLET CHECK
2
2
99-144-007
O-RING, MANIFOLD, 3" OD
1
1.7
99-116-005
FITTING, HYDRAULIC, 04MORB
HOLLOW HEX PLUG
3
3
99-116-001
SUCTION FITTING, MINI
MANIFOLD
1
1.8
99-153-038
FLOW CONTROL, PRES.
COMP., 1.0 GAL.
1
4
99-031-033
ACCESSORIES, NIPPLE, CLOSE
PIPE
1
1.9
99-153-006
VALVE, PRESSURE RELIEF, 210
BAR
1
5
99-031-029
ACCESSORIES, HYDRAULIC
1
1.10
99-153-080
VALVE, CARTRIDGE
w/TOGGLE ARM
1
6
99-145-061
Clamp, Worm Gear Hose, 2
13/16 - 3 3/4
1
1.11
99-144-015
SEAL, U-CUP
2
7
01-023-008
RESERVOIR, OIL
1
1.12
99-041-004
PLUNGER/PISTON, PUMP
2
8
99-616-001
ASSEMBLY, BREATHER
1
