TABLE OF CONTENTS Rev. 8/15/2023 LLW, MANUAL
TABLE OF CONTENTS COPYRIGHT 2021 VESTIL MANUFACTURING CO. Page 7 of 22
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
42-514-034
WELDMENT, FRAME
1
15
21-027-003
ROLLER, GUIDE ROLLER
8
2
42-513-006
WELDMENT, DECK
1
16
21-017-087
STIFFENER, BAR
1
3
21-042-002-
001
HAND WINCH, ONE PIECE STRAIGHT
HANDLE GRIP
1
17
11107
HEX BOLT, GRADE A, ZINC FINISH,
3/8"-16 x 1-1/4"
5
4
21-527-002
SUB-ASSEMBLY, ROLLER W/ BUSHING
2
18
33622
SPLIT LOCK WASHER, CARBON STEEL,
MEDIUM ZINC FINISH, 3/8"
5
5
16-132-058
WHEEL, POLY ON POLY
2
19
36106
HEX NUT, GRADE A, ZINC PLATED,
3/8-16
5
6
68015
EXTERNAL RETAINING
RING,PHOSPHATE, 3/4"
2
20
21-145-013
SPECIALTY HARDWARE, THIMBLE
1
7
33018
USS FLAT WASHER, Z PLATED, Ø 3/4"
4
21
21-145-014
SPECIALTY HARDWARE, Ø3/16" AIR
CRAFT CABLE
1
8
21-112-003
PIN, Ø1/2 X 1-15/16 LG RETAINING
CLEVIS
3
22
13-025-004-002
HANDLE, WITH HOLES
1
9
65107
COTTER PIN, ZINC FINISH, Ø5/32" X
2"
3
23
31802
SCREW, SELF-TAPPING SCREW
2
10
21-527-001
SUB-ASSEMBLY, PULLEY W/BUSHING
1
24
99-145-067
COMPRESSION SLEEVE Ø3/16" X 1"
LG
1
11
16-132-009
PP-4/1.25-W
2
25
21-001-132
FINAL ASSEMBLY W/O SHIPPING
1
12
11113
HEX BOLT, GRADE A, PLAIN FINISH,
3/8"-16 X 2-1/2"
2
26
27560
#10-32 x 3/4 LG SLOTTED MACHINE
SCREW
4
13
37024
NYLON INSERT LOCK NUT, GRADE 2,
ZINC FINISH, 3/8"-16
2
27
37015
10-32 NYLOCK NUT Z-PLATED
4
14
21-112-002
PIN. ROLLER
4
ALLW-2020-FWFL

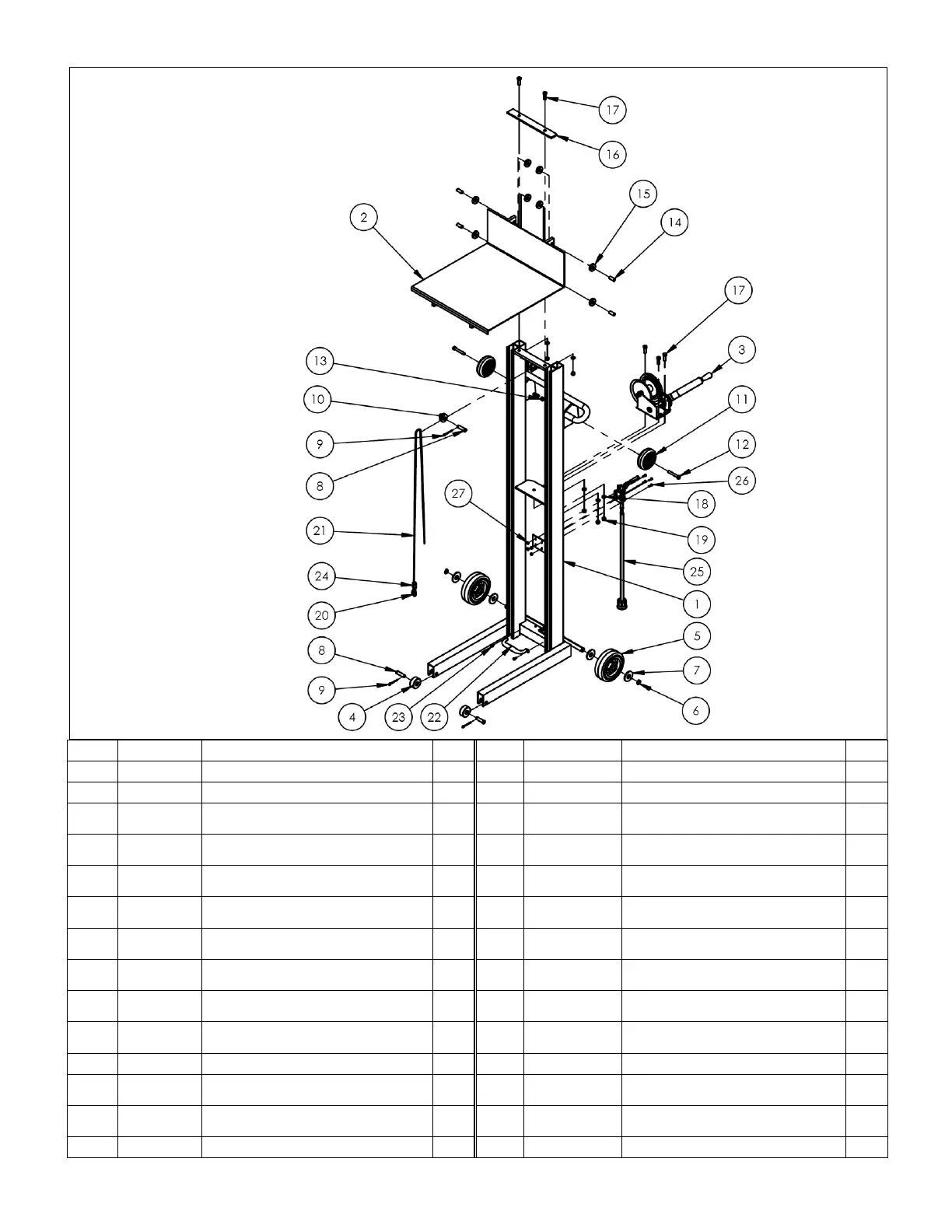

EXPLODED VIEW & BILL OF MATERIALS
42-006-028
