TABLE OF CONTENTS Rev. 8/15/2023 LLW, MANUAL
TABLE OF CONTENTS COPYRIGHT 2021 VESTIL MANUFACTURING CO. Page 5 of 22
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
21-514-005
WELDMENT, FRAME
1
12
11113
HEX BOLT, GRADE A, PLAIN FINISH,
3/8"-16 X 2-1/2"
2
2
21-513-002
WELDMENT, DECK
1
13
37024
NYLON INSERT LOCK NUT, GRADE 2,
ZINC FINISH, 3/8"-16
2
3
21-042-002-
001
HAND WINCH, ONE PIECE STRAIGHT
HANDLE GRIP
1
14
21-112-002
PIN. ROLLER
4
4
21-527-002
SUB-ASSEMBLY, ROLLER W/ BUSHING
2
15
21-027-003
ROLLER, GUIDE
8
5
16-132-058
WHEEL, POLY ON POLY
2
16
11107
HEX BOLT, GRADE A, ZINC FINISH,
3/8"-16 x 1-1/4"
5
6
68015
EXTERNAL RETAINING
RING,PHOSPHATE, 3/4"
2
17
33622
SPLIT LOCK WASHER, CARBON STEEL,
MEDIUM ZINC FINISH, 3/8"
5
7
33018
USS FLAT WASHER, Z PLATED, Ø 3/4"
4
18
36106
HEX NUT, GRADE A, ZINC PLATED, 3/8-
16
5
8
21-112-003
PIN, Ø1/2 X 1-15/16 LG RETAINING
CLEVIS
3
19
21-145-013
SPECIALTY HARDWARE, THIMBLE
1
9
65107
COTTER PIN, ZINC FINISH, Ø5/32" X 2"
3
20
99-145-067
COMPRESSION SLEEVE Ø3/16" X 1" LG
1
10
21-527-001
SUB-ASSEMBLY, PULLEY W/BUSHING
1
21
21-145-014
SPECIALTY HARDWARE, Ø3/16" AIR
CRAFT CABLE
1
11
16-132-009
PP-4/1.25-W
2
22
21-017-155
BAR, RETAINER
1
LLW-202058-FW

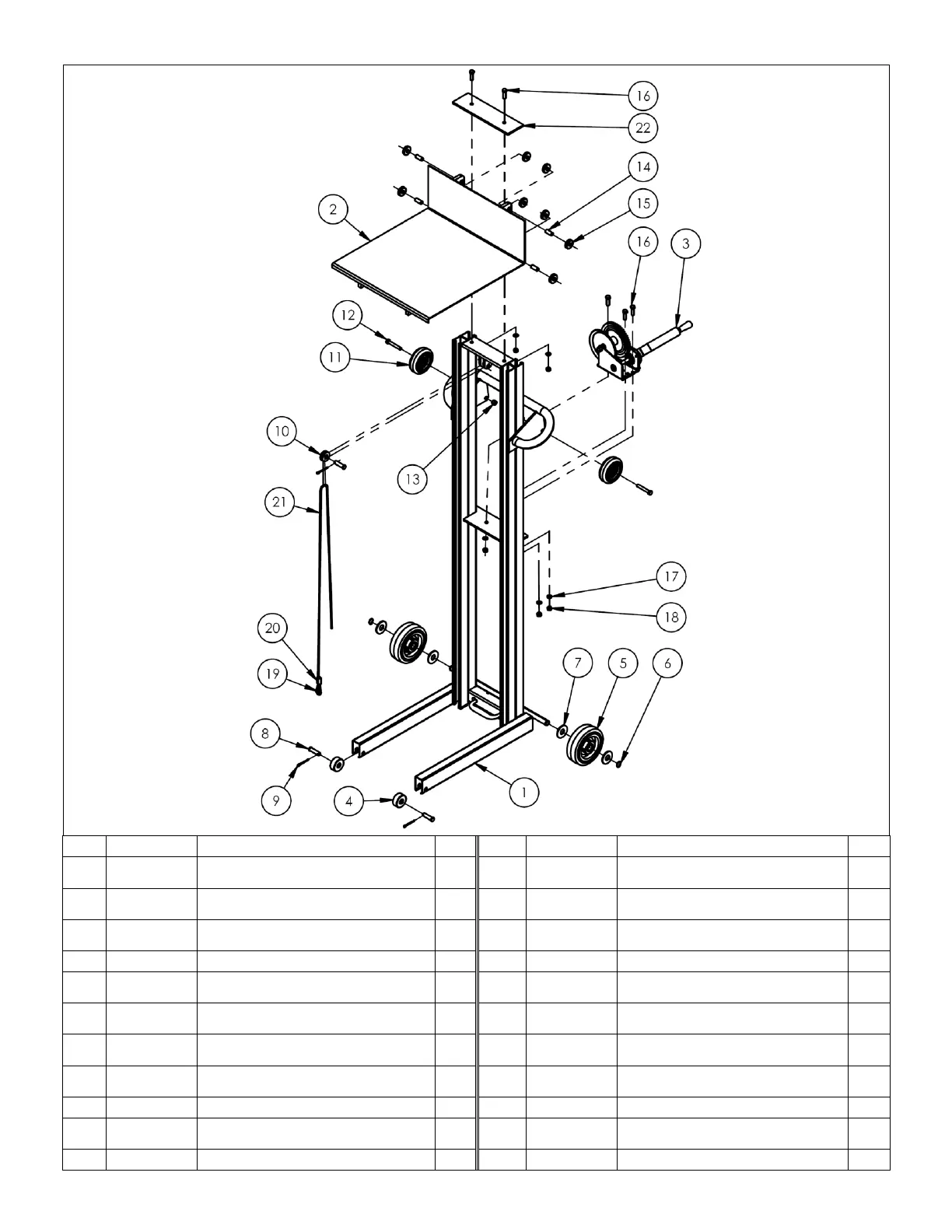

EXPLODED VIEW & BILL OF MATERIALS
21-006-005
