TABLE OF CONTENTS Rev. 8/15/2023 LLW, MANUAL
TABLE OF CONTENTS COPYRIGHT 2021 VESTIL MANUFACTURING CO. Page 16 of 22
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
42-514-006
WELDMENT, FRAME
1
13.4
40307
HEX NUT, CLASS 8, ZINC PLATED, M8-
1.25
1
2
33-513-093
WELDMENT, DECK
1
14
21-017-155
BAR, RETAINER
1
3
33018
USS FLAT WASHER, Z PLATED, Ø 3/4"
4
15
33622
SPLIT LOCK WASHER, CARBON STEEL,
MEDIUM ZINC FINISH, 3/8"
5
4
68015
EXTERNAL RETAINING RING,PHOSPHATE,
3/4"
2
16
11107
HEX BOLT, GRADE A, ZINC FINISH,
3/8"-16 x 1-1/4"
5
5
21-027-003
ROLLER, GUIDE
8
17
36106
HEX NUT, GRADE A, ZINC PLATED, 3/8-
16
5
6
21-112-002
PIN. ROLLER
4
18
27560
#10-32 x 3/4 LG SLOTTED MACHINE
SCREW
4
7
16-132-009
PP-4/1.25-W
2
19
33074
SAE FLAT WASHER, Z-PLATED, 3/16"
(#10)
4
8
11113
HEX BOLT, GRADE A, PLAIN FINISH, 3/8"-
16 X 2-1/2"
2
20
33614
LOCK WASHER, Z-PLATED, #10
4
9
37024
NYLON INSERT LOCK NUT, GRADE 2,
ZINC FINISH, 3/8"-16
2
21
36030
10-32 HEX NUT
4
10
16-132-011
CASTER SWIVEL, 4X2
4
22
21-042-002-
001
HAND WINCH, ONE PIECE STRAIGHT
HANDLE GRIP
1
11
16-132-200
CASTER, PP-8/2-W, RED
2
23
21-112-003
PIN, Ø1/2 X 1-15/16 LG RETAINING
CLEVIS
1
12
99-612-001
PIN, BULLDOG BOLT AND NUT ASSEMBLY
4
24
21-145-013
SPECIALTY HARDWARE, THIMBLE
1
13
21-001-132
FINAL ASSEMBLY W/O SHIPPING
1
25
21-527-001
SUB-ASSEMBLY, PULLEY W/BUSHING
1
13.1
21-145-001
SPECIALTY HARDWARE, PUSH-PULL
CLAMP
1
26
21-145-014
SPECIALTY HARDWARE, Ø3/16" AIR
CRAFT CABLE
1
13.2
21-537-006
WELDMENT, FLOOR LOCK
1
27
65107
COTTER PIN, ZINC FINISH, Ø5/32" X 2"
1
13.3
14-037-005
RUBBER STOP CRUTCH TIP
1
28
99-145-067
COMPRESSION SLEEVE Ø3/16" X 1" LG
1
LLPW-500-4SFL

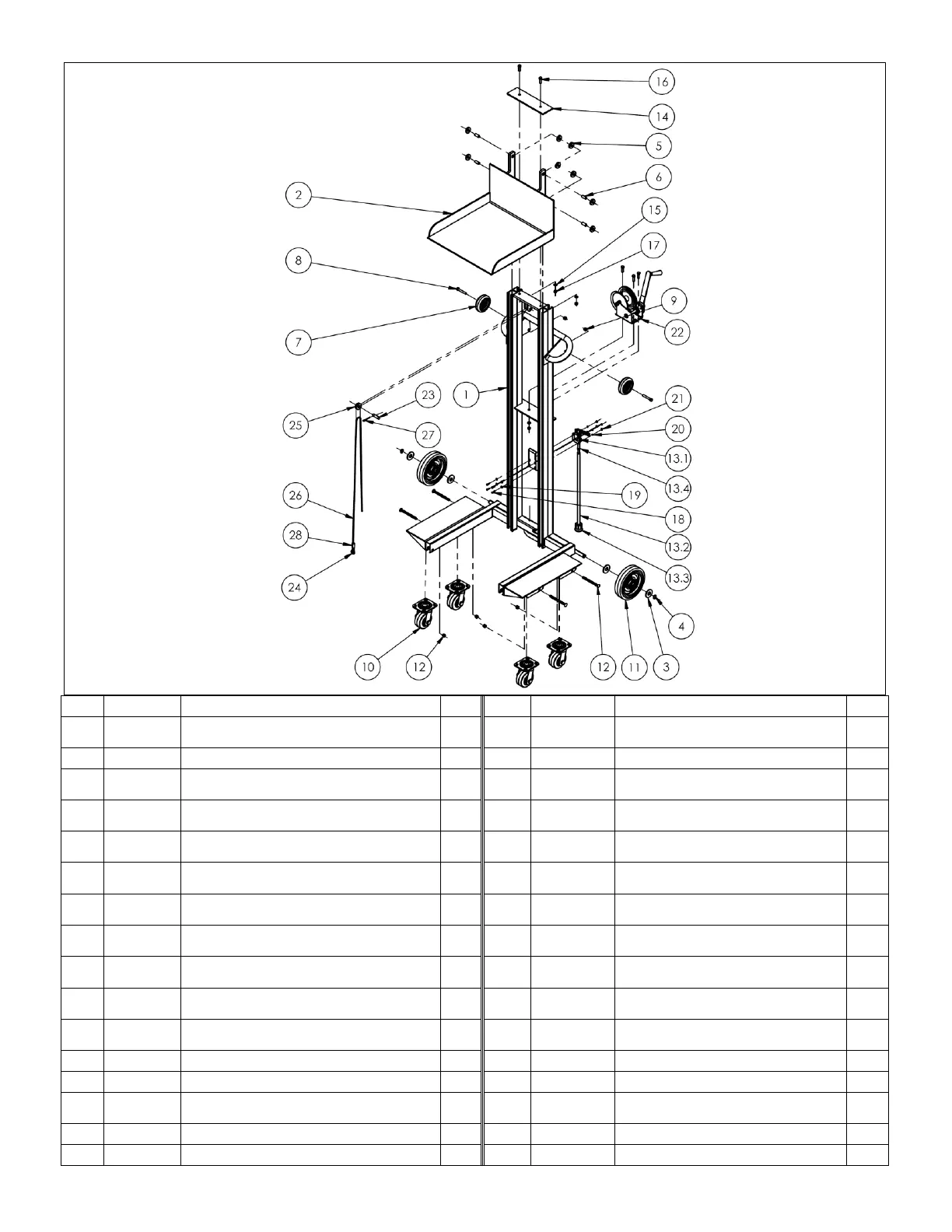

Exploded View & Bill of Materials
42-006-001
