TABLE OF CONTENTS Rev. 8/15/2023 LLW, MANUAL
TABLE OF CONTENTS COPYRIGHT 2021 VESTIL MANUFACTURING CO. Page 12 of 22
LLPW-500-FW

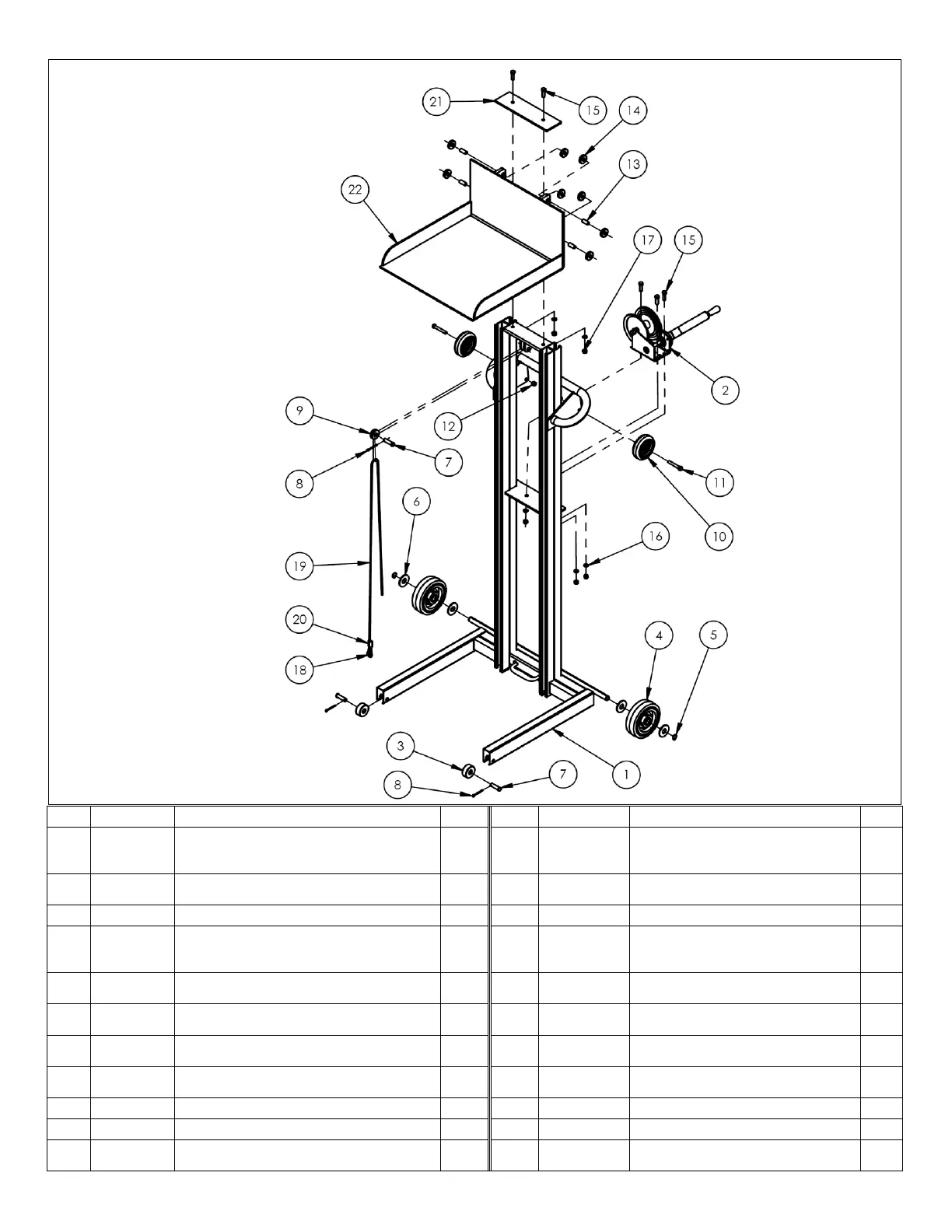

EXPLODED VIEW & BILL OF MATERIALS
42-006-011
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
33-514-056
WELDMENT, FRAME
1
12
37024
NYLON INSERT LOCK NUT, GRADE 2,
ZINC
FINISH, 3/8"-16
2
2
21-042-
002-001
HAND WINCH, ONE PIECE STRAIGHT
HANDLE GRIP
1
13
21-112-002
PIN. ROLLER
4
3
21-527-002
SUB-ASSEMBLY, ROLLER W/ BUSHING
2
14
21-027-003
ROLLER, GUIDE
8
4
16-132-058
WHEEL, POLY ON POLY
2
15
11107
HEX BOLT, GRADE A, ZINC FINISH,
3/8"-16
x 1-1/4"
5
5
68015
EXTERNAL RETAINING RING,PHOSPHATE,
3/4"
2
16
33622
SPLIT LOCK WASHER, CARBON STEEL,
MEDIUM ZINC FINISH, 3/8"
5
6
33018
USS FLAT WASHER, Z PLATED, Ø 3/4"
4
17
36106
HEX NUT, GRADE A, ZINC PLATED, 3/8-
16
5
7
21-112-003
PIN, Ø1/2 X 1-15/16 LG RETAINING
CLEVIS
3
18
21-145-013
SPECIALTY HARDWARE, THIMBLE
1
8
65107
COTTER PIN, ZINC FINISH, Ø5/32" X 2"
3
19
21-145-014
SPECIALTY HARDWARE, Ø3/16" AIR
CRAFT CABLE
1
9
21-527-001
SUB-ASSEMBLY, PULLEY W/BUSHING
1
20
99-145-067
COMPRESSION SLEEVE Ø3/16" X 1" LG
1
10
16-132-009
PP-4/1.25-W
2
21
21-017-155
BAR, RETAINER
1
11
11113
HEX BOLT, GRADE A, PLAIN FINISH, 3/8"-
16 X 2-1/2"
2
22
33-513-032
WELDMENT, DECK
1
