Table of Contents Rev. 10/2/2020 LLW MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 17 of 21
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
21-514-075 WELDMENT, FRAME 1
15
36106
HEX NUT, GRADE A, ZINC PLATED,
3/8-16
5
2
21-513-038
WELDMENT, DECK
1
16
21-017-087
STIFFENER, BAR
1
3
21-527-001
SUB-ASSEMBLY, PULLEY
W/BUSHING
1
17
21-112-003
PIN, Ø1/2 X 1-15/16 LG RETAINING
CLEVIS
1
4
21-001-132 FINAL ASSEMBLY W/O SHIPPING 1
18
65107
COTTER PIN, ZINC FINISH, Ø5/32" X
2"
1
5
33018
USS FLAT WASHER, Z PLATED, Ø
3/4"
4
19
21-145-014
SPECIALTY HARDWARE, Ø3/16"
AIR CRAFT CABLE
1
6
68015
EXTERNAL RETAINING
RING,PHOSPHATE, 3/4"
2
20
21-145-013 SPECIALTY HARDWARE, THIMBLE 1
7
42-027-005
ROLLER, GUIDE ROLLER
8
21
16-132-011
CASTER SWIVEL, 4X2
4
8
21-112-002
PIN. ROLLER
4
22
16-132-200
CASTER, PP-8/2-W, RED
2
9
16-132-009 PP-4/1.25-W 2
23
13-025-004-
002
HANDLE, WITH HOLES 1
10
11113
HEX BOLT, GRADE A, PLAIN FINISH,
3/8"-16 X 2-1/2"
2
24
31802 SCREW, SELF-TAPPING SCREW 2
11
37024
NYLON INSERT LOCK NUT, GRADE
2, ZINC FINISH, 3/8"-16
2
25
99-612-001
PIN, BULLDOG BOLT AND NUT
ASSEMBLY
4
12
21-042-
002-001
HAND WINCH, ONE PIECE
STRAIGHT HANDLE GRIP
1
26
27560
#10-32 x 3/4 LG SLOTTED MACHINE
SCREW
4
13
11107
HEX BOLT, GRADE A, ZINC FINISH,
3/8"-16 x 1-1/4"
5
27
37015 10-32 NYLOCK NUT Z-PLATED 4
14
33622
SPLIT LOCK WASHER, CARBON
STEEL, MEDIUM ZINC FINISH, 3/8"
5
28
99-145-067
COMPRESSION SLEEVE Ø3/16" X 1"
LG
1

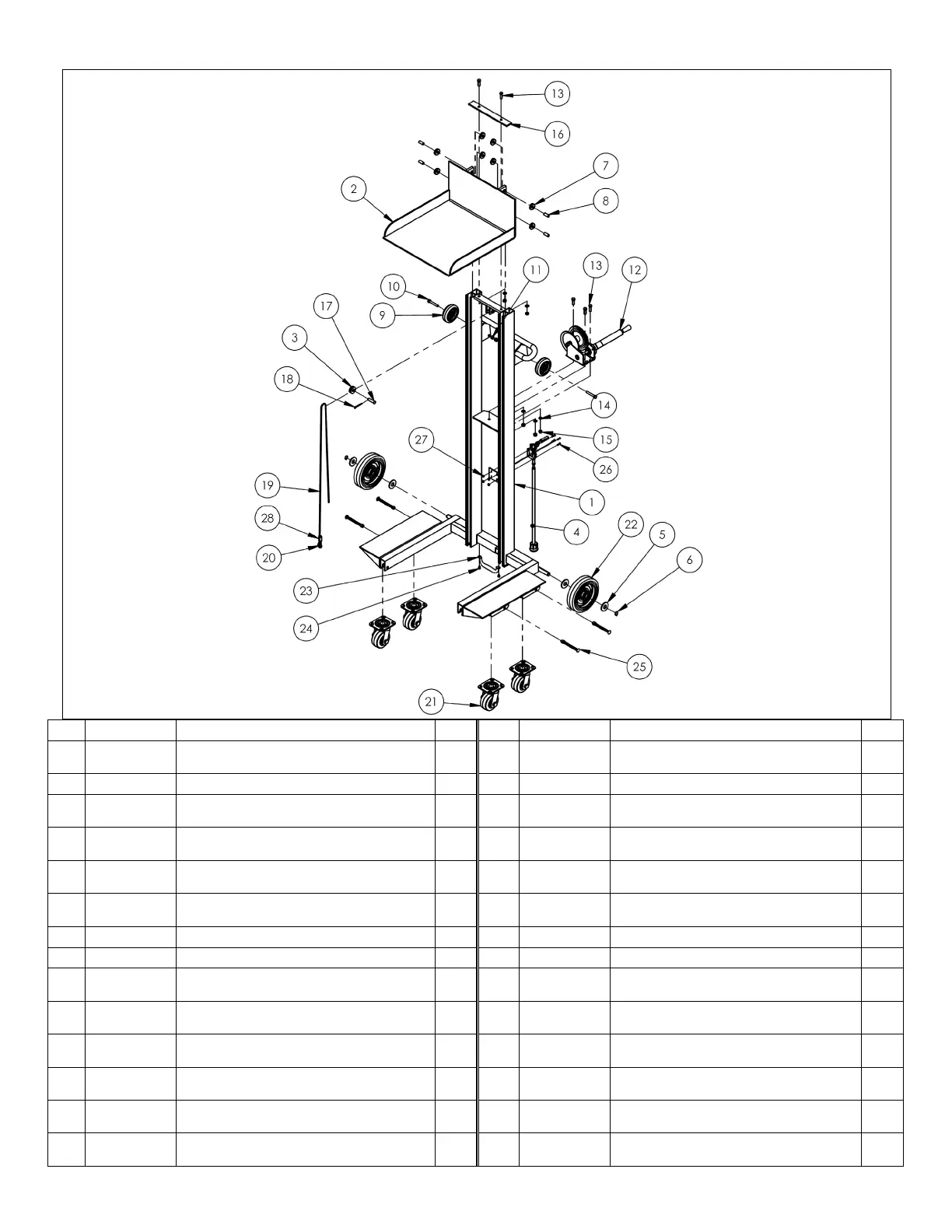

Exploded View & Bill of Materials
ALLPW-500-4SFL
21-006-061
