Table of Contents Rev. 10/2/2020 LLW MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 15 of 21
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
42-514-036 WELDMENT, FRAME 1
15
33622
SPLIT LOCK WASHER, CARBON
STEEL, MEDIUM ZINC FINISH, 3/8"
5
2
21-513-038 WELDMENT, DECK 1
16
36106
HEX NUT, GRADE A, ZINC
PLATED, 3/8-16
5
3
16-132-058
WHEEL, POLY ON POLY
2
17
21-017-087
STIFFENER, BAR
1
4
33018
USS FLAT WASHER, Z PLATED,
Ø 3/4"
4
18
21-527-001
SUB-ASSEMBLY, PULLEY
W/BUSHING
1
5
68015
EXTERNAL RETAINING
RING,PHOSPHATE, 3/4"
2
19
21-145-014
SPECIALTY HARDWARE, Ø3/16"
AIR CRAFT CABLE
1
6
21-112-003
PIN, Ø1/2 X 1-15/16 LG
RETAINING CLEVIS
3
20
21-145-013 SPECIALTY HARDWARE, THIMBLE
1
7
65107
COTTER PIN, ZINC FINISH,
Ø5/32" X 2"
3
21
13-025-004-
002
HANDLE, WITH HOLES 1
8
42-027-005
ROLLER, GUIDE ROLLER
8
22
31802
SCREW, SELF-TAPPING SCREW
2
9
21-112-002 PIN. ROLLER 4
23
21-527-002
SUB-ASSEMBLY, ROLLER W/
BUSHING
2
10
16-132-009 PP-4/1.25-W 2
24
99-145-067
COMPRESSION SLEEVE Ø3/16" X
1" LG
1
11
11113
HEX BOLT, GRADE A, PLAIN
FINISH, 3/8"-16 X 2-1/2"
2
25
21-001-132 FINAL ASSEMBLY W/O SHIPPING 1
12
37024
NYLON INSERT LOCK NUT,
GRADE 2, ZINC FINISH, 3/8"-16
2
26
27560
#10-32 x 3/4 LG SLOTTED
MACHINE SCREW
4
13
21-042-
002-001
HAND WINCH, ONE PIECE
STRAIGHT HANDLE GRIP
1
27
37015 10-32 NYLOCK NUT Z-PLATED 4
14
11107
HEX BOLT, GRADE A, ZINC
FINISH, 3/8"-16 x 1-1/4"
5
Floor lock
mounting
bracket

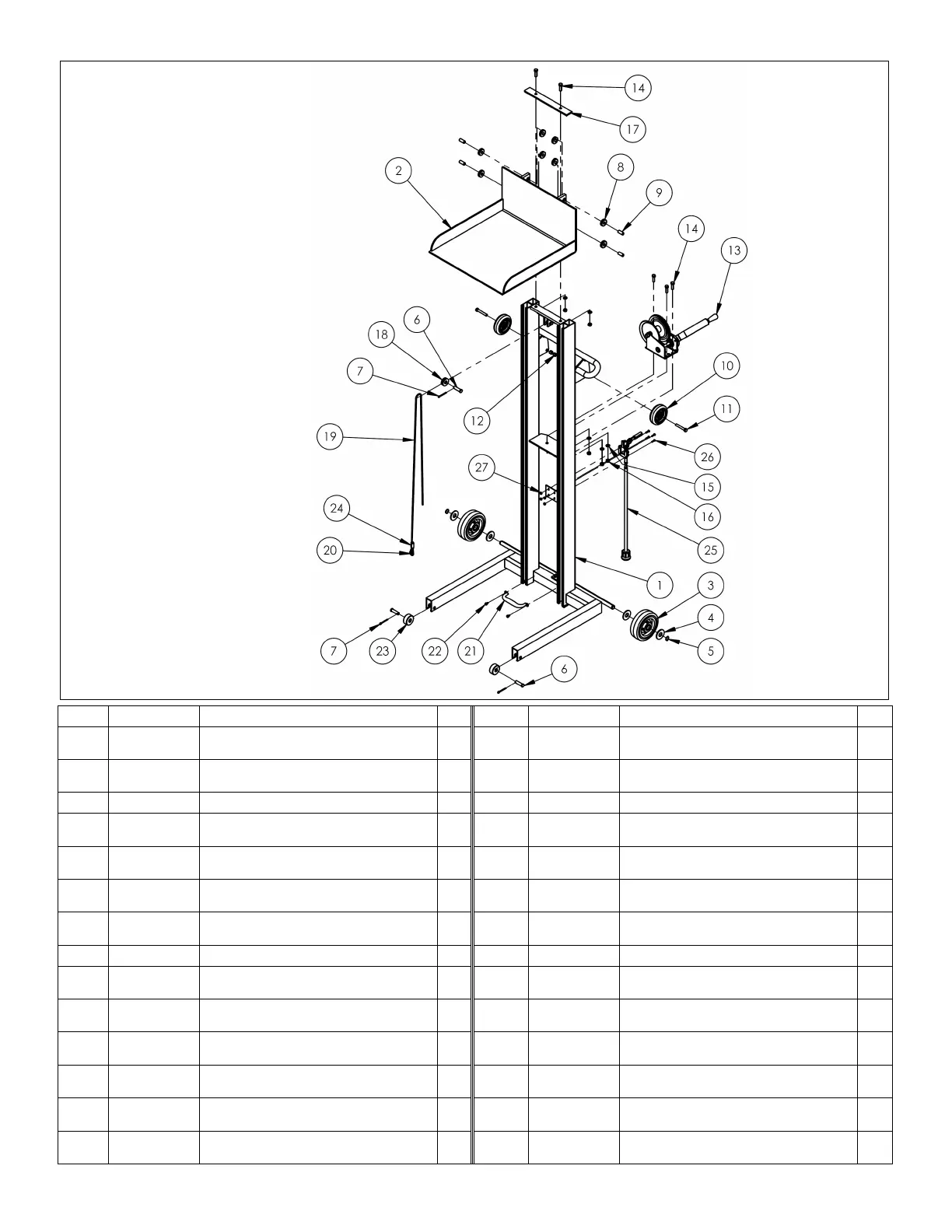

Exploded View & Bill of Materials
ALLPW-500-FWFL
42-006-030
