Table of Contents Rev. 10/2/2020 LLW MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 12 of 21

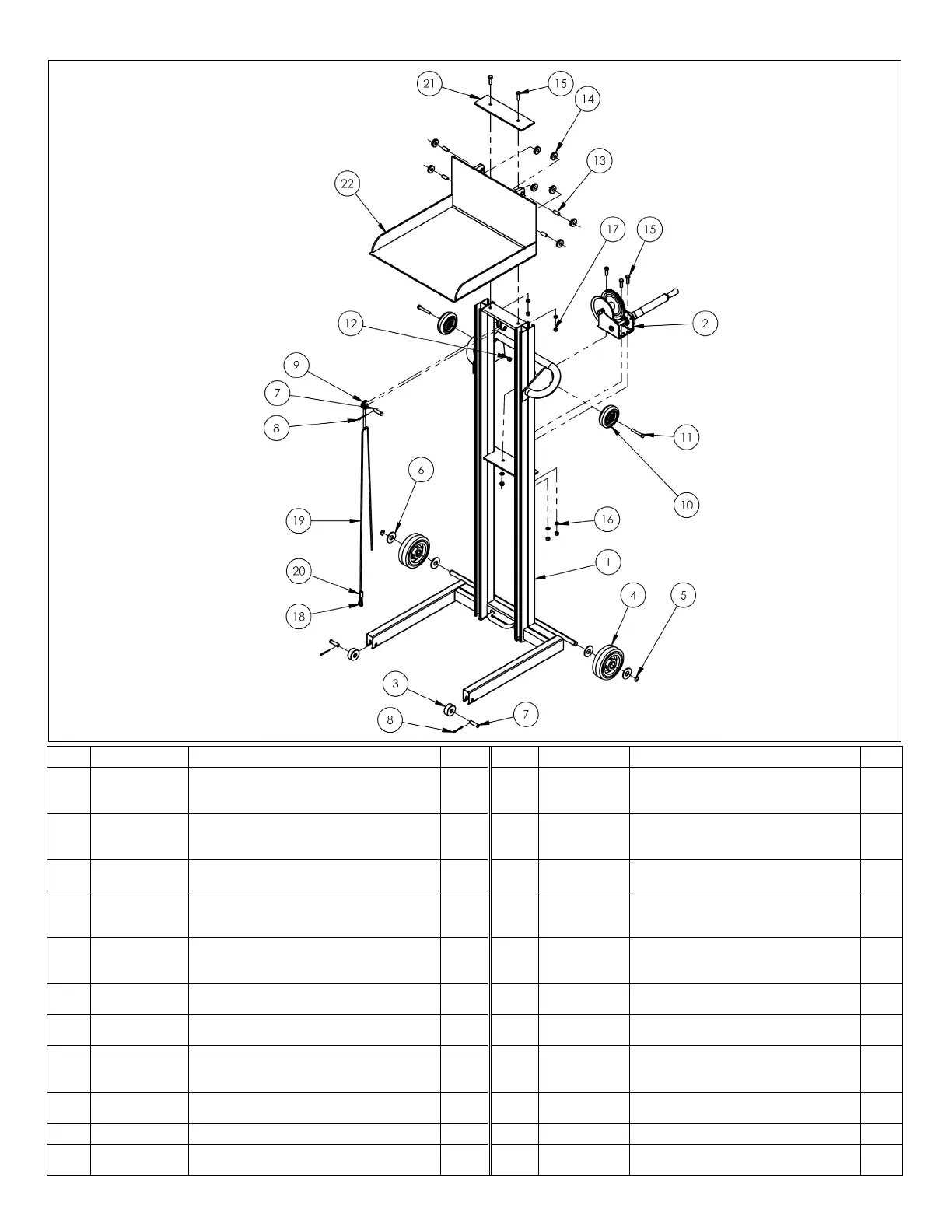

Exploded View & Bill of Materials:
LLPW-500-FW
42-006-011
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1 33-514-056 WELDMENT, FRAME 1 12 37024
NYLON INSERT LOCK NUT, GRADE
2, ZINC
FINISH, 3/8"-16
2
2
21-042-002-
001
HAND WINCH, ONE PIECE
STRAIGHT
HANDLE GRIP
1 13 21-112-002 PIN. ROLLER 4
3 21-527-002
SUB-ASSEMBLY, ROLLER W/
BUSHING
2 14 21-027-003 ROLLER, GUIDE 8
4 16-132-058 WHEEL, POLY ON POLY 2 15 11107
HEX BOLT, GRADE A, ZINC FINISH,
3/8"-16
x 1-1/4"
5
5 68015
EXTERNAL RETAINING
RING,PHOSPHATE,
3/4"
2 16 33622
SPLIT LOCK WASHER, CARBON
STEEL,
MEDIUM ZINC FINISH, 3/8"
5
6 33018
USS FLAT WASHER, Z PLATED, Ø
3/4"
4 17 36106
HEX NUT, GRADE A, ZINC PLATED,
3/8-16
5
7 21-112-003
PIN, Ø1/2 X 1-15/16 LG RETAINING
CLEVIS
3 18 21-145-013 SPECIALTY HARDWARE, THIMBLE 1
8 65107
COTTER PIN, ZINC FINISH, Ø5/32" X
2"
3 19 21-145-014
SPECIALTY HARDWARE, Ø3/16"
AIR
CRAFT CABLE
1
9 21-527-001
SUB-ASSEMBLY, PULLEY
W/BUSHING
1 20 99-145-067
COMPRESSION SLEEVE Ø3/16" X
1" LG
1
10
16-132-009 PP-4/1.25-W 2
21
21-017-155 BAR, RETAINER 1
11 11113
HEX BOLT, GRADE A, PLAIN FINISH,
3/8"-16 X 2-1/2"
2 22 33-513-032 WELDMENT, DECK 1
