REV I | 8/6/19
17
8.1.2 Air Connection—Hand Valve (29-950)
Connect air to the ratchet as follows:
1. Connect the end of the hose segment to the air inlet on the ratchet cylinder.
2. Run air hose under bucket where bucket pivot pin is located. Attach hose to clips at
current hose junction.
3. Remove hex plug from top port (R) on hand valve (V).
4. Thread hose barb into top port (R) on hand valve, then connect hose to barb.
NOTE: The bottom port (T) connects to the airbag, and the left hand port (S) connects to
theregulator.Amuerisinstalledintherighthandport(U).
U
T
S
R

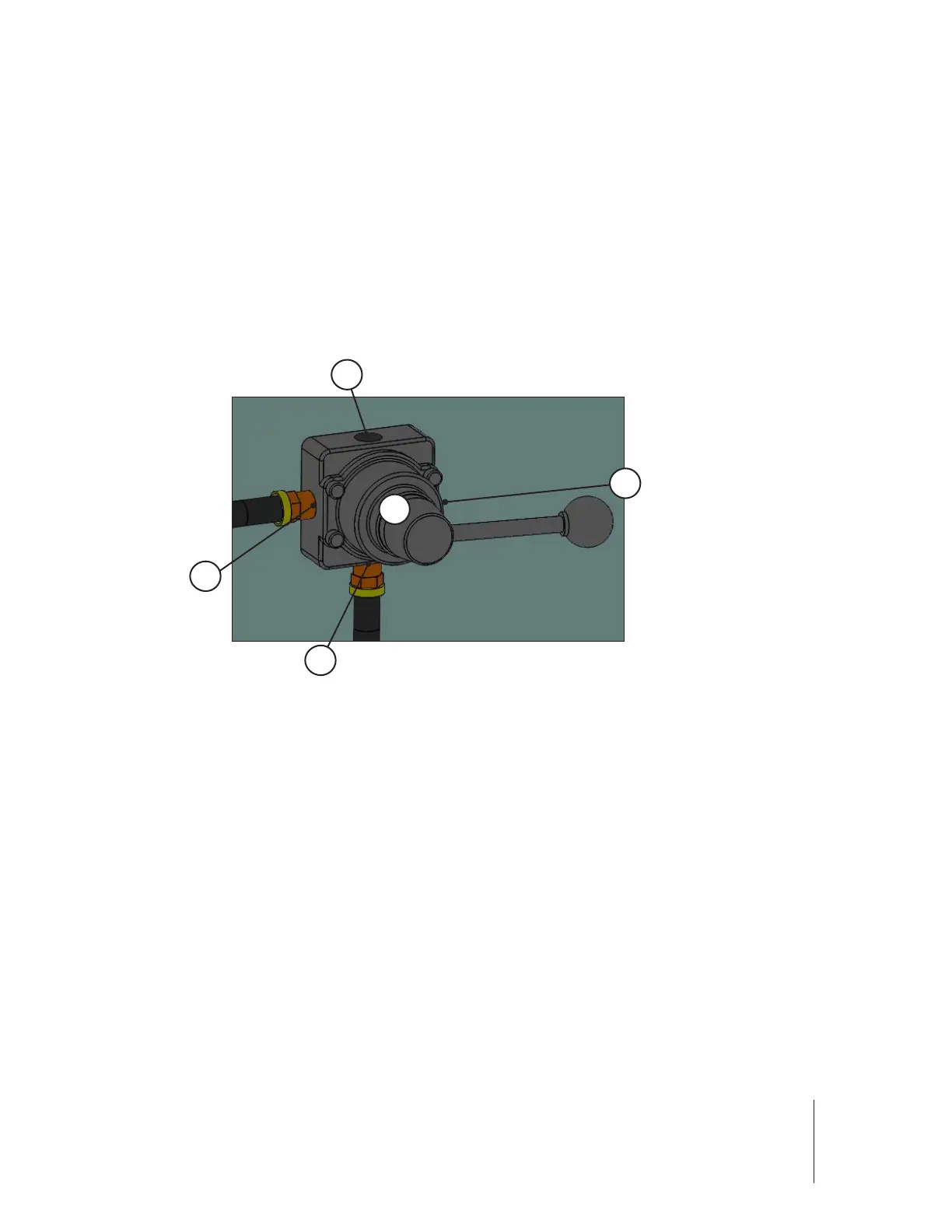

Figure 6
V
R) Top Port
S) Left Hand Port
T) Bottom Port
U) Right Hand Port
V) Hand Valve
8.1.3 Air Connection—Food Pedal (29-900)
Connect air to the ratchet as follows:
1. Connect the end of the hose segment to the air inlet on the ratchet cylinder.
2. Run air hose under bucket where bucket pivot pin is located. Attach hose to clips at
current hose junction.
3. Unbolt foot pedal from mount plate.
4. Removehexplugfromfrontlefthandportonfootpedalandreplacewithmuer.
5. Remove hex plug from front right hand port on foot pedal. Install the following items
in the order listed: hex nipple, female elbow, and hose barb. Connect hose to hose barb.
NOTE: The rear left hand port connects to the regulator and the rear right hand port
connects to the airbag.
6. Bolt foot pedal to mount plate.
8.1.4 Final Adjustments
1. Restore air pressure to FLT.
2. Using foot pedal or hand valve, raise the empty FLT bucket.
