Table of Contents Rev. 5/28/2025 AHSN, MANUAL
Table of Contents Copyright 2025 Vestil Manufacturing Co. Page 6 of 26
*Part numbers 19211-A & 19211-B equivalent to, and interchangeable with, part no. 0129020.
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
28-014-384
FRAME, DOMESTIC STEEL I-BEAM
1
9
33006
FLAT WASHER,ZINC PLATED,USS,
Ø5/16"
16
2
28-514-237
WELDMENT, STEEL LEG YOKE
2
10
28-112-027
PIN, AXLE, PIVOT, ROLLER
2
3
16-132-249
CASTER, LOCKING
4
11
28-112-007
HARDWARE, RETAINING PIN Ø3/4
X 6 5/8
2
4
33626
LOCK WASHER Z PLATED, Ø 1/2
8
12
45282
#6 HITCH PIN CLIP
2
*5
19211-A
Ø1/2-13 NUT - COMES W/BOLT IN
COMBO #19211
8
13
11359
HHCS #2 Z-PLATED, 3/4 -10 x 1 1/2
4
*6
19211-B
Ø1/2-13 x 2" A325 BOLT(ORDER
COMBO #19211 W/NUT)
8
14
28-514-321
28-514-322
28-514-323
28-514-312
28-514-313
28-514-314
Weldment, upright assembly
AHSN-2-15-7
AHSN-2-15-9
AHSN-2-15-10
AHSN-2-15-12
AHSN-2-15-14
AHSN-2-15-16
2
2
2
2
2
2
7
33620
LOCK WASHER, MEDIUM SPLIT,
Ø5/16"
16
15
28-516-053
WELDMENT, I-BEAM CLAMP
4
8
11053
Ø 5/16 - 18 x 3/4 LG HHCS #2 Z-
PLATED,
GRADE A
16
16
28-514-316
28-514-317
28-514-318
28-514-319
28-514-320
28-514-320
Leg weldment
AHSN-2-15-7
AHSN-2-15-9
AHSN-2-15-10
AHSN-2-15-12
AHSN-2-15-14
AHSN-2-15-16
4
4
4
4
4
4

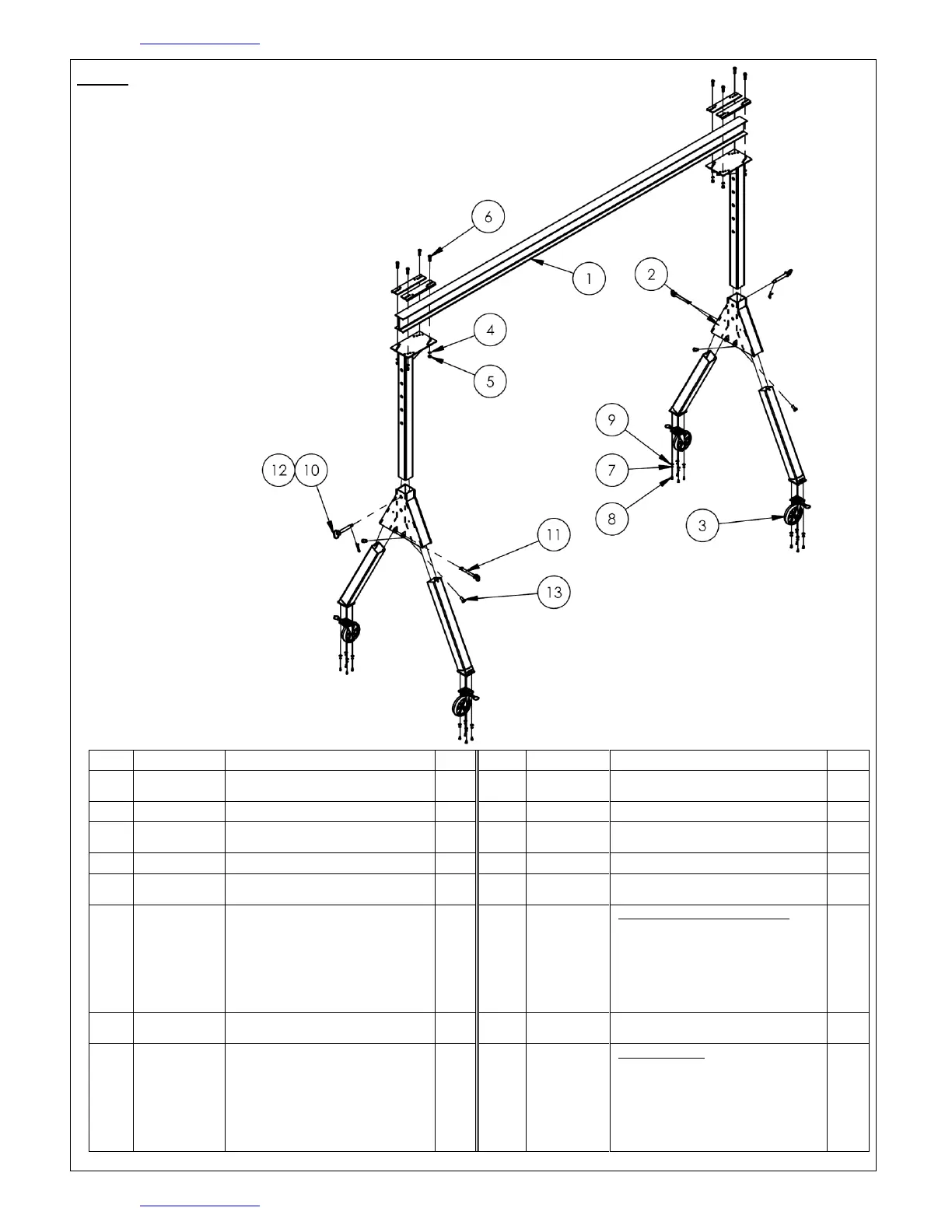

FIG. B: AHSN-2-15-7, AHSN-2-15-9, AHSN-2-15-10, AHSN-2-15-12,
AHSN-2-15-14, AHSN-2-15-16 Exploded View & Bill of
Materials
28-006-301
