Table of Contents Rev. 5/28/2025 AHSN, MANUAL
Table of Contents Copyright 2025 Vestil Manufacturing Co. Page 8 of 26
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
28-514-237
WELDMENT, STEEL LEG YOKE
2
9
11359
HHCS #2 Z-PLATED, 3/4 -10 x 1 1/2
4
2
33626
LOCK WASHER Z PLATED, Ø 1/2
8
10
28-514-009
28-514-010
28-514-124
Weldment, upright assembly:
AHSN-4-10-12
AHSN-4-10-14
AHSN-4-10-16
2
2
2
*3
19211-A
Ø1/2-13 NUT - COMES W/BOLT IN
COMBO #19211
8
11
28-514-009
WELDMENT, FRAME, UPRIGHT
2
*4
19211-B
Ø1/2-13 x 2" A325 BOLT(ORDER
COMBO #19211 W/NUT)
8
12
33624
LOCK WASHER, Z PLATED, Ø 7/16
16
5
28-112-027
PIN, AXLE, PIVOT, ROLLER
2
13
15155
HEX BOLT, GRADE A, Z PLATED,
Ø7/16"-14 x1"
16
6
28-112-007
HARDWARE, RETAINING PIN Ø3/4 X 6
5/8
2
14
28-514-241
28-514-242
28-514-242
Leg weldment:
AHSN-4-10-12
AHSN-4-10-14
AHSN-4-10-16
4
4
4
7
45282
#6 HITCH PIN CLIP
2
15
16-132-064
Ø8" x 3" PHENOLIC 4 WAY SWIVEL
LOCK CASTER
4
8
28-014-387
FRAME, DOMESTIC STEEL I-BEAM
1
*Part numbers 19211-A & 19211-B equivalent to, and interchangeable with, part no. 0129020.
17

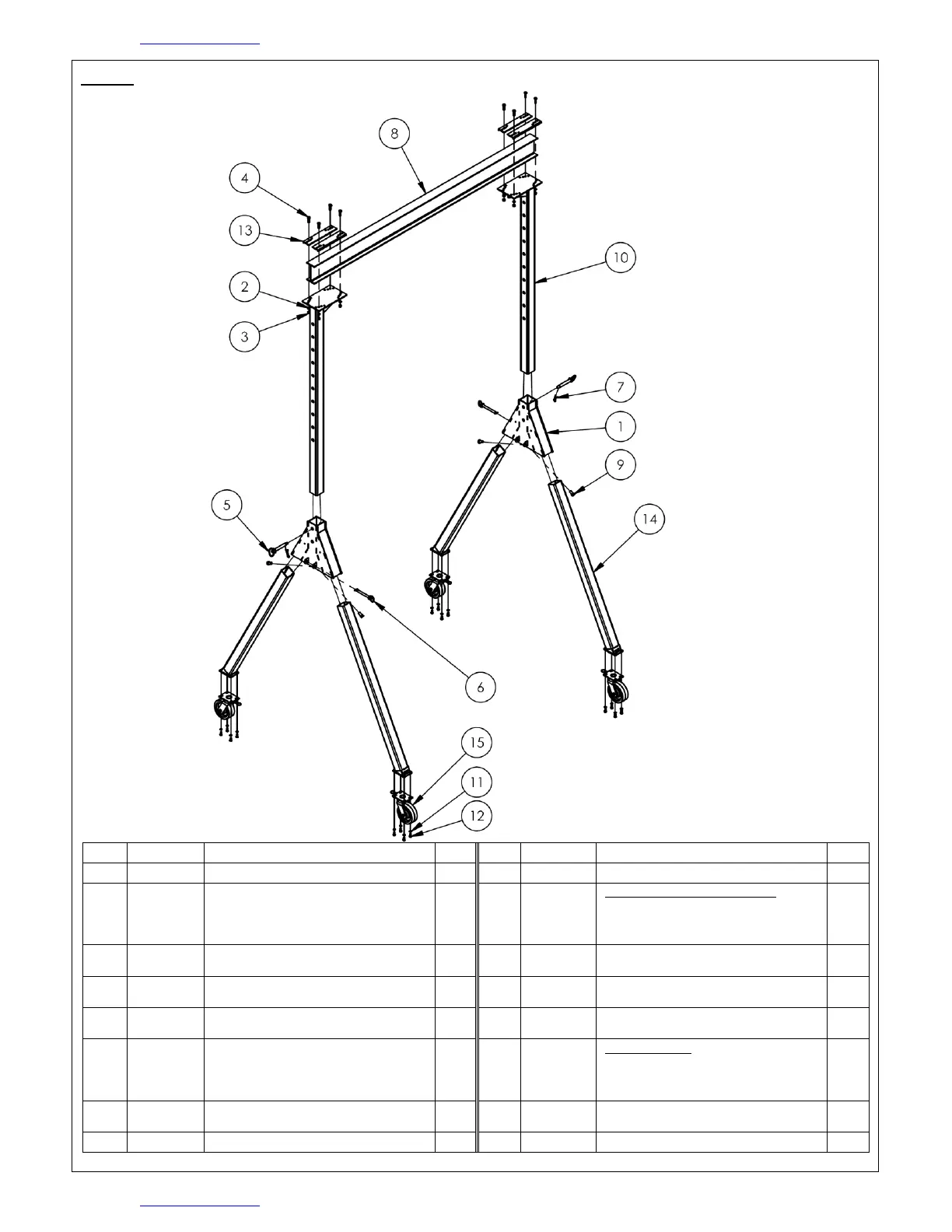

FIG. D: AHSN-4-10-12, AHSN-4-10-14, & AHSN-4-10-16 Exploded View & Bill of Materials
28-006-310
