Table of Contents Rev. 5/28/2025 AHSN, MANUAL
Table of Contents Copyright 2025 Vestil Manufacturing Co. Page 9 of 26
*Part numbers 19211-A & 19211-B equivalent to, and interchangeable with, part no. 0129020.
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
28-014-388
FRAME, DOMESTIC STEEL I-BEAM
1
9
28-516-053
WELDMENT, I-BEAM CLAMP
4
2
28-514-237
WELDMENT, STEEL LEG YOKE
2
10
28-514-238
28-514-239
28-514-240
28-514-241
28-514-242
28-514-242
Leg weldment::
AHSN-4-15-7
AHSN-4-15-9
AHSN-4-15-10
AHSN-4-15-12
AHSN-4-15-14
AHSN-4-15-16
4
4
4
4
4
4
3
28-514-151
28-514-150
28-514-149
28-514-009
28-514-010
28-514-124
Weldment, upright assembly:
AHSN-4-15-7
AHSN-4-15-9
AHSN-4-15-10
AHSN-4-15-12
AHSN-4-15-14
AHSN-4-15-16
2
2
2
2
2
2
11
28-112-027
PIN, AXLE, PIVOT, ROLLER
2
4
33626
LOCK WASHER Z PLATED, Ø1/2
8
12
28-112-007
HARDWARE, RETAINING PIN
Ø3/4 X 6 5/8
2
*5
19211-A
Ø1/2-13 NUT - COMES
W/BOLT IN COMBO #19211
8
13
45282
#6 HITCH PIN CLIP
2
*6
19211-B
Ø1/2-13 x 2" A325 BOLT (ORDER
COMBO #19211 W/NUT)
8
14
11359
HHCS #2 Z-PLATED, 3/4 -10
x 1 1/2
4
7
33624
LOCK WASHER, Z PLATED, Ø7/16
16
15
16-132-064
Ø8" x 3" PHENOLIC 4 WAY
SWIVEL LOCK CASTER
4
8
15155
HEX BOLT, GRADE A, Z PLATED,
Ø7/16"-14 x1"
16

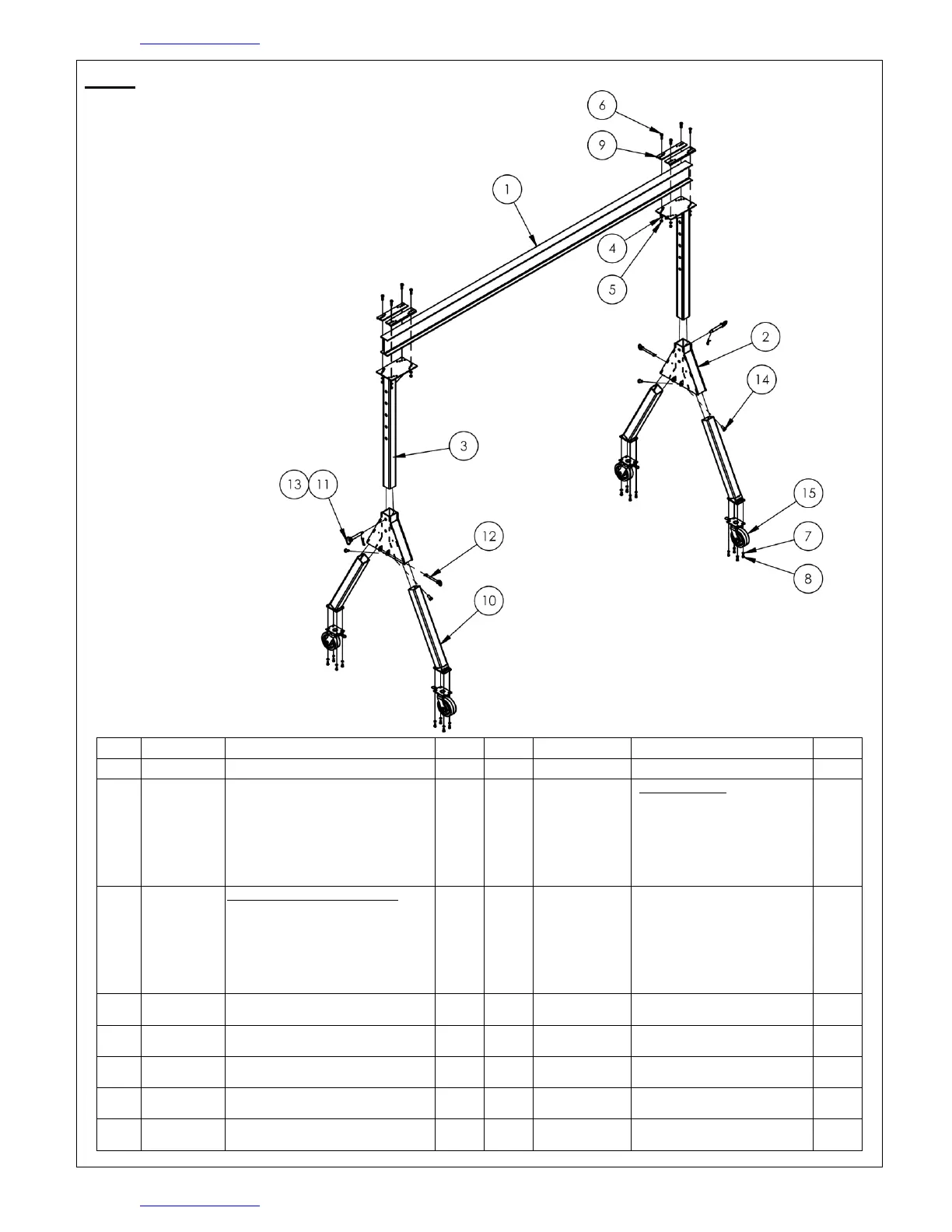

FIG. E: AHSN-4-15-7, AHSN-4-15-9, AHSN-4-15-10, AHSN-4-15-12, AHSN-4-15-14, &
AHSN-4-15-16 Exploded View & Bill of Materials
28-006-313
