Table of Contents Rev. 5/28/2025 AHSN, MANUAL
Table of Contents Copyright 2025 Vestil Manufacturing Co. Page 17 of 26
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
28-014-393
FRAME, DOMESTIC STEEL I-BEAM
1
13
13211
HHCS #5 Z PLATED, GRADE 5, 1/2"-13x2"
16
2
28-514-237
WELDMENT, STEEL LEG YOKE
2
14
28-514-256
WELDMENT, LEG SET CROSS BRACE
2
3
28-514-149
WELDMENT, FRAME, UPRIGHT
2
15
36109
HEX NUT, GRADE A, PLAIN FINISH, 1/2"-13
16
4
33626
LOCK WASHER Z PLATED, Ø 1/2
8
16
16-132-305
BATWING CASTER POSITION LOCK
4
5
19211-A
Ø1/2-13 NUT - COMES W/BOLT IN
COMBO #19211
8
17
28-514-259
WELDMENT, CROSS BRACE BOLT END
2
6
19211-B
Ø1/2-13 x 2" A325 BOLT(ORDER
COMBO #19211 W/NUT)
8
18
33008
FLAT WASHER, LOW CARBON, USS, ZINC
PLATED, 3/8"
2
7
28-516-053
WELDMENT, I-BEAM CLAMP
4
19
13111
HHCS #5 Z PLATED, GRADE 5, Ø3/8 - 16 x 2 LG
2
8
28-112-027
PIN, AXLE, PIVOT, ROLLER
2
20
36106
HEX NUT, GRADE A, ZINC PLATED, 3/8-16
2
9
28-112-007
HARDWARE, RETAINING PIN Ø3/4 X
6 5/8
2
21
11359
HHCS #2 Z-PLATED, 3/4 -10 x 1 1/2
4
10
45282
#6 HITCH PIN CLIP
2
22
15155
HEX BOLT, GRADE A, Z PLATED, Ø7/16"-14 x1"
16
11
28-514-240
WELDMENT, LEG
4
23
33624
LOCK WASHER, Z PLATED, Ø 7/16
16
12
16-132-243
CASTER, SWIVEL, Ø8 X 3 CASTER
4
24
33625
LOCK WASHER, MEDIUM SPLIT, PLAIN FINISH,
1/2"
16
*Part numbers 19211-A & 19211-B equivalent to, and interchangeable with, part no. 0129020.

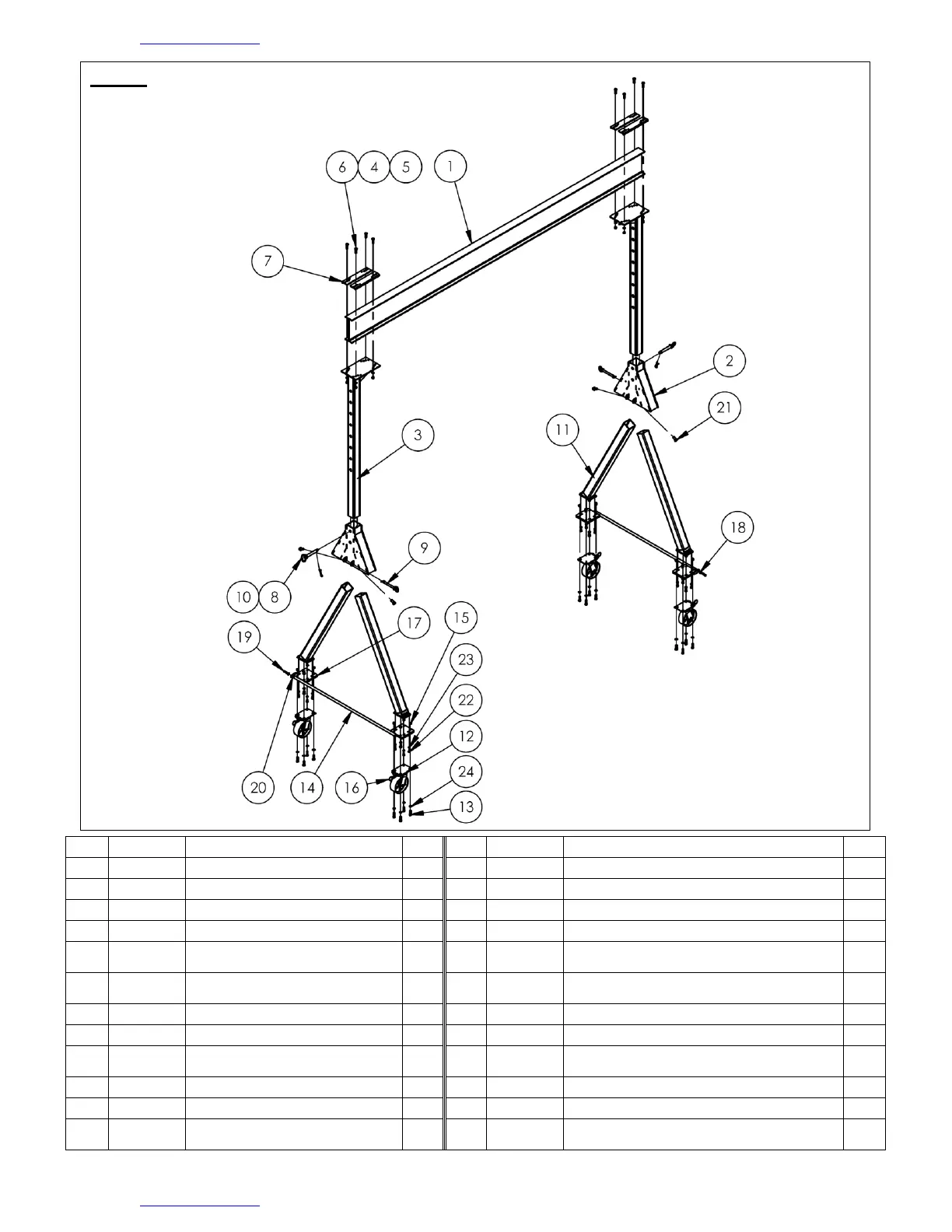

FIG. M: AHSN-10-15-10 Exploded View & Bill of Materials
28-006-346
