Table of Contents Rev. 5/28/2025 AHSN, MANUAL
Table of Contents Copyright 2025 Vestil Manufacturing Co. Page 15 of 26
FIG. K: AHSN-8-15-7, AHSN-8-15-9, AHSN-8-15-10, AHSN-8-
15-12, AHSN-8-15-14, & AHSN-8-15-16

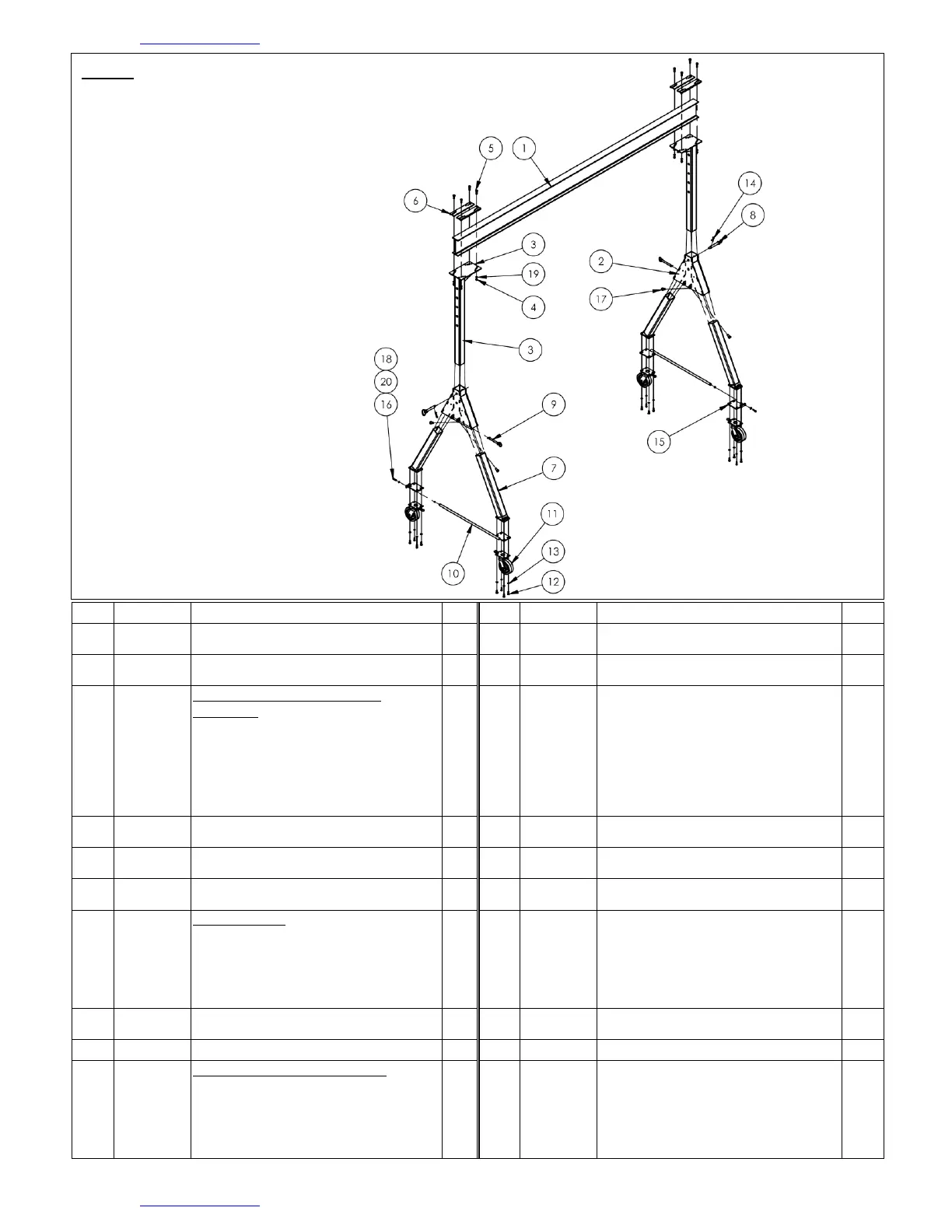

Exploded View & Bill of Materials
28-006-337
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
28-014-391
FRAME, DOMESTIC STEEL I-BEAM
1
11
16-132-064
Ø8" x 3" PHENOLIC 4 WAY SWIVEL LOCK
CASTER
4
2
28-514-237
WELDMENT, STEEL LEG YOKE
2
12
11159
HEX BOLT, GRADE A, Z PLATED, Ø7/16"-
14 p15-x1 1/2"
16
3
28-514-151
28-514-150
28-514-149
28-514-009
28-514-010
28-514-124
Telescoping upright assembly
weldment:
AHSN-8-15-7
AHSN-8-15-9
AHSN-8-15-10
AHSN-8-15-12
AHSN-8-15-14
AHSN-8-15-16
24
13
33624
LOCK WASHER, Z PLATED, Ø 7/16
16
*4
19211-A
Ø1/2-13 NUT - COMES W/BOLT IN
COMBO #19211
8
14
45282
#6 HITCH PIN CLIP
2
*5
19211-B
Ø1/2-13 x 2" A325 BOLT(ORDER COMBO
#19211 W/NUT)
8
15
28-514-258
WELDMENT, CROSS BRACE BOLT END,
6/8K
2
6
28-516-053
WELDMENT, I-BEAM CLAMP
4
16
13111
HHCS #5 Z PLATED, GRADE 5, Ø3/8 - 16
x 2 LG
2
7
28-514-238
28-514-239
28-514-240
28-514-241
28-514-242
Leg weldment:
AHSN-8-15-7
AHSN-8-15-9
AHSN-8-15-10
AHSN-8-15-12
AHSN-8-15-14 & AHSN-8-15-16
2
17
11359
HHCS #2 Z-PLATED, 3/4 -10 x 1 1/2
4
8
28-112-027
PIN, AXLE, PIVOT, ROLLER
2
18
33008
FLAT WASHER, LOW CARBON, USS, ZINC
PLATED, 3/8"
2
9
28-112-007
HARDWARE, RETAINING PIN Ø3/4 X 6 5/8
2
19
33626
LOCK WASHER Z PLATED, Ø 1/2
8
10
28-514-243
28-514-244
28-514-245
28-514-246
28-514-247
Weldment, leg set cross brace:
AHSN-8-15-7
AHSN-8-15-9
AHSN-8-15-10
AHSN-8-15-12
AHSN-8-15-14 & AHSN-8-15-16
16
20
36106
HEX NUT, GRADE A, ZINC PLATED, 3/8-16
2
*Part numbers 19211-A & 19211-B equivalent to, and interchangeable with, part no. 0129020.
