Step 2: Attach the uprights to the yokes.
a. Lay the yokes, uprights, and legs on the ground.
b. Slide the uprights into the center channels of the yokes.
c. Align the selected pinhole in each upright with the pinhole in the yoke as shown in Figs. 2A below.
Both uprights must be pinned to a leg assembly through the same pinhole.
Fig. 3B: Beam Clamp-to-Bracket Connection
[*Part numbers 19211-A & 19211-B equivalent to, and
interchangeable with, part no. 0129020.]
½ in. -13 x 2in.
A325 structural
bolt (*19211-B)
½ in. -13 A325
structural nut
(*19211-A)
½ in. zinc-plated
lock washer (33626)

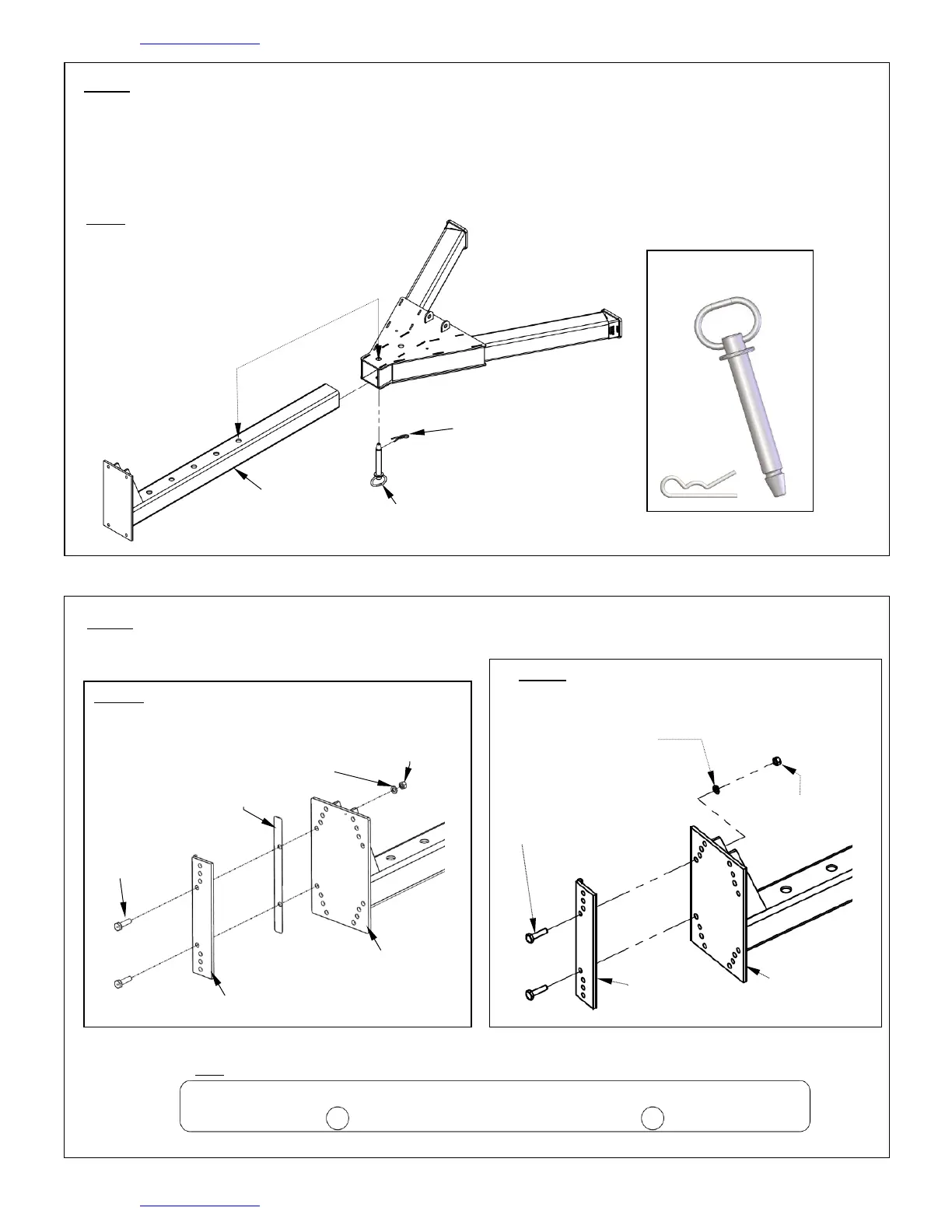

Fig. 2: Upright-to-Leg Assembly
Connections
Pin upright
to yoke
Adjustment pin (part
no. 28-112-027)
Adjustment pin
Hitch pin
Beam
clamp
Hitch pin
Beam
bracket
Upright
Fig. 3A: Beam Clamp-to-Bracket Connection
[Models AHSN-6-20-12, 6-20-14, 6-20-16, 8-20-12, 8-
20-14, & 8-20-16]
Shim (part no. 28-113-022)
Outside edge
Inside edge
½ in. zinc-plated
lock washer
½ in. -13 A325
structural nut
Shim (inside edges
face each other)
Beam clamp
½ in. -13 x 2in.
A325 structural
bolt
Beam
bracket
Step 3: Attach one beam clamp to each upright using the hardware indicated in FIG. 3A or 3B below.
NOTE: Fig. 3A applies only to models AHSN-6-20-12, 6-20-14, 6-20-16, 8-20-12, 8-20-14, & 8-20-16.
