Table of Contents Rev. 5/28/2025 AHSN, MANUAL
Table of Contents Copyright 2025 Vestil Manufacturing Co. Page 13 of 26
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
28-014-417
FRAME, DOMESTIC STEEL I-BEAM
1
12
11159
HEX BOLT, GRADE A, Z PLATED,
Ø7/16"-14 p13-x1 1/2"
16
2
28-514-237
WELDMENT, STEEL LEG YOKE
2
13
33624
LOCK WASHER, Z PLATED, Ø 7/16
16
3
28-514-009
28-514-124
28-514-010
Assembly frame, upright
AHSN-6-20-12
AHSN-6-20-14
AHSN-6-20-16
2
2
2
14
45282
#6 HITCH PIN CLIP
2
*4
19211-A
Ø1/2-13 NUT - COMES W/BOLT IN
COMBO #19211
8
15
28-514-258
WELDMENT, CROSS BRACE BOLT
END, 6/8K
2
*5
19211-B
Ø1/2-13 x 2" A325 BOLT(ORDER
COMBO #19211 W/NUT)
8
16
13111
HHCS #5 Z PLATED, GRADE 5, Ø3/8
- 16 x 2 LG
2
6
28-516-053
WELDMENT, I-BEAM CLAMP
4
17
11359
HHCS #2 Z-PLATED, 3/4 -10 x 1 1/2
4
7
28-514-241
28-514-242
Weldment, leg
AHSN-6-20-12
AHSN-6-20-14 & AHSN-6-20-16
4
4
18
33008
FLAT WASHER, LOW CARBON, USS,
ZINC PLATED, 3/8"
2
8
28-112-027
PIN, AXLE, PIVOT, ROLLER
2
19
33626
LOCK WASHER Z PLATED, Ø 1/2
8
9
28-112-007
HARDWARE, RETAINING PIN Ø3/4 X
6 5/8
2
20
36106
HEX NUT, GRADE A, ZINC PLATED,
3/8-16
2
10
28-514-246
28-514-247
Weldment, leg set cross brace
AHSN-6-20-12
AHSN-6-20-14 & AHSN-6-20-16
2
2
21
28-113-022
SHIM, TOP PLATE CLAMP SHIM
4
11
16-132-064
Ø8" x 3" PHENOLIC 4 WAY SWIVEL
LOCK CASTER
4
*Part numbers 19211-A & 19211-B equivalent to, and interchangeable with, part no. 0129020.

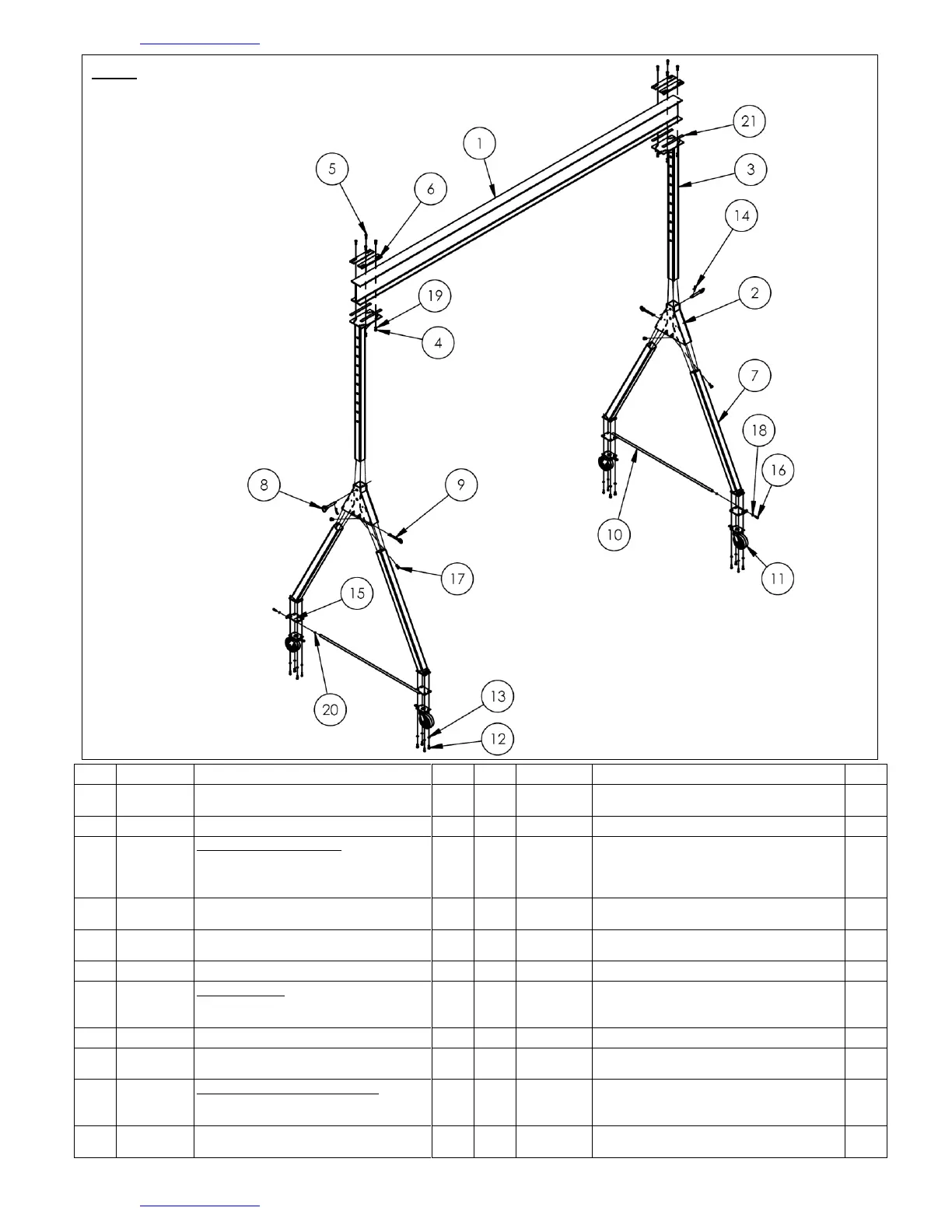

FIG. I: AHSN-6-20-12, AHSN-6-20-14, & AHSN-6-20-16
Exploded View & Bill of Materials
28-006-331
