Table of Contents Rev. 5/28/2025 AHSN, MANUAL
Table of Contents Copyright 2025 Vestil Manufacturing Co. Page 20 of 26
Step 4: Fasten I-beam to uprights.
[NOTE: Shim only used with models AHSN-6-20-12, 6-20-14, 6-20-16, 8-20-12, 8-20-14 & 8-20-16.]
a. Insert the flange of the I-beam into the gap between the beam clamp and the top of the uprights.
See FIG. 4B below;
b. Then clamp the flange on the opposite side of the beam to the beam bracket with the remaining
beam clamps as shown in the applicable diagram (4C or 4D).
Step 5: Tighten the beam clamp nuts and bolts to 50 - 52 lb·ft of torque.
Step 6: Put the crane on its feet.
Rotate the crane onto its feet in a controlled manner. For instance, attach a hoist chain to the I-beam
and slowly raise the beam until the crane stands on its feet. Alternatively, raise the crane with a fork
truck. Position the forks under the I-beam and slowly raise the beam until the crane rotates onto its feet
in a controlled manner.
Fig. 3D: Top view of beam connection to
upright
Approach the crane
with a fork truck from
this side and slide the
forks under the I-beam.
Slowly raise the beam
and drive forward until
the crane stands on its
feet.

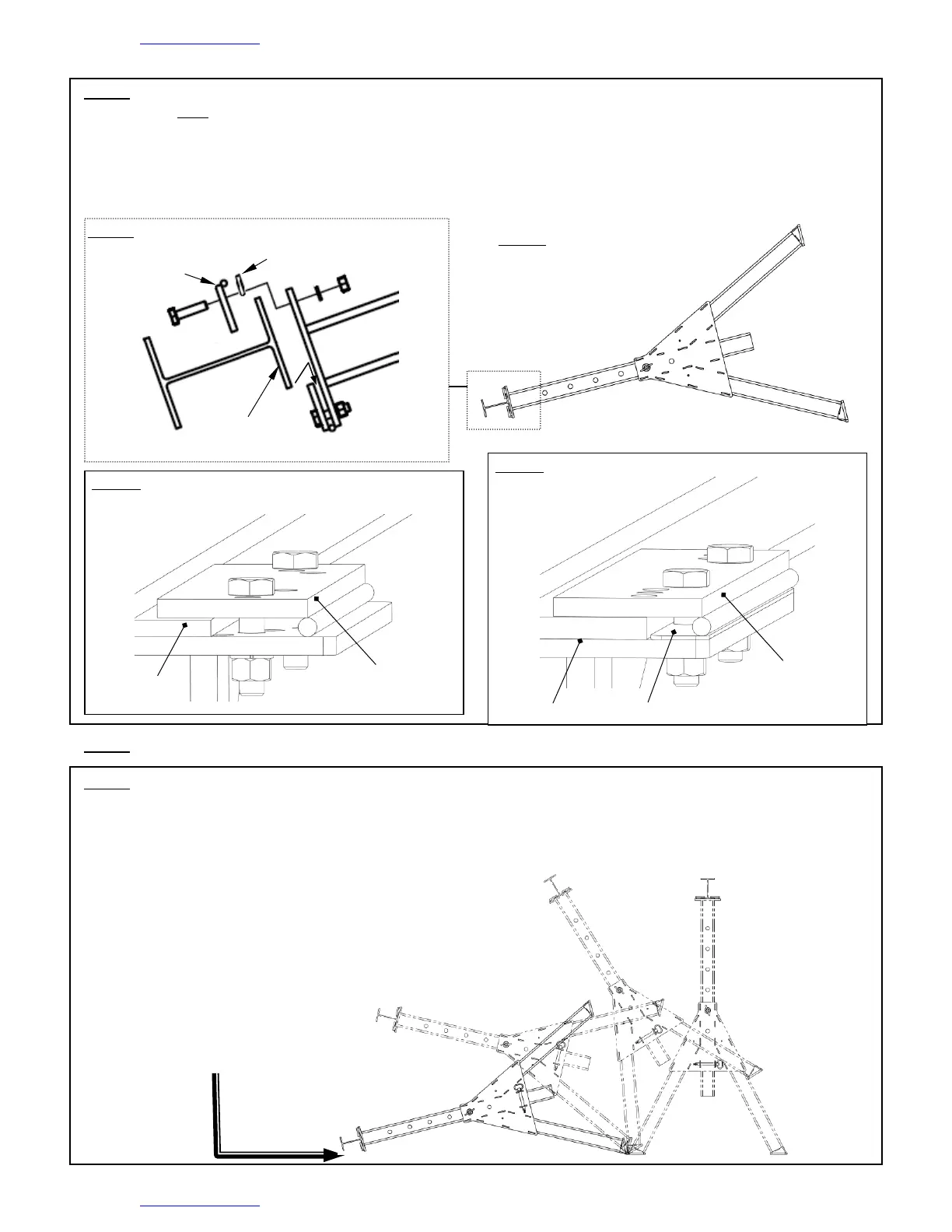

FIG. 4B: Clamp the I-beam to the tops of the uprights
Flange of I-beam
I-beam
Upright
Beam clamp
Shim
FIG. 4D: Beam-to-upright connection including shim
Shim
Beam flange
Beam
clamp
FIG. 4C: Beam-to-upright connection
FIG. 4A: End View of I-beam
Connection to Beam Bracket
Beam
flange
Beam
clamp
