TABLE OF CONTENTS Rev. 5/23/2025 AHS MANUAL
TABLE OF CONTENTS Copyright 2022 Vestil Manufacturing Corp. Page 16 of 26

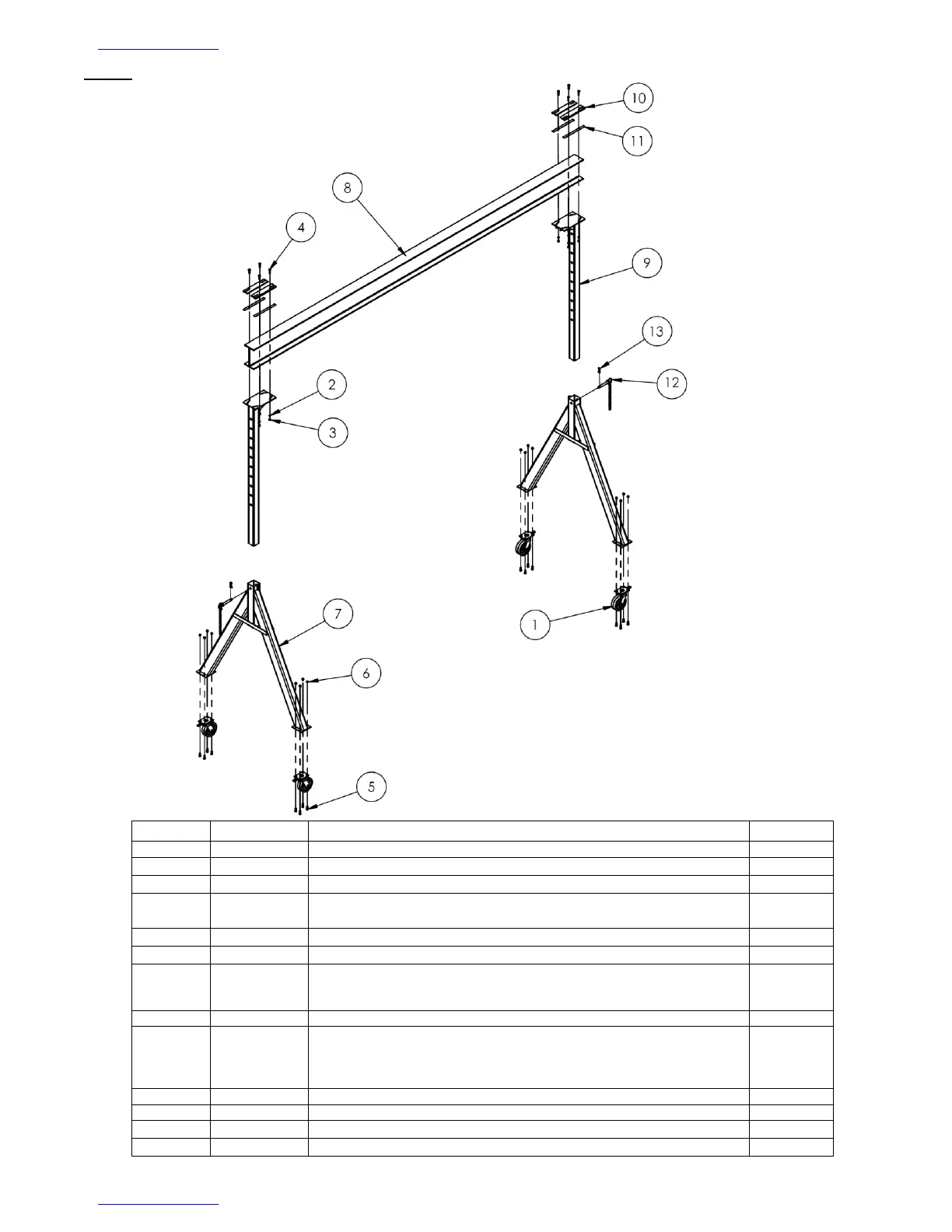

FIG. L: AHS-8-20-12, AHS-8-20-14, & AHS-8-20-16 Exploded View & Bill of Materials
28-006-090
*Part numbers 19211-A & 19211-B equivalent to, and interchangeable with, part no. 0129020.
Item no.
Part no.
Description
Quantity
1
16-132-064
8 in. x 3 in. phenolic 4-way swivel lock caster
4
2
33626
1
/
2
in. zinc-plated lock washer
8
*3
19211-A
1
/
2
in. – 13 A325 structural nut (part of nut and bolt combo.)
8
*4
19211-B
1
/
2
in. – 13 x 2in. A325 structural bolt (part of nut and bolt
combo.)
8
5
11209
1
/
2
in. – 13 1
1
/
2
in. HHCS #2 zinc-plated bolt
16
6
37030
1
/
2
in. – 13 nylon insert lock nut
16
7
28-514-122
28-514-123
Frame, leg assembly:
AHS-8-20-12
AHS-8-20-14 & AHS-8-20-16
2
2
8
28-014-417
Frame, domestic steel I-beam
1
9
28-514-009
28-514-010
28-514-124
Assembly frame, upright:
AHS-8-20-12
AHS-8-20-14
AHS-8-20-16
2
2
2
10
28-516-053
Weldment, I-beam clamp
4
11
28-113-022
Shim, top plate clamp shim
5
12
28-612-003
1 in. x 7 in. retaining pin
2
13
45282
#6 hitch pin
2
