TABLE OF CONTENTS Rev. 5/23/2025 AHS MANUAL
TABLE OF CONTENTS Copyright 2022 Vestil Manufacturing Corp. Page 13 of 26

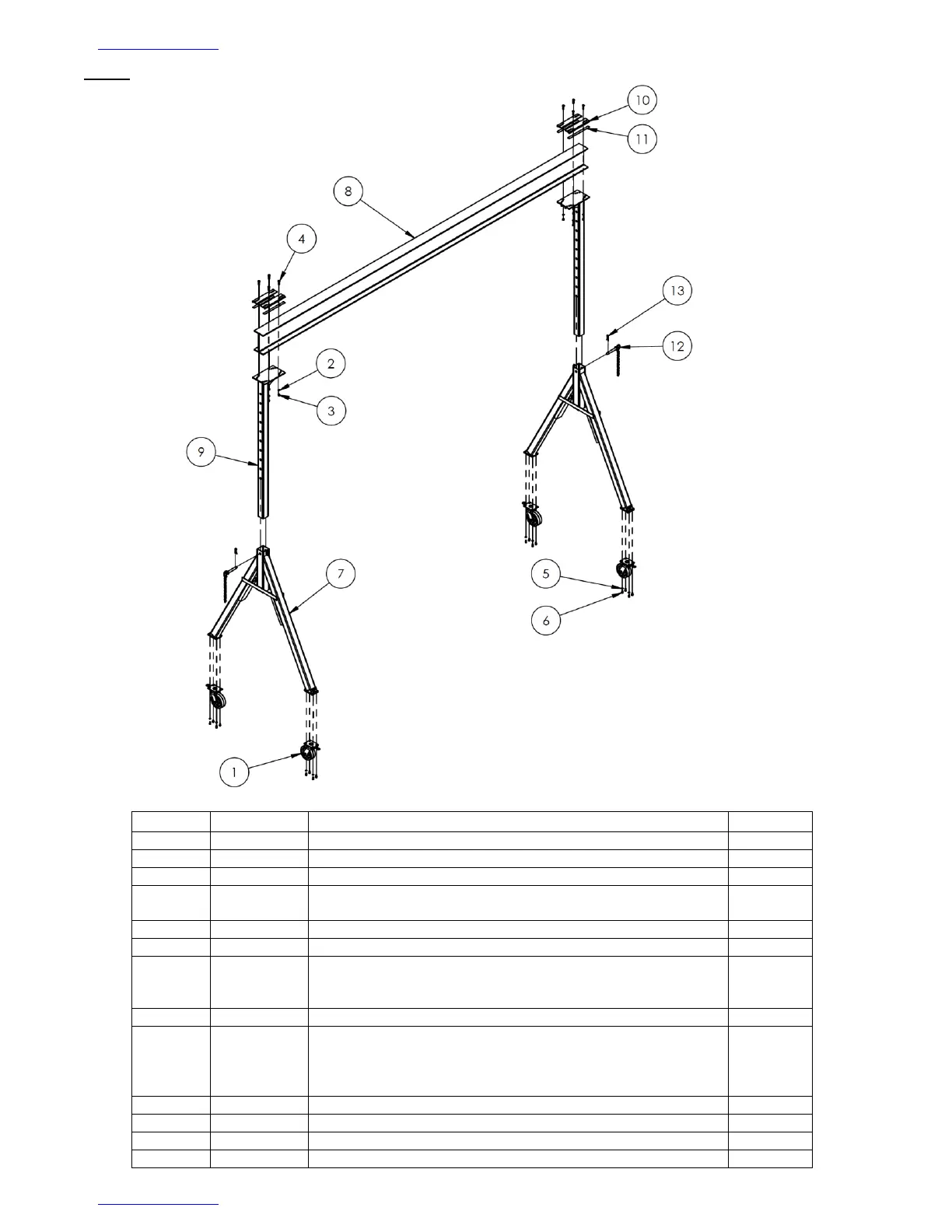

FIG. I: AHS-6-20-12, AHS-6-20-14, & AHS-6-20-12 Exploded View & Bill of Materials
28-006-084
*Part numbers 19211-A & 19211-B equivalent to, and interchangeable with, part no. 0129020.
Item no.
Part no.
Description
Quantity
1
16-132-064
8in. x 3in. phenolic 4-way swivel lock caster
4
2
33626
1
/
2
in. zinc-plated lock washer
8
*3
19211-A
1
/
2
in. – 13 A325 structural nut (part of nut and bolt combo.)
8
*4
19211-B
1
/
2
in. – 13 x 2 in. structural bolt (part of nut and bolt
combo.)
8
5
33624
7
/
16
in. zinc-plated lock washer
16
6
13155
7
/
16
in. – 14 UNC x 1 in. HHCS #5 zinc-plated bolt
16
7
28-514-019
28-514-020
Frame, leg assembly, gantry crane:
AHS-6-20-12
AHS-6-20-14 & AHS-6-20-16
2
2
8
28-014-417
Frame, domestic steel I-beam
1
9
28-514-009
28-514-010
28-514-124
Assembly frame, upright:
AHS-6-20-12
AHS-6-20-14
AHS-6-20-16
2
2
2
10
28-516-053
Weldment, I-beam clamp
4
11
28-113-022
Shim, top plate clamp shim
4
12
28-612-003
1 in. x 7 in. retaining pin
2
13
45282
#6 hitch pin
2
