TABLE OF CONTENTS Rev. 5/23/2025 AHS MANUAL
TABLE OF CONTENTS Copyright 2022 Vestil Manufacturing Corp. Page 12 of 26

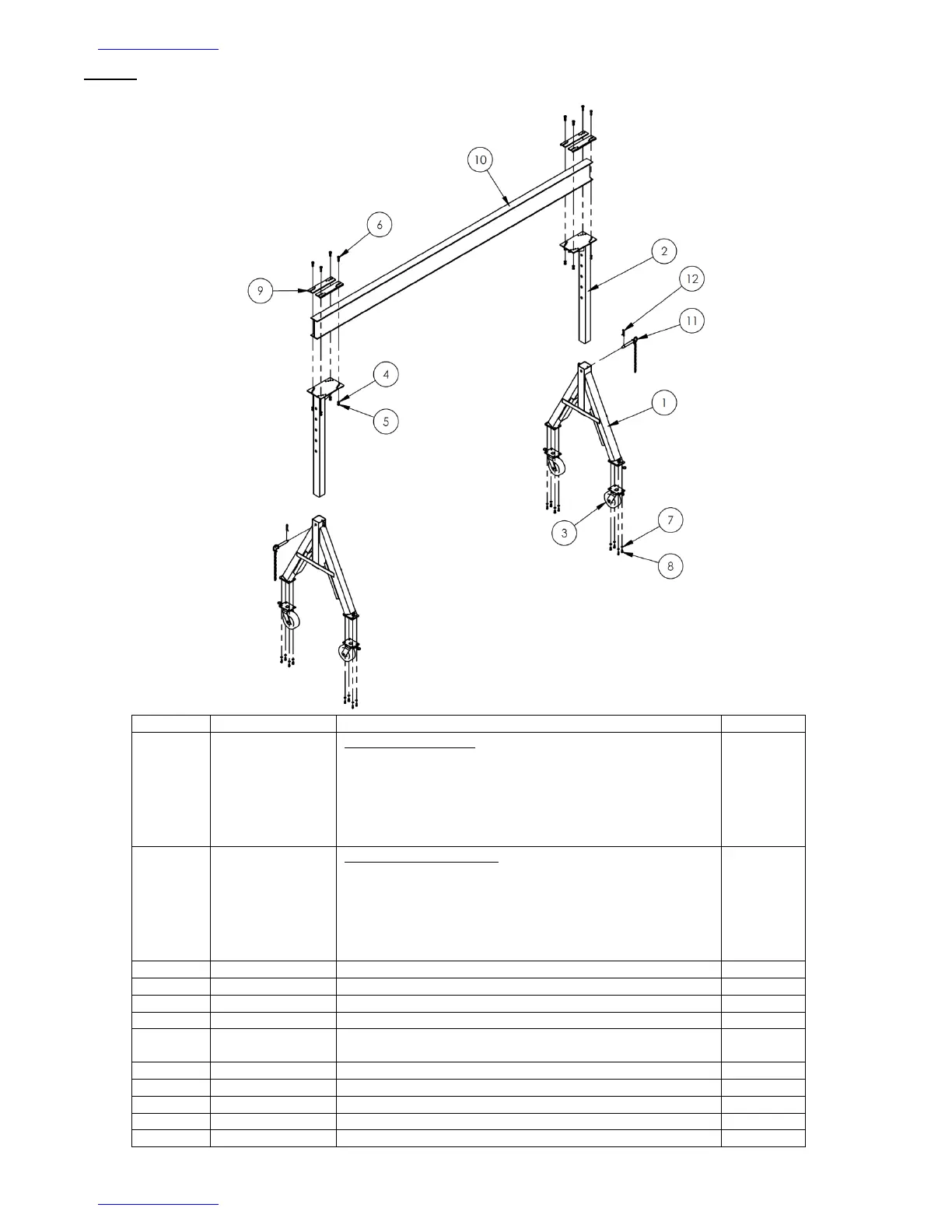

FIG. H: AHS-6-15-7, AHS-6-15-9, AHS-6-15-10, AHS-6-15-12, AHS-6-15-14 & AHS-6-15-
16 Exploded View & Bill of Materials (28-006-210)
Item no.
Part no.
Description
Quantity
1
28-514-148
28-514-147
28-514-146
28-514-019
28-514-020
28-514-020
Frame, leg assembly:
AHS-6-15-7
AHS-6-15-9
AHS-6-15-10
AHS-6-15-12
AHS-6-15-14
AHS-6-15-16
2
2
2
2
2
2
2
28-514-151
28-514-150
28-514-149
28-514-009
28-514-010
28-514-124
Assembly frame, upright:
AHS-6-15-7
AHS-6-15-9
AHS-6-15-10
AHS-6-15-12
AHS-6-15-14
AHS-6-15-16
2
2
2
2
2
2
3
16-132-064
8in. x 3in. phenolic 4-way swivel lock caster
4
4
33626
½ in. zinc-plated lock washer
8
5
19211-A
½ in. -13 A325 structural nut
8
6
19211-B
½ in. -13 x 2in. A325 structural bolt
8
7
33624
7
/
16
in. – 14 zinc-plated lock washer
16
8
13155
7
/
16
in. – 14 UNC x 1 in. zinc-plated HHCS #5 bolt
16
9
28-516-053
Beam clamp (either spur clamp or welded beam clamp)
4
10
28-014-391
Frame, domestic steel I-beam
1
11
28-612-003
1 in. x 7 in. retaining pin
2
12
45282
#6 hitch pin
2
*Part numbers 19211-A & 19211-B equivalent to, and interchangeable with, part no. 0129020.
