TABLE OF CONTENTS Rev. 5/23/2025 AHS MANUAL
TABLE OF CONTENTS Copyright 2022 Vestil Manufacturing Corp. Page 15 of 26

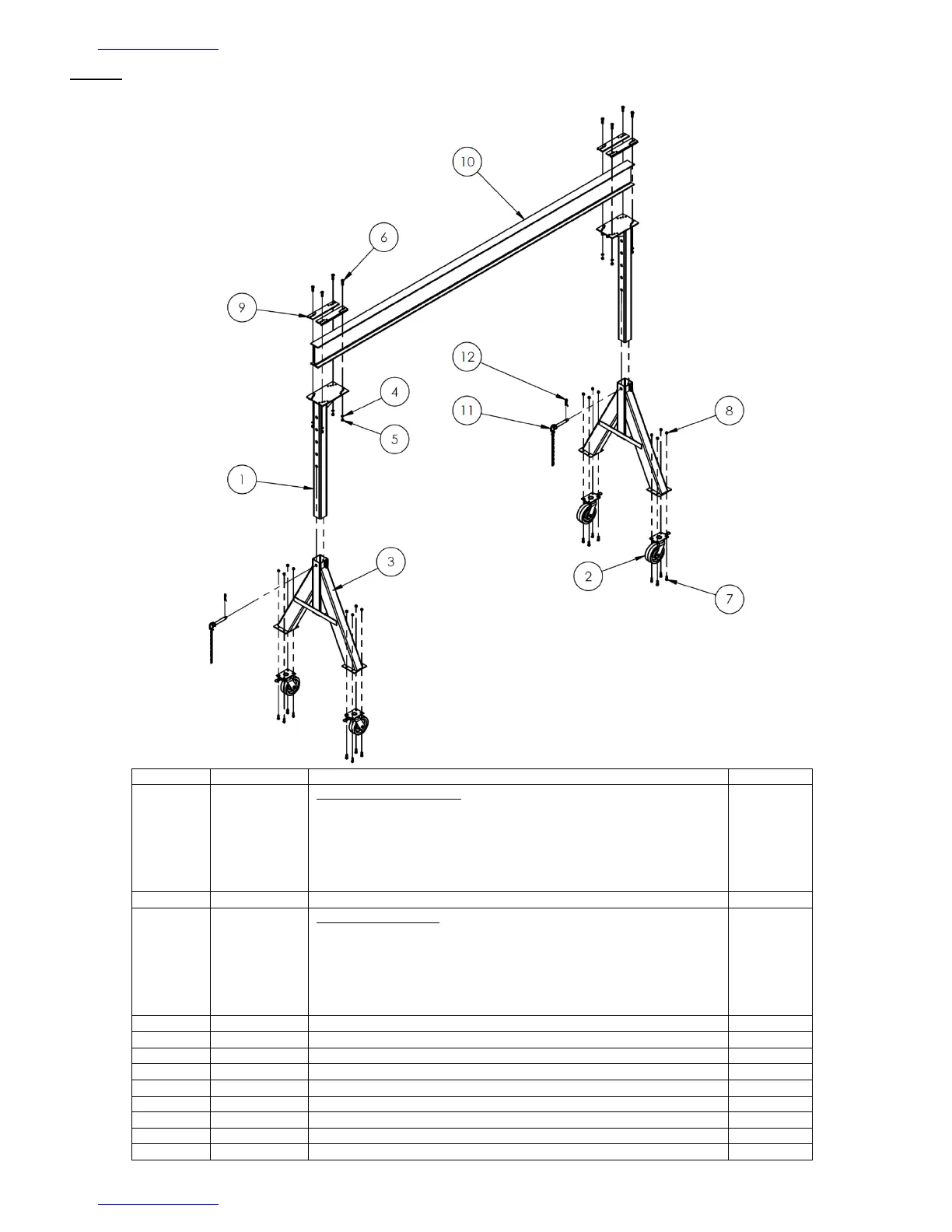

FIG. K: AHS-8-15-7, AHS-8-15-9, AHS-8-15-10, AHS-8-15-12, AHS-8-15-14, & AHS-8-15-16
Exploded View & Bill of Materials (28-006-214)
*Part numbers 19211-A & 19211-B equivalent to, and interchangeable with, part no. 0129020.
Item no.
Part no.
Description
Quantity
1
28-514-151
28-514-150
28-514-149
28-514-009
28-514-010
28-514-124
Assembly frame, upright:
AHS-8-15-7
AHS-8-15-9
AHS-8-15-10
AHS-8-15-12
AHS-8-15-14
AHS-8-15-16
2
2
2
2
2
2
2
16-132-064
8in. x 3in. phenolic 4-way swivel lock caster
4
3
28-514-155
28-514-154
28-514-153
28-514-122
28-514-123
28-514-123
Frame, leg assembly:
AHS-8-15-7
AHS-8-15-9
AHS-8-15-10
AHS-8-15-12
AHS-8-15-14
AHS-8-15-16
2
2
2
2
2
2
4
33626
½ in. zinc-plated lock washer
8
*5
19211-A
½ in. -13 A325 structural nut
8
*6
19211-B
½ in. -13 x 2in. A325 structural bolt
8
7
11209
½ in. – 13 x 1½ in. zinc-plated HHCS #2 bolt
16
8
37030
½ in. – 13 nylon insert lock nut
16
9
28-516-053
Weldment, I-beam clamp
4
10
28-014-391
Frame, domestic steel I-beam
1
11
28-612-003
1 in. x 7 in. retaining pin
2
12
45282
#6 hitch pin
2
