Table of Contents Rev. 12/9/2019 AHA MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 6 of 24
FIG. 2
UU

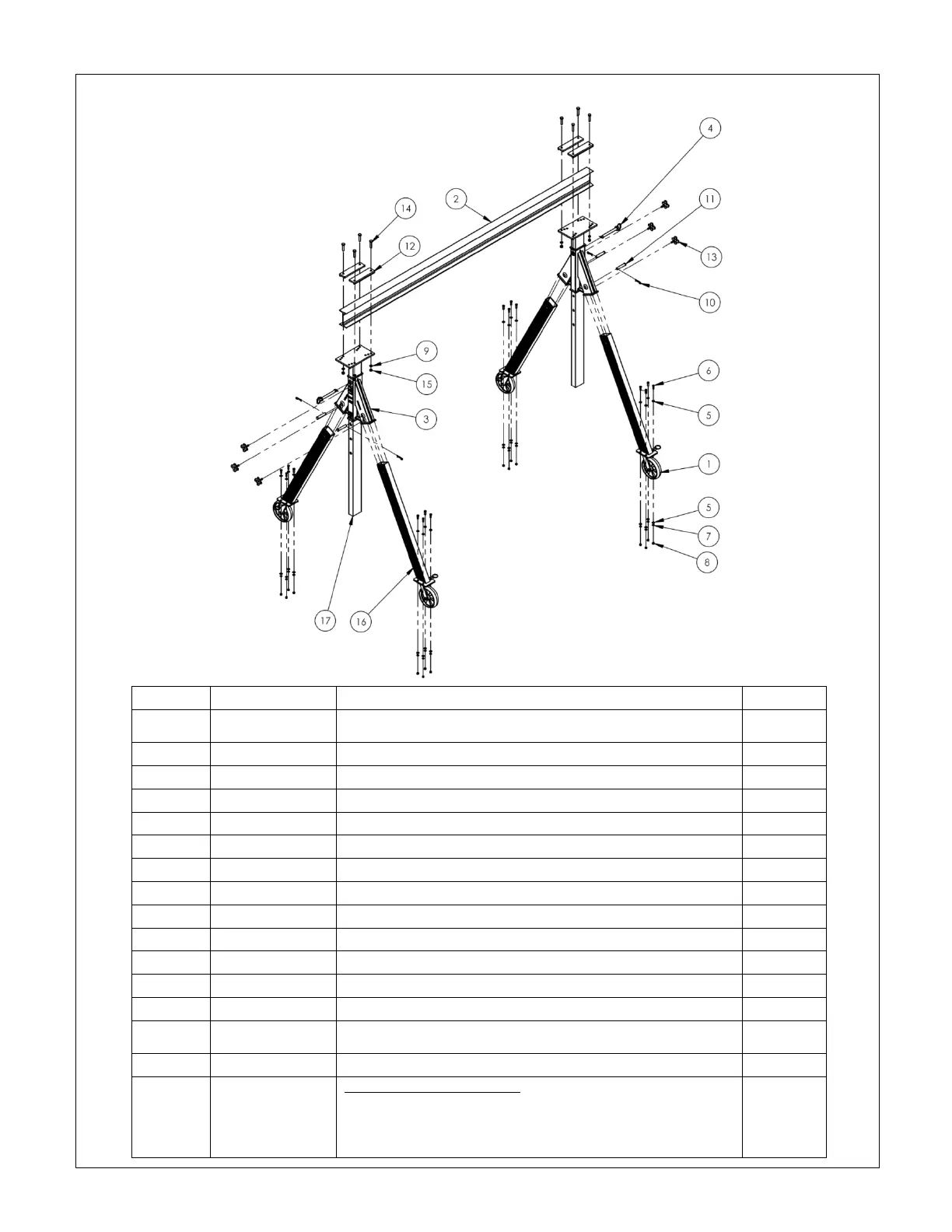

: Exploded view of models AHA-2-10-8, AHA-2-10-10, & AHA-2-10-12
Item
Part no.
Description
Quantity
1
GFN-8/2-S-4PSL
(16-132-249)
Glass filled nylon 4-position swivel locking caster 4
2
28-014-986-002 6in. (H) x 3.314 in. (W) x 120 in. (L) inch aluminum I-beam 1
3
28-014-190 Casting, aluminum 2k yoke 2
4
28-112-007 Pin, retaining, ¾ in. x 6 in. usable length 2
5
33082
3
/
8
in. zinc plated SAE flat washer 32
6
11107
3
/
8
in. – 16 x 1¼ HHCS #2 zinc-plated bolt 16
7
33622
3
/
8
in. zinc plated lock washer 16
8
36106
3
/
8
in. – 16 zinc plated hex nut 16
9
33626 ½ in. zinc-plated lock washer 8
10
45286
1
/
8
in. x 2
5
/
8
in. #11 hitch pin clip 4
11
33-112-034
Pin, clevis, ¾ in. x 3
1
/
2
in. usable length 4
12
28-516-054 I-beam clamp weldment 4
13
08-025-007
3
/
8
in. – 16 UNC threaded knob, TT-18-PED 6
14 & 15
11134585
½ in. – 13 x 2½ in.A325 galvanized structural nut & bolt combo
½ in. – 13 A325 galvanized structural nut & bolt combo
8
16
28-514-220 2k leg tube weldment 4
17
28-514-227
28-514-228
28-514-229
Adjustable upright weldment: (when ordering replacements,
only sold as a pair)
AHA-2-10-8
AHA-2-10-10
AHA-2-10-12
2
2
2
