Table of Contents Rev. 12/9/2019 AHA MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 19 of 24

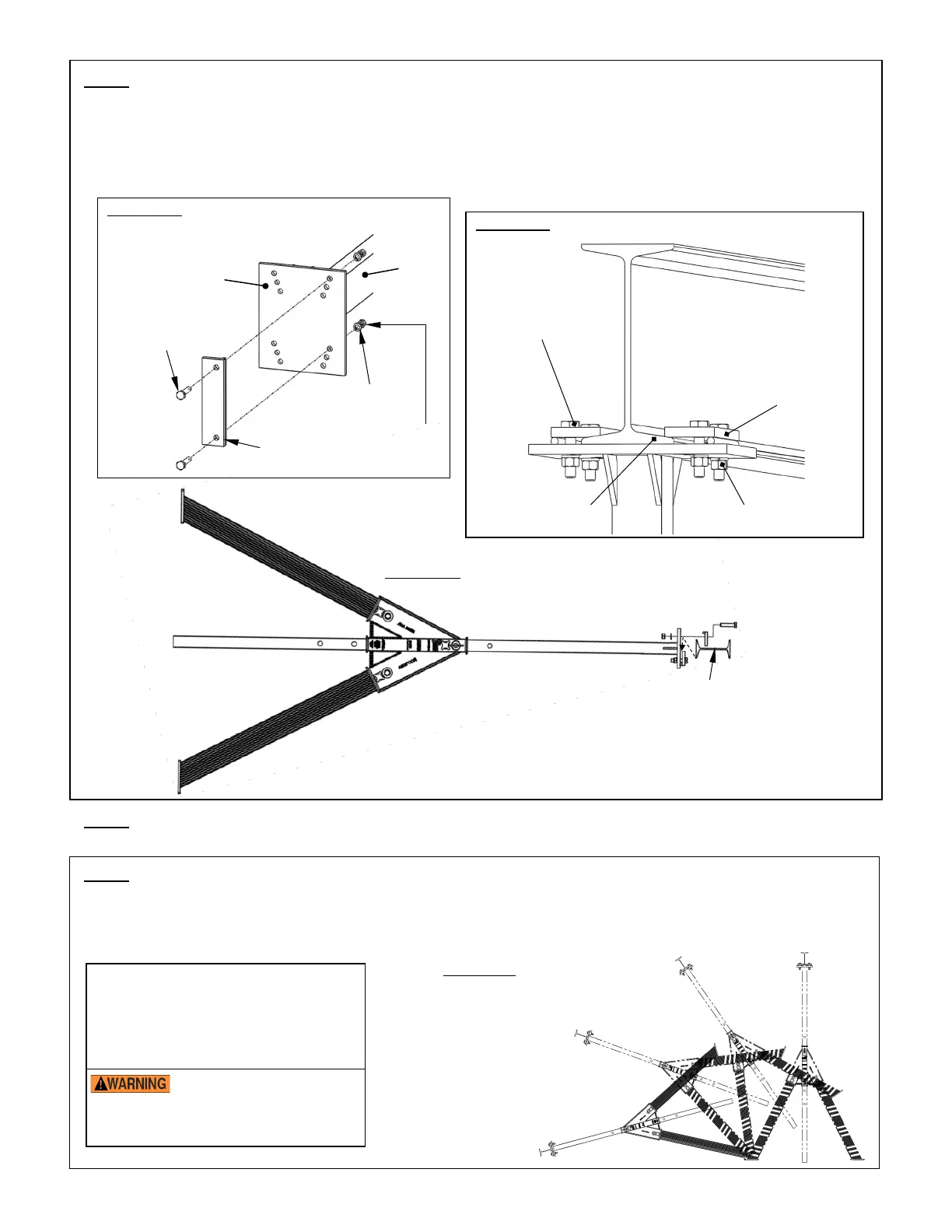

Step 4: Fasten the I-beam to the uprights.
a. As shown in Diagram 4A, insert
1
/
2
in. structural bolts through the bolt holes of a beam clamp and through the
selected bolt holes in the beam bracket. Then, slide a lock washer onto each bolt and secure the bolts with
1
/
2
in. structural nuts. Do not fully tighten the nuts at this point.
b. As shown in Diagram 4C, insert the flange of the I-beam into the gap between the beam clamp and the beam
bracket; then install another beam clamp on the other side of the beam to secure the flange on both sides.
Diagram 4B shows
Step 5: Make sure that the I-beam is centered on both beam plates and that the beam clamps significantly
overlap the flange on both sides. Tighten the nuts to 50 - 52 ft·lb of torque.
Step 6: Stand the crane on its feet.
Rotate the crane onto its feet in a controlled manner. [For instance, attach a hoist chain to the I-beam and then
slowly raise the beam until the crane rotates to stand on its feet. Alternatively, raise the crane with a fork truck.
Position the forks under the beam and slowly raise it until the crane rotates onto its feet.]
Diagram 4A: Clamp I-beam flange to beam brackets
of uprights
I-beam
Upright
Beam
clamp
Approach the crane with a fork truck from
this side, and slide the forks under the I-
beam.
Slowly raise the beam while slowly driving
forward until the crane stands on its feet.
DO NOT raise the beam
unless all
other persons have moved to a
location away from and behind the fork
truck.
Diagram 6: Rotate crane
onto its feet
½ in. – 13 A325
structural nut
½ in. – 13 x 2½ in.
A325 structural bolt
½ in. zinc-plated
lock washer
Diagram 4C: End View of I-beam Connection to Beam Bracket
Diagram 4B: Properly clamped flange
Structural nut
Beam
flange
Structural
bolt
Beam
clamp
Beam
bracket
