TABLE OF CONTENTS Rev. 5/28/2025 AHA MANUAL
TABLE OF CONTENTS Copyright 2020 Vestil Manufacturing Co. Page 17 of 24

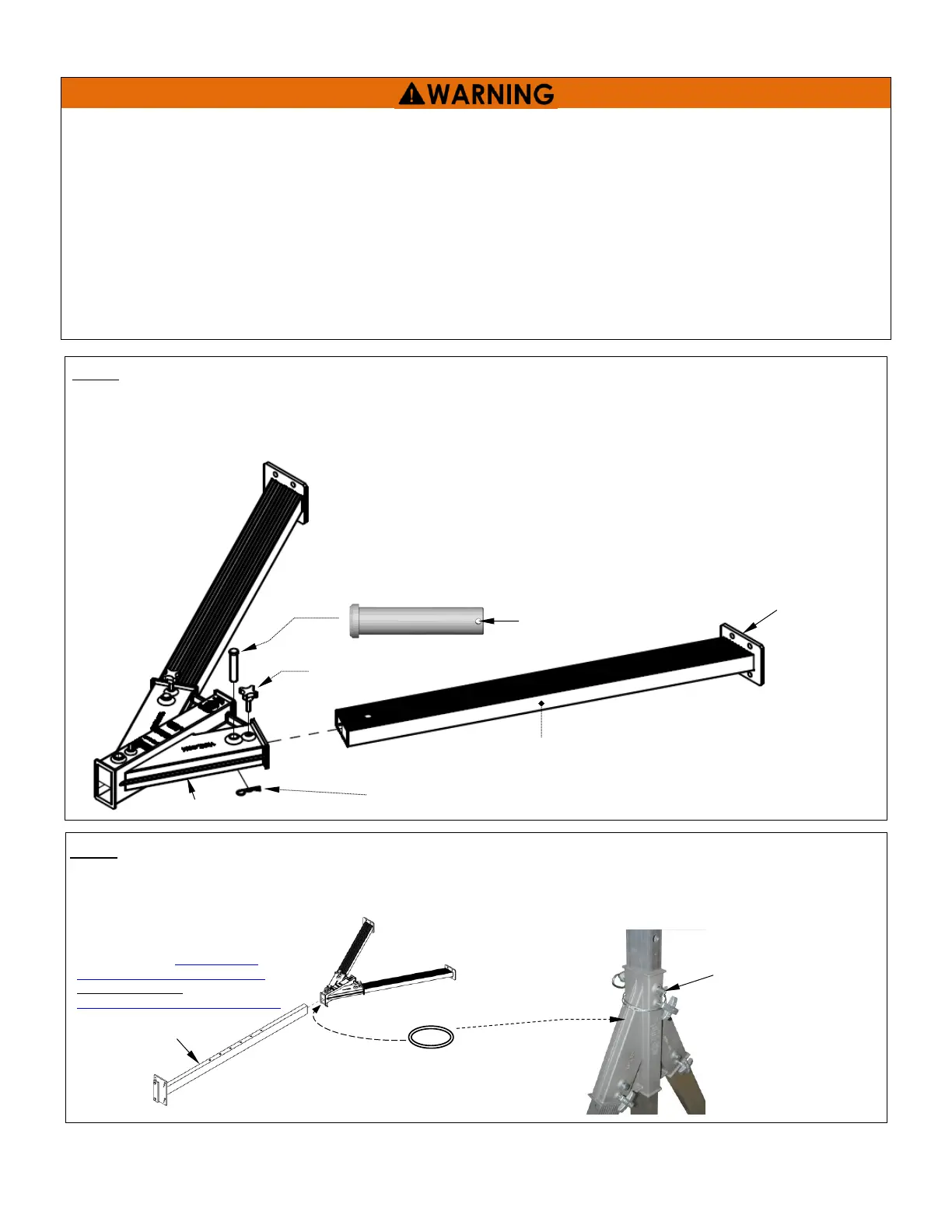

ASSEMBLING THE CRANE
Improper assembly might cause malfunctions and result in serious personal injuries. Follow the assembly
procedure described in Steps 1-8. If you have any questions about the assembly process, contact
TECHNICAL SERVICE.
ONLY qualified personnel should assemble the crane.
DO NOT modify the crane in any way. Modifying the crane automatically voids the LIMITED WARRANTY on
p. 24 and might make the crane unsafe to use.
DO NOT use the crane if you notice damage to, or deformation of, the beam, uprights, or any part of the
leg assemblies. Using the crane with weakened components could result in crane collapse.
DO NOT use the crane if any of the hardware (bolts, nuts, clamps, etc.) is damaged or missing. Contact
the Replacement Parts Dept. to order replacement parts.
DO NOT use the crane if any of the casters are damaged. A damaged caster may cause the crane to tip
over, and the possibility that the crane will tip increases while it is used to hoist or support a load.
UUStep 1UU: (for 2,000 lb. (AHA-2-#-#) and 4,000 lb. (AHA-4-#-#) models only)
Insert the end of each leg into one of the leg openings in the yoke as shown below. Fasten the legs to the
yoke with clevis pins (33-112-034 or 28-112-031) and secure the clevis pins with hitch pins. Insert a knob into
the yoke until the end of the knob presses firmly against the leg.
Step 2: (for Come-Along accessory kit only) If you have a “Come-Along” kit used to adjust the height of the
crane), install the cable loops before inserting the uprights into the yokes. Twist the provided cable loops
into a figure “8”; then fold it over onto itself (this will double loop the cable). Slide the doubled loop around
the receiver of the yoke.
¾ in. diameter clevis pin (33-
112-034 or028-112-031)
Leg weldment
Yoke
3
/
8
in. - 16 x 1¼ in. knob
Caster mount
bracket
Hitch pin
Hitch pin
opening
Slide doubled cable loop onto receiver of yoke.
Cable must wrap around yoke below both the
adjustment pin and threaded knob.
Upright
Receiver
NOTE: Instructions for using the Come-
Along kit are provided in a separate
document titled, AHA-KIT Height
Adjustment Kit Instruction Manual
available online at
www.vestil.com/page-manuals.php
