Table of Contents Rev. 12/9/2019 AHA MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 12 of 24

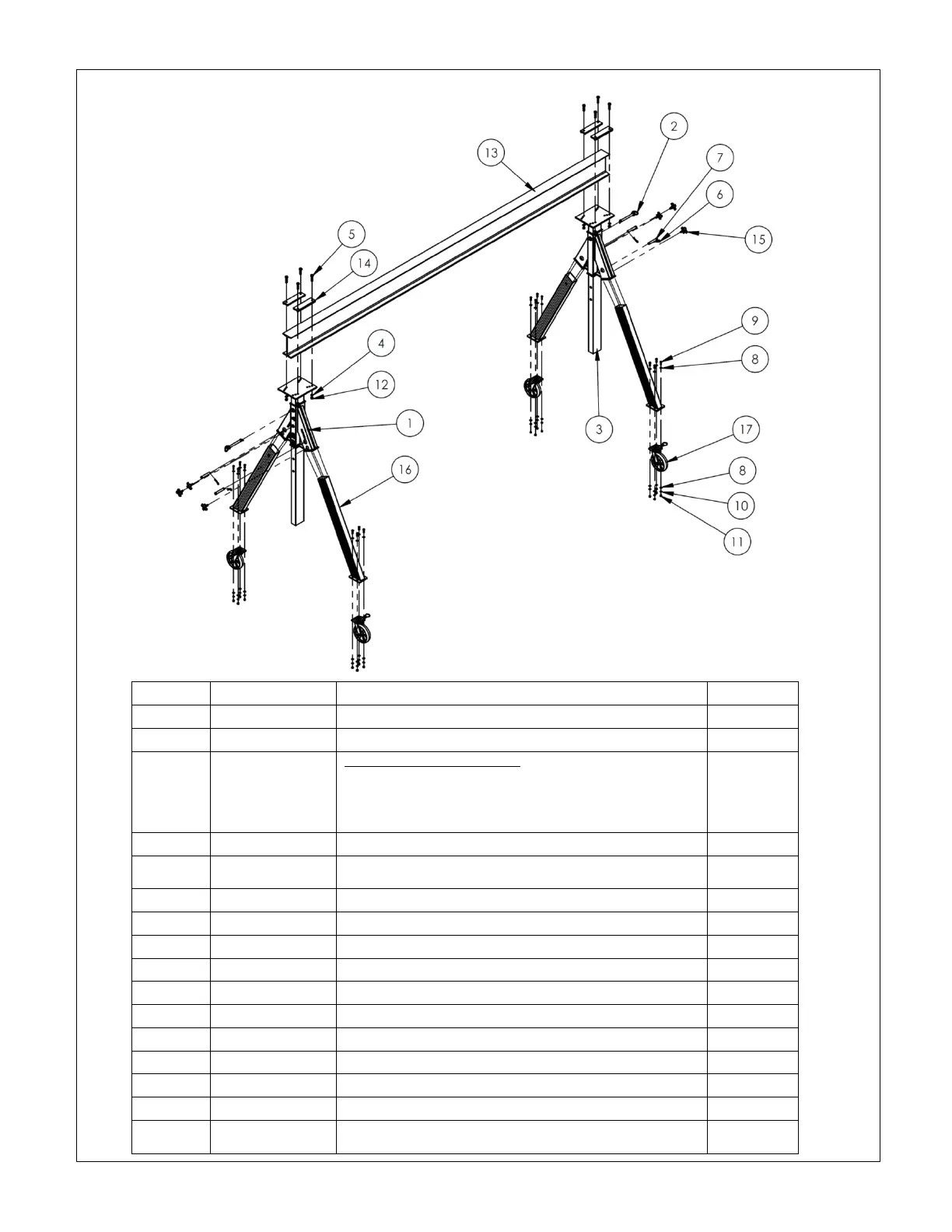

FIG. 8
UU
: Exploded view of models AHA-4-15-8, AHA-4-15-10, & AHA-4-15-12
Item
Part no.
Description
Quantity
1
28-014-272 Aluminum 4k gantry casting 2
2
28-112-007 Pin, retaining, ¾ in. x 6 in. usable length 2
3
28-514-230
28-514-231
28-514-232
Adjustable upright weldment: (when ordering
replacements, only sold as a pair)
AHA-4-15-8
AHA-4-15-10
AHA-4-15-12
2
2
2
4
33626 ½ in. zinc-plated lock washer 8
5 & 12
11134585
½ in. – 13 x 2½ in.A325 galvanized structural nut & bolt
½ in. – 13 A325 galvanized structural nut & bolt
8
6
45286
1
/
8
in. x 2
5
/
8
in. #11 hitch pin clip 4
7
28-112-031 Pin, clevis, ¾ in. x 4
1
/
4
in. usable length 4
8
33082
3
/
8
in. zinc plated SAE flat washer 32
9
11107
3
/
8
in. – 16 x 1¼ HHCS #2 zinc-plated bolt 16
10
33622
3
/
8
in. zinc plated lock washer 16
11
36106
3
/
8
in. – 16 zinc plated hex nut 16
13
28-014-236 10 in. (H) x 4.66 in. (W) x 180 in. (L) aluminum I-beam 1
14
28-516-054 I-beam clamp weldment 4
15
08-025-007
3
/
8
in. – 16 UNC threaded knob, TT-18-PED 6
16
28-514-221 4k leg tube weldment 4
17
GFN-8/2-S-4PSL
(16-132-249)
Glass filled nylon 4-position swivel locking caster 4
