USING THE CRANE
Before using the crane for the first time: 1) Perform a “Before & after each use” inspection (INSPECTIONS &
MAINTENANCE, part A, p. 22); and 2) Conduct a load test (INSPECTIONS & MAINTENANCE, part C, p. 22).
Operate the crane in a safe manner to reduce the risk of serious personal injuries or death.
Only use this crane if you are qualified and trained to use it. The operating instructions in this manual
supplement safe crane and hoist operation practices applied at your work site. Acquire a copy of the most
recent edition of ASME B30.17 and apply all operation, inspection, maintenance, and care recommendations.
ALWAYS apply the safe material handling practices learned from your training program.
All personnel not participating in the use of the crane must stay out of the area during use. Be certain no part
of any person or object is under any part of the boom (I-beam) or the suspended load at any time and
particularly before lowering it. Instruct all persons to remain at a safe distance during operation.
Always carefully watch the boom and any load hanging from it while using the crane.
Always follow the hoist and trolley manufacturers’ instructions regarding proper use of their products.
BEFORE the load is connected to the hoist, lock or immobilize the casters, for example with chocks.
Only use this crane on level concrete (or equal) surface.
DO NOT use the crane and notify your supervisor and authorized maintenance personnel if: 1) you observe any
damage or hear unusual noise during operation; or 2) you observe any warping or deformation of the I-beam,
the adjustable uprights, the load hook or hoist chain/cable.
DO NOT operate a hoist with a twisted, kinked, or damaged chain or rope. DO NOT operate a rope hoist unless
the rope is properly seated in its groove.
This crane can be used outdoors but should be sheltered from the weather when not in use.
LOADING THE CRANE
Position the trolley and hoist directly above
the load. Center the trolley and hoist above
the center of the load and position the long
axis of the I-beam above the center of the
load. Diagrams 8A & 8B show proper position.
Connect the load to the hoist
chain/cable, according to the instructions
supplied with your hoist and the method
applied at your work site; then raise the load
only as high as is necessary to position it.
Once the load is properly centered above
the work location, lower the load until it is fully
supported by the ground or work surface and
disconnect the load from the hoist. Return
the crane to its storage locations.
If you must move the load to a different
location, return the load to the ground or
other supporting surface, e.g. pallet, and
disconnect it from the hoist. Move the crane
and load separately to the work location.
Only use the crane to lift loads.
If your crane is equipped with V-Groove
casters (option AHA-2/4-V or AHA-2/4-V4)
and V-Track is installed, the crane can be
moved on the track while loaded. The hoist
must be immobilized and the load lowered.
Push the trailing end of the crane, not the
load.
RECORD OF SATISFACTORY CONDITION (THE “RECORD”)
Thoroughly inspect the crane after assembling it and before putting it into service. Record the condition and
appearance of each of the frame members (I-beam, tube weldments, yokes, uprights), the wheels and/or
casters, beam clamp, and all fasteners (bolts, nuts, etc.). Thoroughly photograph the crane from multiple angles.
Include close range photographs of the casters and/or wheels, all labeling, and all beam clamp connections.
Add the photographs to the record. Collate all photographs and writings into a single file. This file is a record of

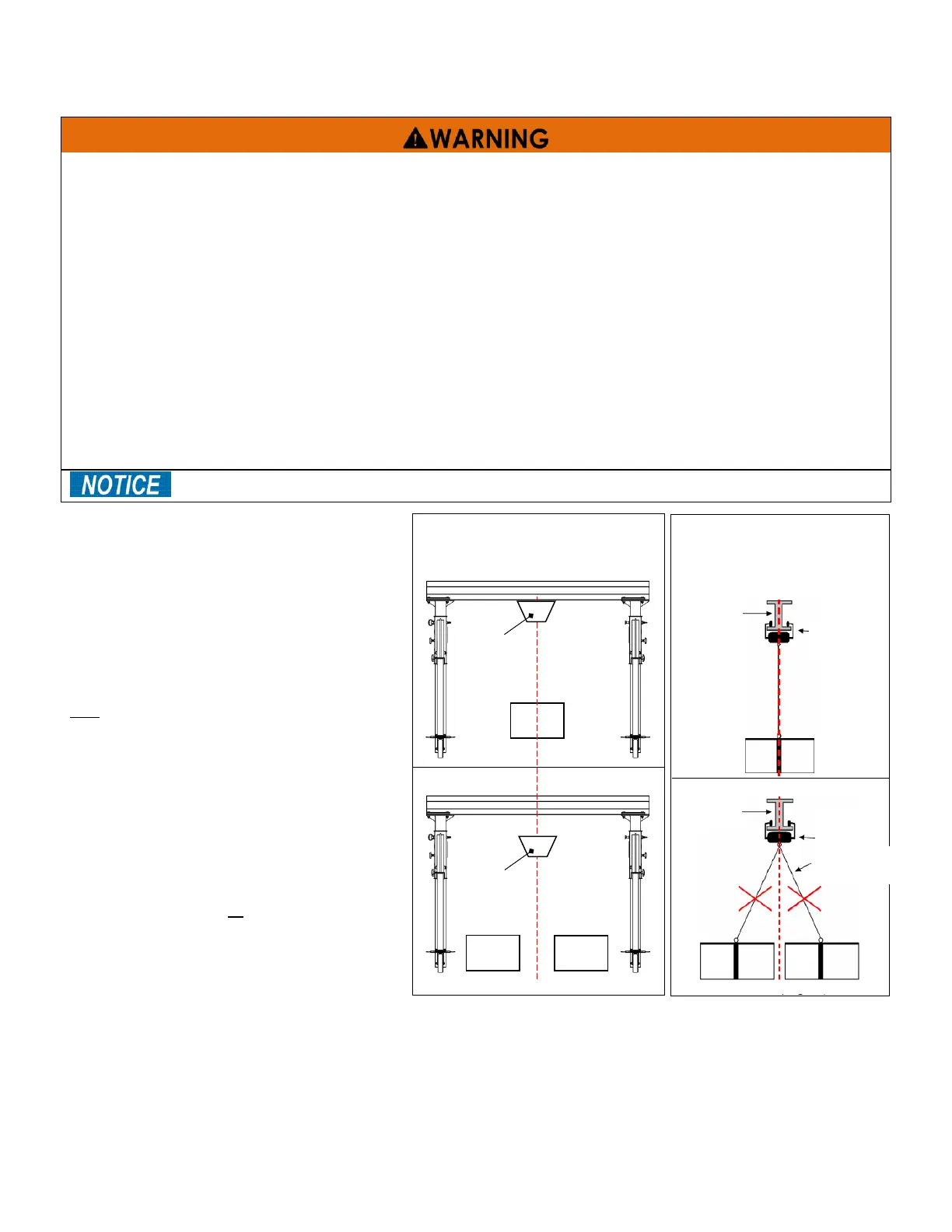

Diagram 8B: Center the long
axis of the I-beam above the
center of the load.
Diagram 8A: Center hoist above
center of load
Properly centered load
Improperly centered load
Hoist
Hoist
Load
Hoist &
trolley
Load
Load
Hoist &
trolley
Hoist
Chain/rope
I-beam
I-beam
Properly centered I-beam
Improperly centered I-beam
Load
Load
