Rev. 9/8/2020 AF, MANUAL
Copyright 2020 Vestil Manufacturing Corp. Page 3 of 5
ASSEMBLING THE PANEL CART
Refer to the EXPLODED VIEW on p. 3 to assemble the cart. If
you encounter difficulties or need assistance with the assembly,
contact TECHNICAL SERVICE.
USING THE PANEL CART
Center all panels applied to the cart by aligning the centerlines
of the panels with the vertical centerline of the panel supporting
frame of the cart (dashed lines). Whenever more than 1 panel is
placed on the cart, distribute the panels so that an equal number
is applied to each side of the panel supporting frame.
Strap all panels to the supporting frame to prevent them from
sliding. DO NOT use the cart to transport panels that cannot be
stably loaded on it.
Apply both caster brakes whenever the cart is not in motion. To
apply the brakes, press down on the brake levers. Release brakes
by lifting the brake levers.

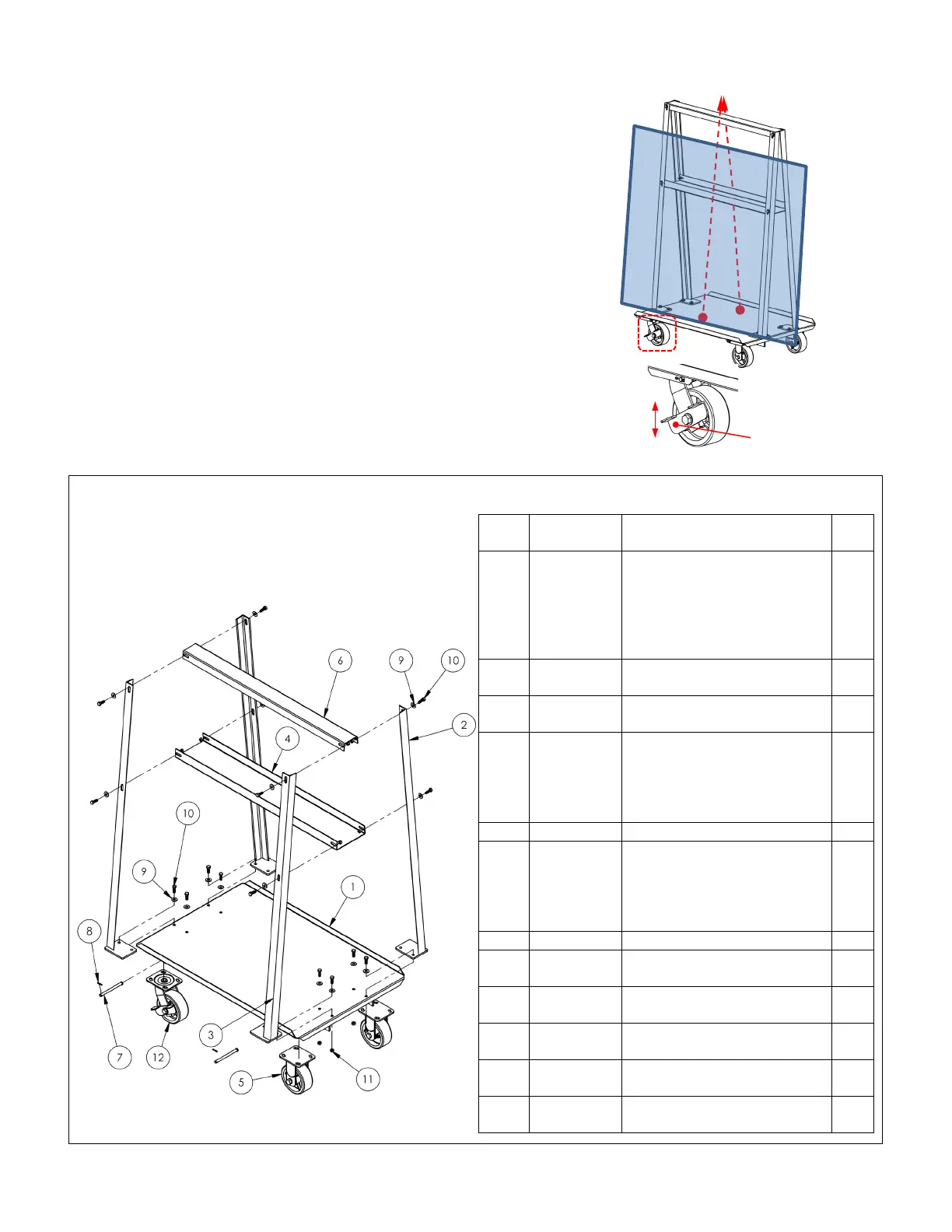

EXPLODED VIEW AND BILL OF MATERIALS
ITEM
NO
PART NO DESCRIPTION QTY
1
16-514-104
16-514-105
16-514-033
16-514-106
16-514-021
BASE FRAME WELDMENT:
AF-2436
AF-2448
AF-3048
AF-3060
AF-3672
1
1
1
1
1
2 16-514-095
RIGHT LEG FRAME
WELDMENT
2
3 16-514-096
LEFT LEG FRAME
WELDMENT
2
4
16-032-014
16-032-016
16-032-018
16-032-001
MIDDLE STIFFENER:
AF-2436
AF-2448 & AF-3048
AF-3060
AF-3672
1
1
1
1
5
16-132-022
RIGID CASTER, PU-5/2-R
2
6
16-032-013
16-032-015
16-032-017
16-032-011
TOP STIFFENER:
AF-2436
AF-2448 & AF-3048
AF-3060
AF-3672
1
1
1
1
7
99-112-006
CLEVIS PIN
4
8 65073
COTTER PIN, ZINC FINISH,
1/8 X 5/8
4
9 33006
FLAT WASHER, ZINC
PLATED, USS, 5/16
16
10 11055
HEX BOLT, GRADE A, ZINC
PLATED, 5/16-18X1
16
11 36104
HEX NUT, GRADE A, ZINC
PLATED, 5/16-18
16
12 16-132-053
SWIVEL CASTER WITH
BRAKE, PU-5/2-S-SWB
2
Panel
supporting
frame
Caster
brake lever
Release
Apply
