Table of Contents Rev. 1/29/2024 A-LIFT, MANUAL
Table of Contents Copyright 2023 Vestil Manufacturing Co. Page 6 of 15

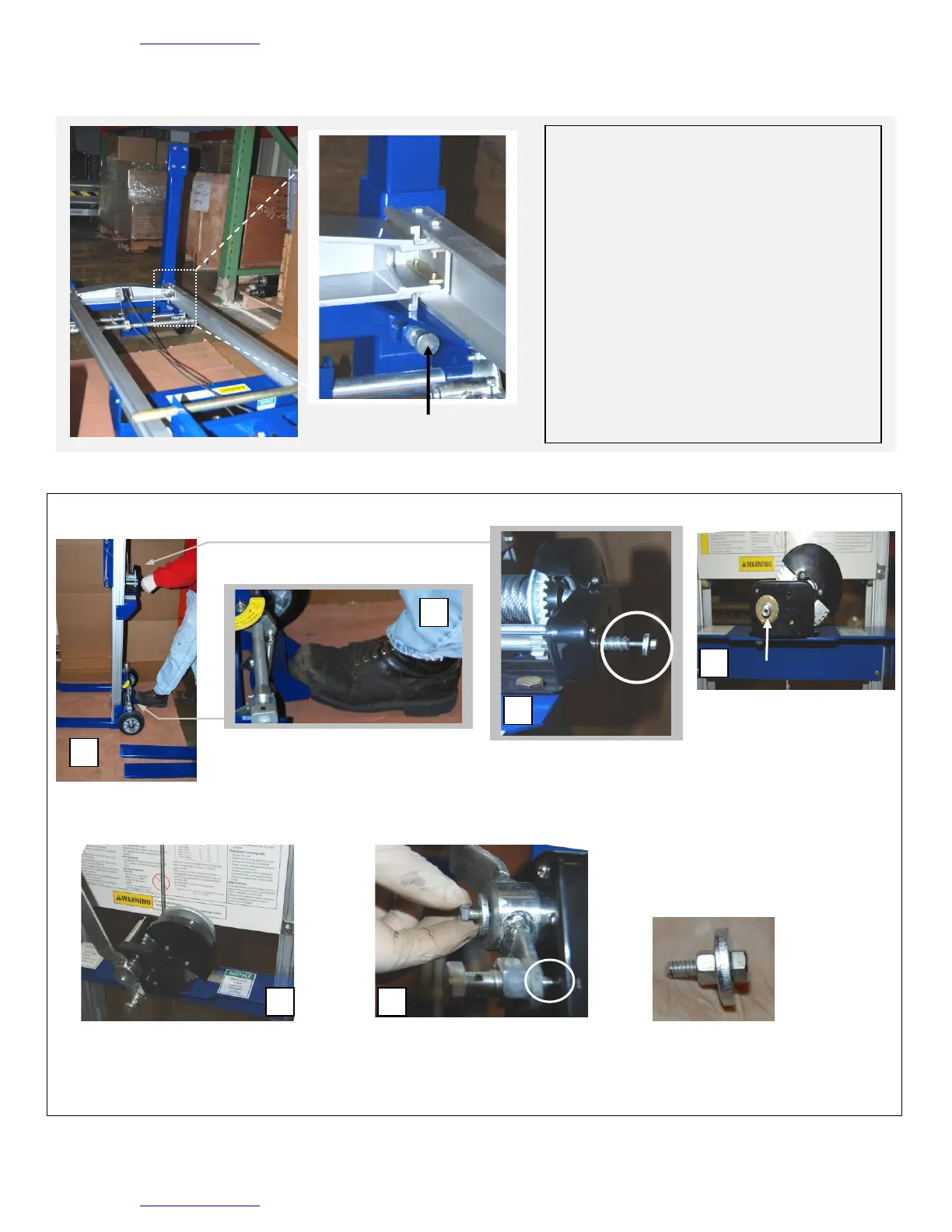

Step 1U: Connect the support legs to the main assembly by following instructions (a) through (e).
UStep 2U: Lift the assembly to the upright position (photo a). Then, lock the brakes (photo b) and fasten the
winch handle to the winch body (photos c – f).
U
Spring-loaded retaining peg
(a) Insert a support leg into each of the
receivers in the main assembly.
(b) Pull the retaining pegs to allow the
legs to drop to the bottoms of the
openings.
(c) Release the pegs. The pegs should
seat into holes in the legs. You might
have to wiggle the leg to get the
peg to drop.
(d) Pull up on each support leg to verify
that the pegs have seated properly.
The legs should not be able to slide
out of the opening If a leg comes
out of its receiver, the corresponding
peg did not engage properly.
Repeat (a) though (d).
Engage the brakes by
pressing down on the brake
pedal
Remove the handle
retaining bolt and
washer (circled)
a
b
c
d
e
Winch body with bolt
and washer removed
Slide the handle onto
the handle connector
Handle connector
f
Set the handle locking pin (circled) to
lock the handle, and then fasten the
handle to the handle connector with
the bolt and washer that you removed
in step (c).
NOTE: Secure the washer against the
bolt head with a nut BEFORE fastening
the bolt to the connector. This will
prevent the bolt from loosening when
the handle is rotated counterclockwise
to lower the forks.
