TRANSPORTING THE A-LIFT
Before loading the A-lift into a transport vehicle, perform the following steps to minimize the chance of
damaging the lifter:
U
A-LIFT-HTL-27-300-44 WATER HEATER/TANK LIFTER
This model is specially adapted to lift water heater tanks. The lifting adaptation includes a ratchet strap
and tank support attached to a movable carriage. The ratchet strap securely holds a selected water tank
against the carriage. Lifting and lowering functions are performed by a manually-operated winch. Rotate
the winch handle clockwise to raise the carriage and the tank supported by the carriage. Turn the handle
counterclockwise to lower the carriage.

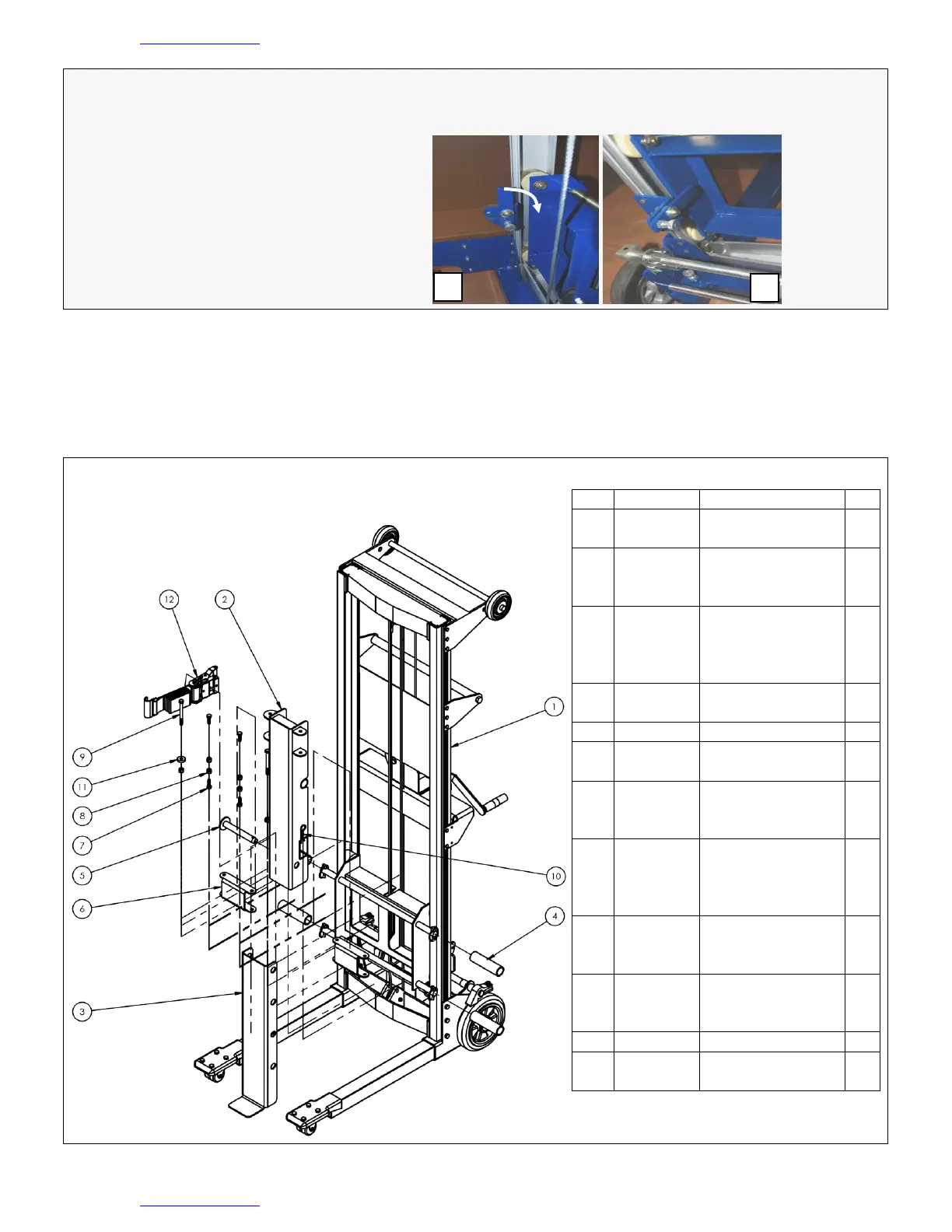

EXPLODED VIEW OF TANK LIFTING CARRIAGE
21-006-153
1. Remove the forks and store the
forks and fork retaining pins.
2. Lower the carriage completely.
3. Rotate the pivoting carriage latch
as shown by photos a & b to the
right.
a
b
ITEM
PART NO.
DESCRIPTION
QTY.
1
21-001-074
FINAL ASSEMBLY
W/O SHIPPING
1
2
21-514-167
WELDMENT,
FRAME SUB-
ASSMBLY
1
3
21-014-220
FRAME, CHANNEL,
FORMED (“TANK
SUPPORT” WITH
“TANK PLATE”)
1
4
21-014-219
FRAME, PIPE
SPACER
4
5
21-612-001
WELDMENT, PIN
1
6
21-012-005
HINGE, CHANNEL,
FORMED
2
7
11055
HEX BOLT, GRADE
A, ZINC PLATED,
5/16-18 X 1
4
8
37021
NYLON INSERT
LOCK NUT, GRADE
2, ZINC FINISH,
5/16"-18
6
9
11067
HHCS #2 Z PLATED,
GRADE A, Ø 5/16 -
18 x 3.5 LG
2
10
45286
#11 HITCH PIN
CLIP, Ø1/8" X 2 5/8
LG
1
11
20-027-005
ROLLER GUIDE
1
12
16-145-018
2" x 36" STRAP WITH
RATCHET
1
