Table of Contents Rev. 1/29/2024 A-LIFT, MANUAL
Table of Contents Copyright 2023 Vestil Manufacturing Co. Page 7 of 15

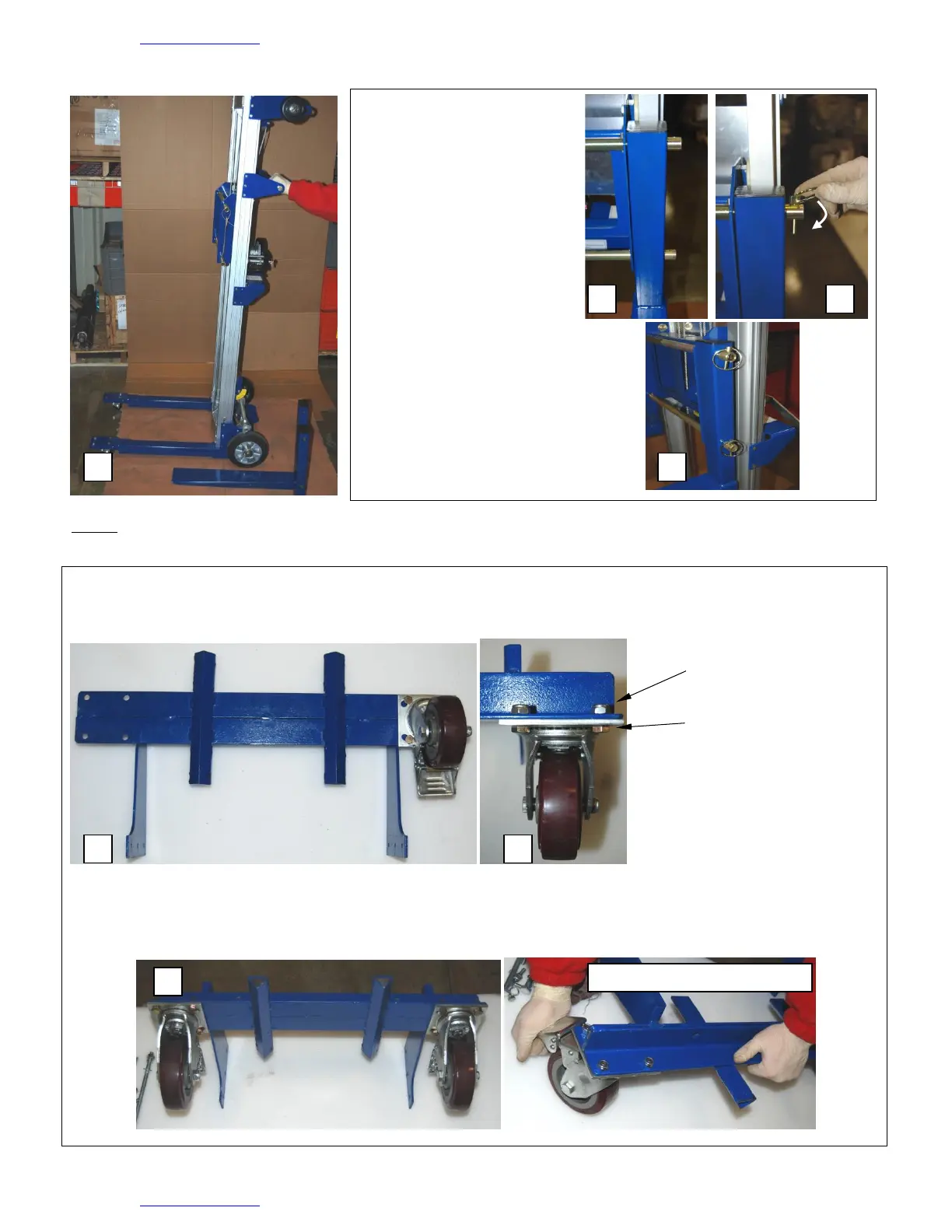

Step 3U: Attach the forks to the carriage.
UStep 4U : Turn the winch handle counterclockwise to lower the forks. Lower the forks until they are a few
inches above the support legs (22), and then push the lifter to the desired location.
Counterbalanced lifters (A-Lift-CB):
UStep 1U : Attach the 5 inch swivel casters (19) to the counterweight base weldment (20).
UStep 2U : Attach the weldment to the main assembly.
Grasp the
operator handle
(1) with one
hand; turn the
winch handle
clockwise with
the other hand.
Raise the
carriage (10) to
a comfortable
work height.
a
b
c
d
b. Align the holes in the
forks with the carriage
cross- bars (11); then push
the forks until they contact
the carriage. Note: It may
be necessary to tap the
forks into place with a
rubber mallet. NOTE: Forks
shown installed right side
up, but they can also be
installed upside down (.
c. Slide fork retaining pins
(25) through the holes in
each of the carriage
crossbars.
d. Lock the pins into place
by swinging the ring portion
of each pin downward
a
Turn the weldment over so that
the underside faces upwards.
Align the casters with the bolt
holes in the weldment.
Drop bolts through each of the
holes. Secure each bolt with a
lock nut. Tighten all of the
connections with a pair of
wrenches.
b
Lock nut
Bolt
a
b. Lock both of the casters
