Table of Contents Rev. 1/29/2024 A-LIFT, MANUAL
Table of Contents Copyright 2023 Vestil Manufacturing Co. Page 5 of 15
Item
Description
Part No.
Quantity
Item
Description
Part No.
Quantity
1
Operator Handle
A-Lift-1
1
18
Adjustable Leg (-CB
counterweight base
models)
A-Lift-CB-18
2
2
Loading Wheels
A-Lift-2
2
19
5 inch Swivel Caster with
brake
A-Lift-CB-19
2
3
3a
Upper casting
Inner frame pulley (large)
A-Lift-3
A-Lift-3a
1
1
20
Counterweight Base
A-Lift-CB-20
1
4
4a
Large Pulley
Large cable anchor bolt
& nut
A-Lift-4
A-Lift-4a
2
3
21
Caster
A-Lift-R-21
2
5
5a
Cable (Standard Units)
Cable (EHP Units)
A-Lift-5
A-Lift-EHP-5
1
22
Legs - Standard base
(R models)
A-Lift-R-22
2
6
Telescoping Inner Mast
Frame (only HP & EHP Units)
A-Lift-6
1
23
Solid Rubber Wheel
A-Lift-23
2
7
Mast Frame
A-Lift-7
1
24
Brake (optional)
A-Lift-24
1
8
Decal Plate
A-Lift-8
1
25
Fork Lock Pin
A-Lift-25
4
9
10 in. Pneumatic wheel
(optional)
A-Lift-9
2
26
Winch Mounting Bracket
A-Lift-26
1
10a
10b
Carriage rollers 30x41
(EHP models) Carriage
rollers 33x55
A-Lift-R-10a
A-Lift-R-10b
4
4
27
27a
27-SPG
Winch
Winch Handle
Winch Spring
A-Lift-27
A-Lift-27a
A-Lift-27-SPG
1
1
1
11
Fork Mounting Tube
A-Lift-11
2
28
Not Available
N/A
N/A
12
Fork
A-Lift-12
2
29
Deck (optional)
A-Lift-Deck
1
13
Adjustable Leg (Straddle
base)
A-Lift-S-13
2
30
[-S models with 4-point
casters]
4in. caster – option A
5in. caster – option B
A-Lift-29A
A-Lift-29B
14
Lower casting
A-Lift-14
1
31-32
Not Available
N/A
N/A
15
Leg Lock Pin
A-Lift-CB-15
2
33
Pivoting carriage latch
A-Lift-33
1
16
Caster
A-Lift-S-16
2
34
34a
Small pulley
Small pulley bolt & nut
A-Lift-34
A-Lift-34a
1
1
17
4 inch Fixed Wheel
A-Lift-CB-17
2
35
Operator handle bracket
A-Lift-35
2
36
Load wheel bracket
A-Lift-36
2

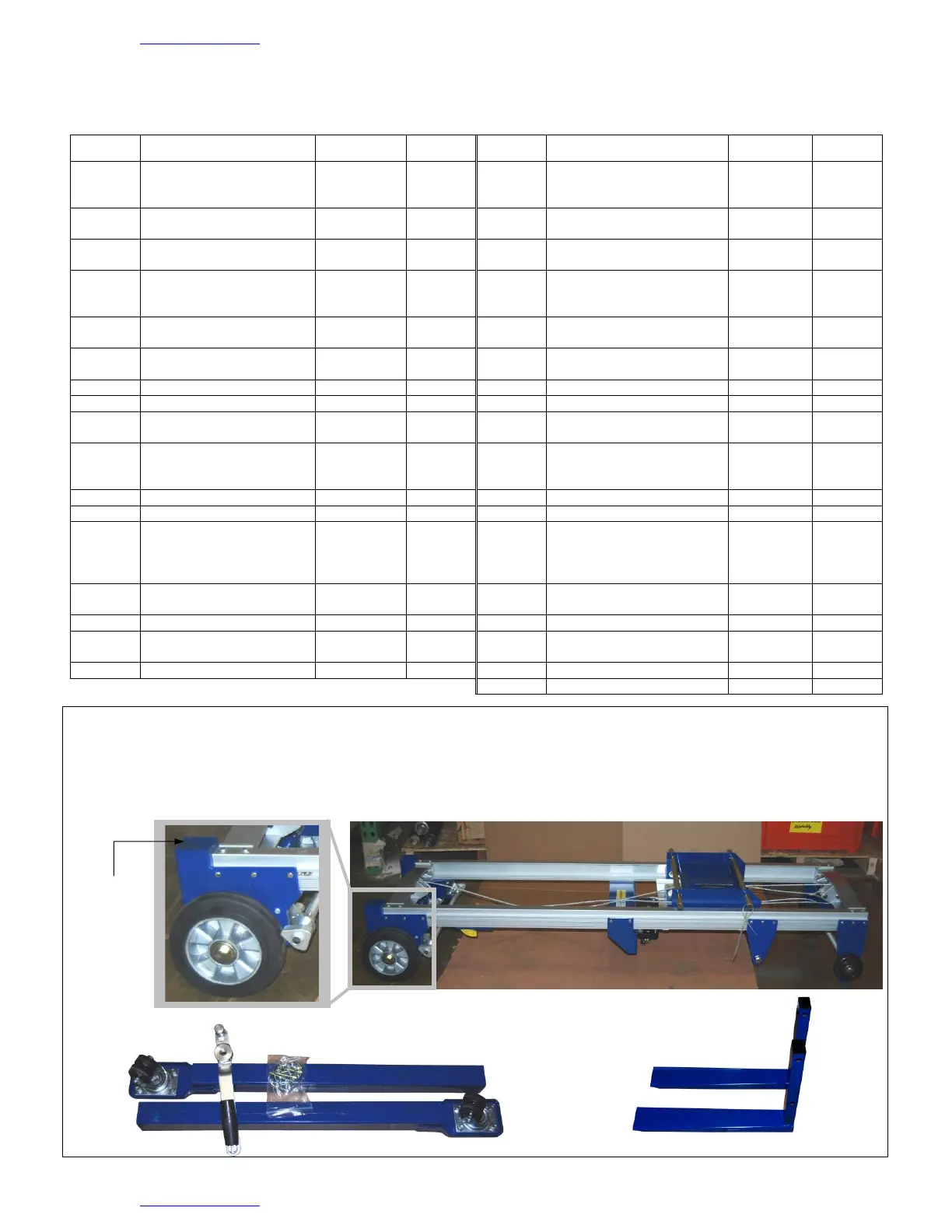

ASSEMBLING THE A-LIFT
Vestil ships winch lifts to its customers in a mostly assembled form. The minimal assembly that is required
differs by model, so follow the directions that correspond to your lifter.
If you purchased an A-LIFT-R or A-LIFT-S, you will receive 3 pieces:
U
1) Main Assembly
2) Box 1 contains: standard support legs
(2), fork retaining pins (4), winch handle
(1).
3) Box 2 contains:
forks (2).
Support
leg
receivers
Parts List for Fig. 1A
“Standard Units” refers to A-Lift-R, -S, & -CB models; “HP Units” means A-Lift-R-HP, -S-HP, and -CB-HP models; “EHP Units”
indicates A-Lift-S-EHP and –CB-EHP models.
