EN - 19
4. USE OF PRODUCT
4.1 Use of gas burners
Ignition of the burners
The position symbol above each control knob
indicates the burner that the knob controls.
Manual Ignition of the Gas Burners
If your appliance is not equipped with an
ignition aid, or in case there is a failure in the
electric network, follow the procedures listed
below.
For Hob Burners: Push in the knob of the
burner you wish to ignite and keep it pressed
while turning it anti-clockwise until the knob is
in the ‘maximum’ position. Continue pressing
the knob and hold a lit match, taper or other
manual aid to the upper circumference of the
burner. Move the ignition source away from the
burner as soon as you see a stable flame.
Electrical ignition by control knob
Push in the knob of the burner you wish to ignite
and keep it pressed while turning it anti-clockwise
until the knob is in the 90 degrees position.The
microswitch under the knob will create sparks
through the spark plug for as long as the control
knob is pressed. Press the knob until you see a
stable ame on the burner.
Flame safety device
Hob burners
Hobs equipped with a flame failure device
provide security in case of an accidentally
extinguished flame. For this reason, during
ignition, keep the knob pressed until you see
stable flames.
Hold down the control for approximately 10 to
15 seconds after the burner has lit. Releasing
the control too soon will extinguish the flame.
If such a case occurs, the device will block
the burners gas lines and will avoid any
accumulation of unburned gas. Wait 90
seconds before re-igniting an extinguished gas
burner.
4.2 Hob Controls
Hob burner

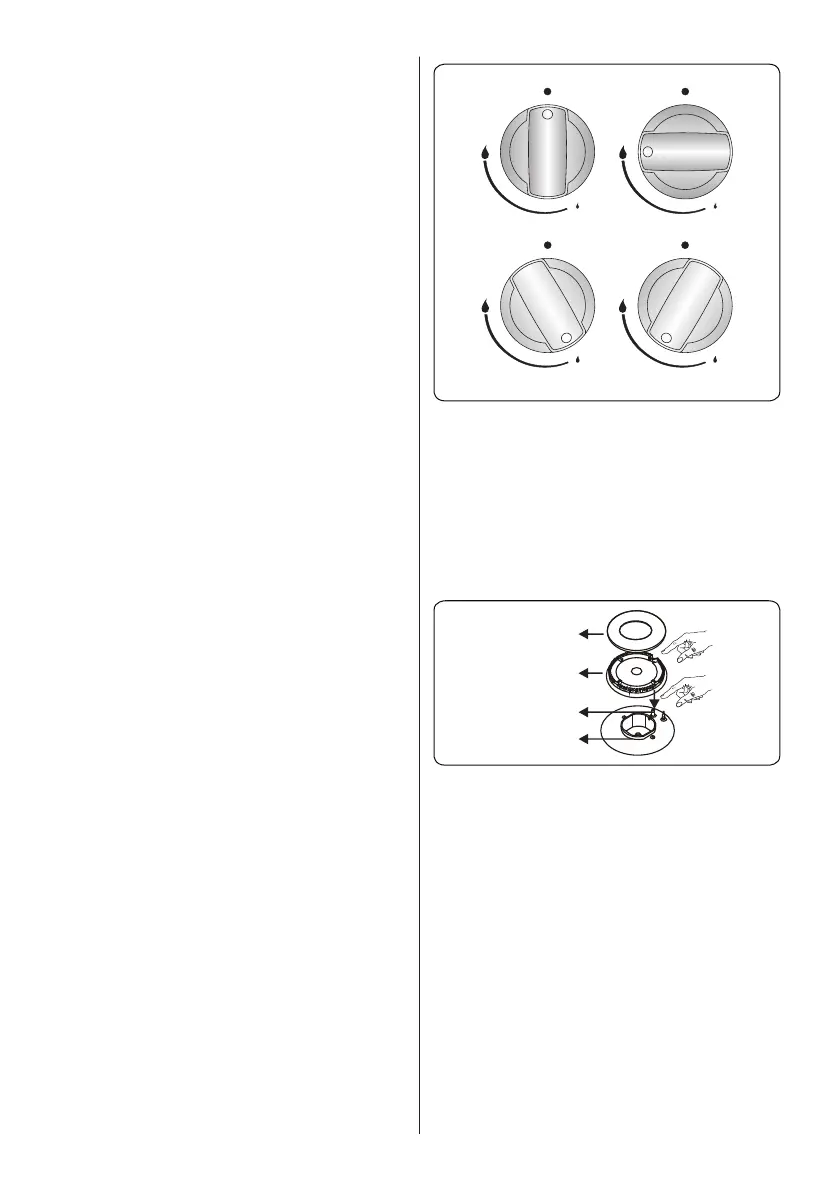

The knob has 3 positions: off (0), maximum
(big flame symbol) and minimum (small flame
symbol). Ignite the burner with the knob in
the 'maximum' position; you can then adjust
the flame length between the 'maximum'
and 'minimum' positions. Do not operate
the burners when the knob is between the
'maximum' and 'off' positions.
OFF position
MAX position
MIN. position MODULATE
After ignition, visually check the flames. If you
see a yellow tip, lifted or unstable flame, switch
the gas flow off, then check the assembly of
burner caps and crowns once they have cooled.
Make sure there is no liquid in the burner caps.
If the burner flames go out accidentally, switch
the burners off, ventilate the kitchen with
fresh air and wait at least 90 seconds before
attempting re-ignition.
Cap
Crown
Spark
plug
Burner
cup
To switch the hob burners off, turn the hob
burner knob clockwise to the ‘0’ position or so
that the marker on the hob burner knob points
upwards.
Your hob has burners of different diameters.
You will find that the most economical way
of using gas is to choose the correct size gas
burner for your cooking pan size and to bring
the flame to the 'minimum' position once
boiling point is reached. We recommend that
you always cover your cooking pan to avoid
heat loss.
To obtain maximum performance from the
main burners, we suggest you use pots with
the following flat bottom diameters. Using pots
smaller than the minimum dimensions shown
below will cause energy loss.
